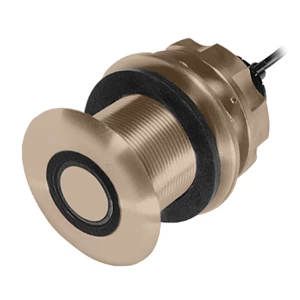

Furuno ST-03-MSB Bronze Thru-Hull Temperature Sensor

Quick and accurate

The Furuno ST-03-MSB Bronze Thru-Hull Temperature
Sensor responds quickly and accurately to temperature
changes. The bronze button on the sensor’s face and the specialized
fast-response thermistor provide a five-second time constant and
plus or minus 0.3 degrees C accuracy. This Smart Sensor can output
precision-temperature data to a fishfinder, chart plotter, digital
display, or computer. It is ideal for commercial and sportfishing
applications as it can help skippers detect thermal boundaries and
eddies which attract bait concentrations and game fish.

Furuno ST-03-MSB Bronze Thru-Hull Temperature Sensor
Features:

• Airmar B17 Housing Style Transducer
• High-Precision Fast Response Temperature (0.01
  resolution)
• Smart Sensor
• Bronze Housing
• Retractable insert with valve
• 6-Pin Connector
• 9-Metre Cable

Furuno ST-03-MSB Bronze Thru-Hull Temperature Sensor
Specifications:

• Output: NMEA 0183
• Temp Range: 0 degreesC to 30 degreesC (32 degreesF to 86
  degreesF)
• Type Thermistor: 10,000 ohms
• Usable Shaft Length: approx. 55 mm (2.18)
• Supply Voltage: 8.4 VDC to 31VDC
• Supply Current: 15 mA maximum

Furuno ST-03-MSB/Airmar B17 Bronze Thru-Hull Temperature Sensor
Brochure
