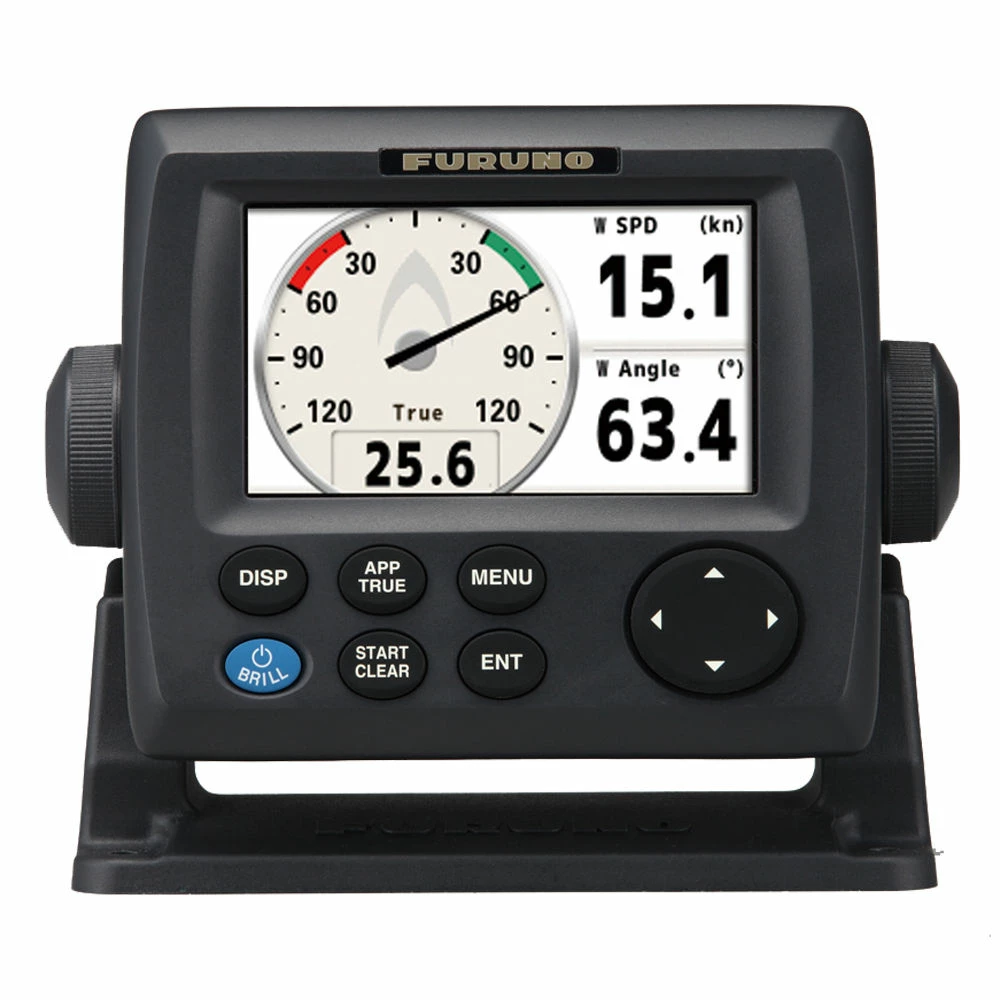

Furuno RD-33 4.3in LCD Colour Navigational Data Organiser NMEA0183/2000

Display nav data easier than ever

If you’re looking for the perfect way to display data from your
interfaced equipment such as GPS, chartplotter, radar and fish
finder then the Furuno RD33 Remote Display has got
you covered. Thanks to its bright, high-resolution 4.3” LCD screen,
the RD33 can display a wide variety of navigation data in numerical
and graphical form which are easily readable from a distance. You
can also freely select which data to display on the screen,
choosing from seven patterns of customized display settings, from a
full-screen that shows large numbers to a 6-way split screen
presentation.

The RD33 can also be a standalone precision depth gauge when
connected to Furuno’s NMEA2000 Smart Sensors. It understands both
NMEA0183 and NMEA2000 data and can do protocol conversions both
ways so you can use the RD33 to display and convert existing
NMEA0183 GPS, Navigation, Wind, and Depth Sensors over the NMEA2000
protocol. With its packed features, the Furuno RD33 will be a
perfect addition to your current marine setup.

Furuno RD33 Remote Display Features:

• Sunlight viewable 4.3″ colour LCD display
• Enhanced data legibility thanks to large characters and high
  resolution display
• Customizable display format from full-screen to a 6-way split
  screen presentation
• Supports both CAN bus and NMEA0183 interfaces
• Has two independent CAN bus input and output ports incorporated
  for daisy chain networking
• Internal NMEA0183/CAN bus conversion capability
  available
• Simultaneous alarm monitoring capabilities for Water Temp,
  Depth, Speed, Arrival, Anchor, XTE, Trip, Odometer, Timer and
  Countdown Timer, Roll & Pitch, Wind Speed, Wind Direction, and
  Battery

Furuno RD33 Remote Display Specifications:

• Display: 4.3″ color LCD
• Resolution: 480 (V) x 272 (H)
• Interface: NMEA0183 (ver. 2.0, 3.0): 1port, CAN bus: 2 ports
  (male/female)
• Power Supply: 15 VDC : LEN6 (CAN bus), 12-24 VDC : 0.2-0.1 A
  (Non CAN bus)

Furuno RD33 4.3″ Color LCD Remote Display User Manual
