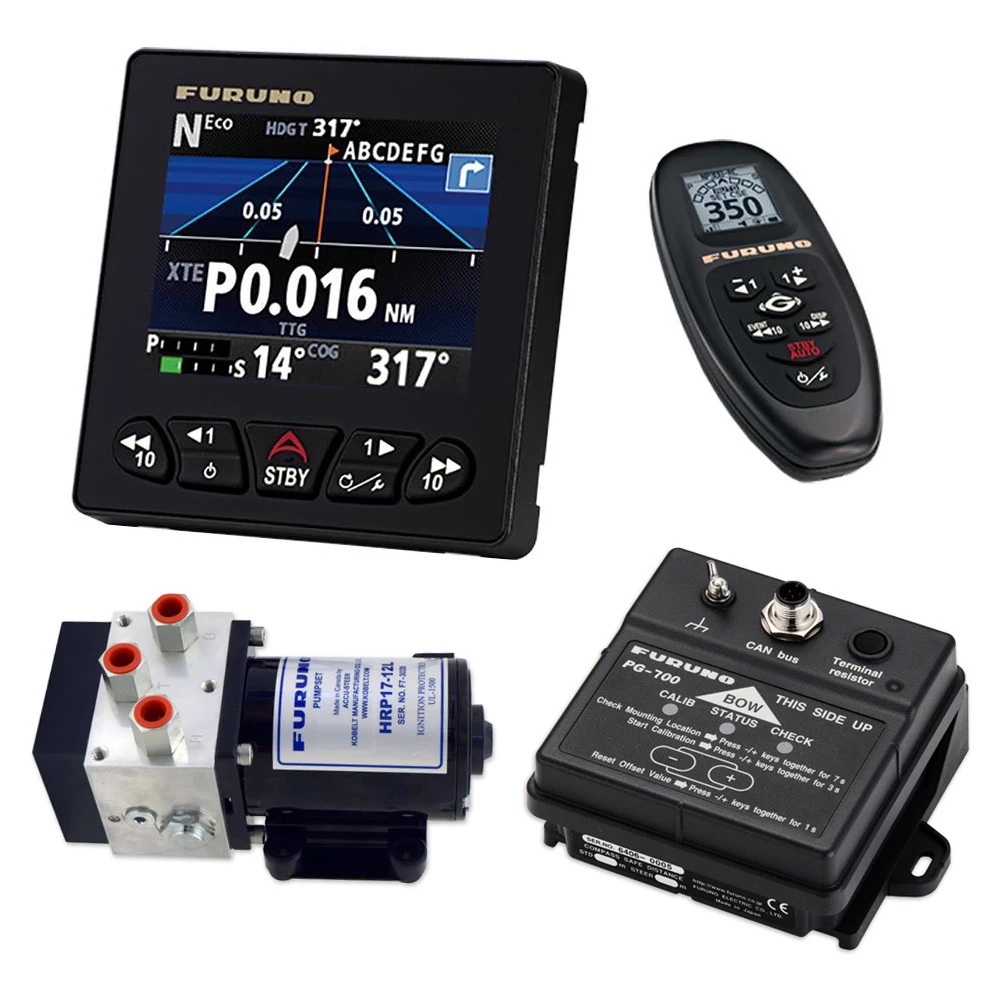

Furuno NavPilot 300 Autopilot System With Gesture Controller Incl Hydraulic Pump And PG700 Heading Sensor

The coolest way to steer your boat

The Furuno NavPilot 300 Autopilot System is a
revolutionary autopilot. With Fantum Feedback, NavPilot outboard
installations no longer require use of a physical rudder feedback
unit. This results in a streamlined, simplified installation.
Combined with Furuno’s unique adaptive learning technology,
NavPilot 300 provides unmatched outboard Autopilot performance.
Fantum Feedback is designed for planing and semi-displacement
outboard vessels from 24 to 50 feet, with one to four outboard
engines, where it achieves precise course control from slow
trolling to speeds of well over 60 knots.

The NavPilot 300/PG includes the PG700 Fluxgate Compass Heading
Sensor with magnetic field distortion correction, providing highly
accurate and stable heading information.

Gesture Control – just push, point and shoot!
The Gesture Controller is a revolutionary and unique way to steer
your boat remotely. By using Bluetooth signals, it’s possible to
control the Autopilot from anywhere on the boat within 10 metres.
Just push, hold the button, point to the desired heading and
release to let the Autopilot redirect the boat!

Versatile Display Modes on a vivid 4.1″ Colour LCD
Display
The SABIKI mode lets the autopilot control while you are drifting
astern, so you can focus on fishing instead of steering.
Maintaining heading astern while compensating for wind and tide,
SABIKI mode is uniquely tailored for Sabiki fishing, jigging and
bottom fishing.

Other display modes include Furuno’s Highway mode, Auto and
Advanced Auto modes, and Fish Hunter mode, where one of four
pre-programmed manoeuvres can be performed around a specified
target at a user selected distance. These include Zig-Zag, Orbit,
Figure 8, or a Spiral manouevre. The Fish Hunter feature can also
be used for Man Overboard (MOB).

Powerful new tools enhance safety and comfort
The optional SAFE HELM and POWER ASSIST features provide a unique
interface to the vessel’s hydraulic hand steering system, providing
unrivaled comfort and control of steering directly from any manual
helm on the vessel. These two modes greatly reduce steering effort
and enhance the safety of your autopilot. The POWER ASSIST mode
incorporates the SAFE HELM concept and provides speed-based, power
assisted steering, which greatly reduces manual helm effort in
maneuvering situations. POWER ASSIST is a unique helm-activated
assisted steering feature that can augment or replace separate
electric and power-robbing, engine-driven power steering systems on
many vessels. POWER ASSIST reduces steering system complexity and
costs while increasing economy. SAFE HELM and POWER ASSIST modes
will require the optional FPS8 Power Steering Module and the supplied Furuno PR0612 Hydraulic Reversing Pump

Furuno NavPilot 300 Autopilot System
Features::

• Versatile display modes on a vivid 4.1″ colour LCD
  display
• Self learning and adaptive software
• Fantum Feedback
• Easy installation and Smart network-based system
  configuration
• Waterproof processing unit (IP55) and control unit
  (IP56)
• Safe Helm and Power Assist
• Supplied with Furuno PR0612 Hydraulic Reversing Pump 0.6LPM 12V

Furuno NavPilot 300 Autopilot System
Specifications:

Control Unit
Display: 4.1″ Colour LCD
Effective Display Area: 85.2 (W) x 85.2 (H) mm
Pixel Number: QVGA (320 x 240)
Backlight: 700 cd/m2 typical

Processor Unit

• Steering modes: STBY, Auto, Dodge, NFU (Non-follow up), Turn,
  Advanced auto*, Navigation*, FishHunterTM*, Override
  *external data required
• Sea Condition Adjustment:
  Auto/Manual-Calm/Moderate/Rough
• Alarm: Deviation alarm, Watch alarm

Interface

• Ports: NMEA2000 x1, CAN bus x1 (DBW control), Control signal
  x3, Bluetooth
• Input: 059392/904, 060160/416/928, 061184,
  065240,126208/464/720/992/996, 127237/250/258,
  128259,129025/026/029/283/284/285/538,
  130577/818/821/827/841
• Output: 059392/904, 060928, 126208/464/720/993/996/998,
  127237/245, 130816/821/822/823/827/841

Waterproofing

• Processor Unit: IP55
• Control Unit: IP56
• Gesture Controller: IP65/67

Others

• Power Supply
• Processor Unit 12-24 VDC 0.22 A max.
• Control Unit 15 VDC 0.29 A max.
• Gesture Controller 3 VDC, Dry cell battery (AAA, 2 pcs)
