Furuno NavNet TZTouch3 9in GPS/Fishfinder With NZ Chart

New Addition to NavNet TZtouch3 Series

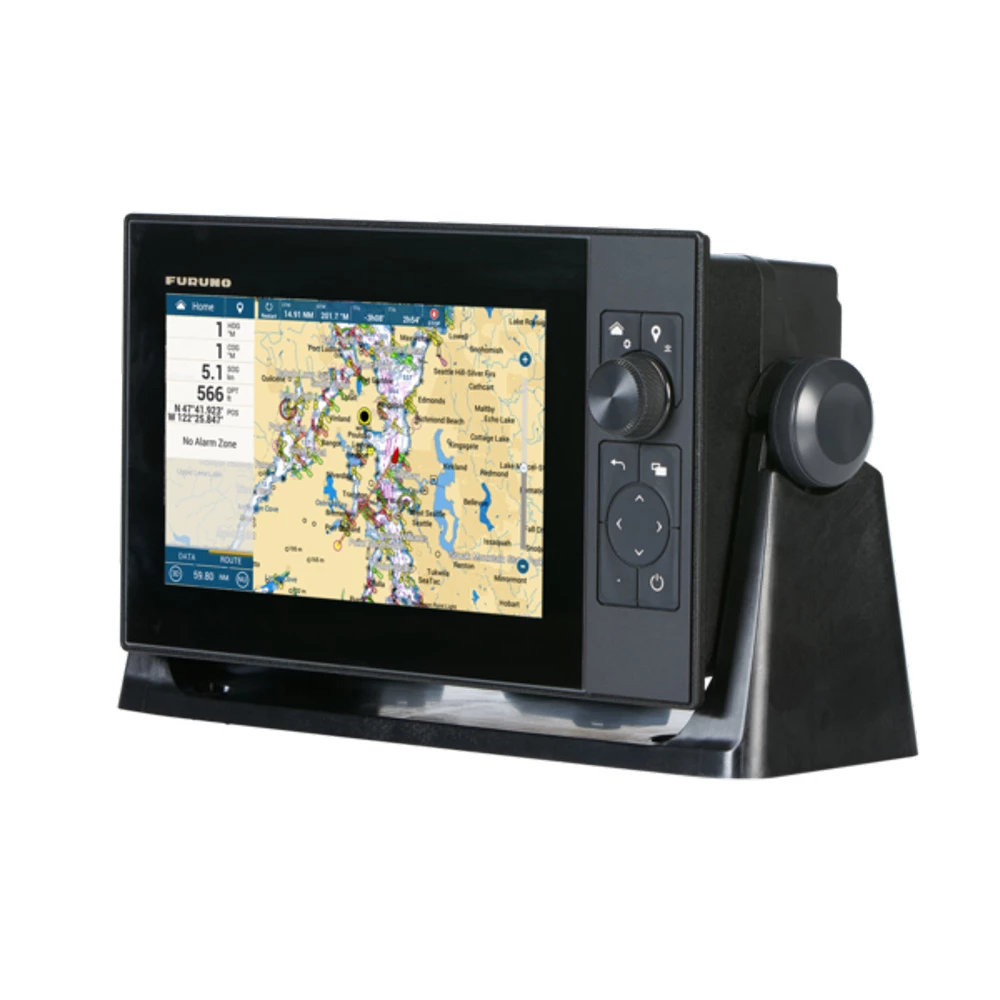

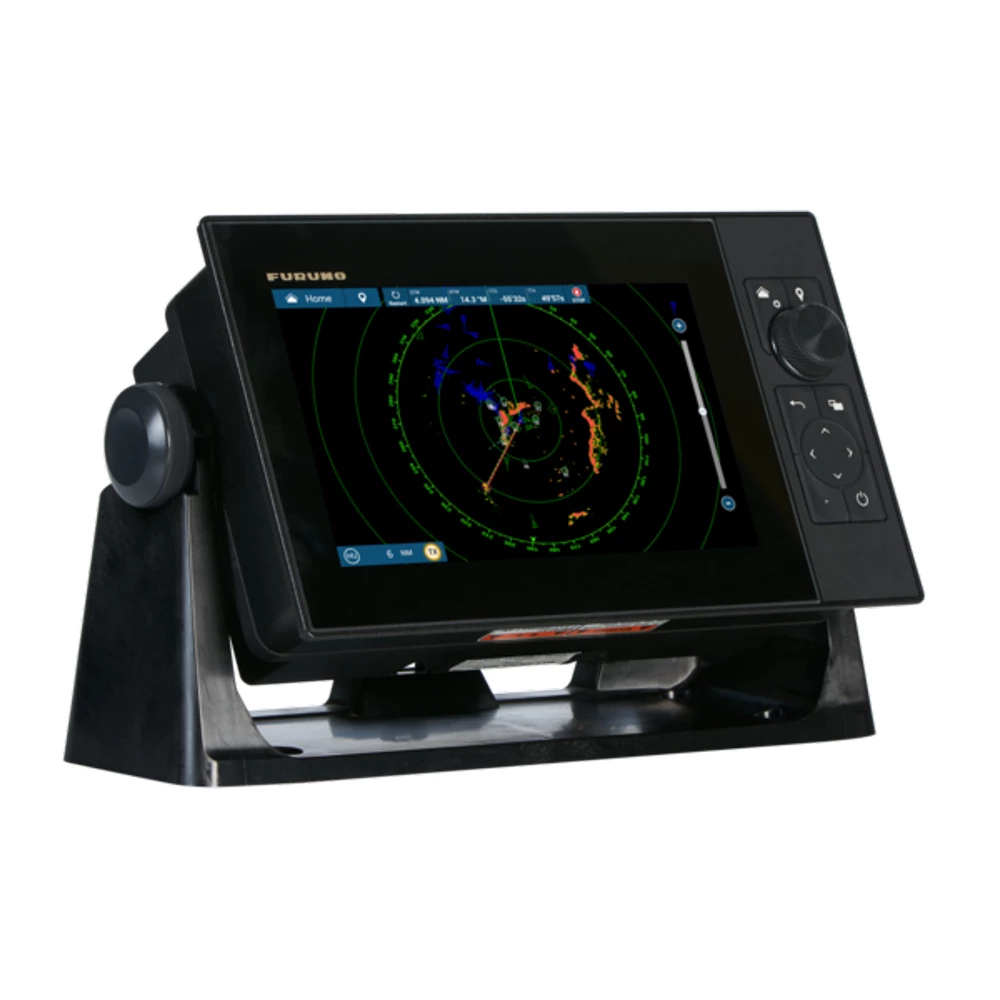

The 9′ Hybrid Control TZT9F is an IPS multi touch display with an integrated control panel, including Furuno’s intuitive RotoKey and dedicated physical buttons to complement NavNet TZtouch3’s multi-touch controls.

Rest your hand on the RotoKey as you crash through the waves, and navigate easily to your charted destination !

Features:

• More powerful quad-core processor for lightning-fast response
• Built-in Single Channel 1 kW TruEcho CHIRP
• Pin Lock feature on start up
• Interface with an extensive range of sensors including new Doppler Radar models, DFF3D Multi beam, Autopilot and new Compass SCX20
• 4 Way Screen Split allows for further customisation

Never lose waypoints, routes or settings again with TZ Cloud

NavNet TZtouch3 keeps data secure and easy-to-access on multiple platforms with the TZ Cloud system. TZ Cloud service allows you to back up and store your waypoints, routes, and event marks to the TimeZero cloud server, as well as synchronise and edit them on your MFDs, TimeZero PC software, and the TZ iBoat app for iPad. Use the new TZ First Mate app to drop an event mark with each big catch and include the species, length and weight, and even take a picture with your phone, then access the information anywhere.



Fishing Technology

FIND MORE FISH WITH TruEcho CHIRP

TZT9F incorporates a powerful internal single channel 1kW TruEcho CHIRP or CW Fish Finder. TruEcho CHIRP Fish Finders transmit pulses across a wide range of frequencies, allowing Furuno’s superior digital signal processing (DSP) to display fish and structure targets with unparalleled clarity, accuracy and resolution.

Heaving Compensation

Heaving correction is available in combination with a Satellite Compass such as  or SC-33.

When switched on Heaving compensation automatically removes vessel motion from the Fish Finder screen in rough seas. This is usually seen as a ‘Saw Tooth’ distortion of the bottom image, due to vertical vessel motion even though the bottom is actually flat. It greatly enhances bottom fishing and bottom trend analysis without sacrificing critical details as can occur when using a traditional Bottom Lock Echo Sounder Mode. Only a compatible satellite compass can provide vertical vessel motion information to remove this distortion.



Bottom DISCRIMINATION display

Bottom Discrimination provides detailed information about knowing the make-up of the seabed and categorising it into four different categories: Rocks, Gravel, Sand and Mud. The make-up of the seabed can be tremendously helpful information when looking for fishing grounds, as well as for finding suitable anchorage.
Feature works with certain transducers. Not compatible with CHIRP, check to ensure your transducer is compatible.

ACCU-FISH fish size analyzer

The ACCU-FISH algorithm analyzes echo returns in order to compute individual fish size. The algorithm is capable of calculating fish size ranging from 10 cm up to 199 cm long. Fish depth can also be displayed.


More power to see 120 degreesPORT-STARBOARD and in 3D

Connect an optional DFF3D Multi Beam sonar for the ultimate fishing machine!

The  operates at 165 kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40 degrees ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

NEW SENSORS

Furuno has releases a huge array of new sensors to complement the Navnet system for 2020 including the industry Class leading radars.

Furuno’s new solid state power-packed 100 and 200-Watt NXT Solid-State Doppler Radars deliver the highest-powered solid state radars available, combined with industry leading SNR (signal to noise ratio) circuitry, no competition gets close to Furuno’s radar performance. Functions such as Fast Target Tracking of up to 100 ARPA targets, Bird Mode, Rain Mode, and Target Analyzer, where dangerous Radar targets are shown in red, alert navigators to the current situation at-a-glance. Furuno’s selection of Dome and Open Array Radars in both magnetron and Solid-State configurations ensures that there is a Radar to meet the needs of every vessel.

Additionally this is backed up by a Pair of new Satellite compasses and which use 4 GLONASS, GPS antennas for accurate 10Hz position, Heading and stabilization, including heave compensation for Furuno sounders and sonars.



Specifications:

• Display Type: (IPS) LCD
• Screen Size: 9′
• Screen resolution: HD 1280×720
• Memory Capacity: 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route)
• Data Type: NMEA2000 (1 port), NMEA0183 (1 Serial output port)
• LAN: 1 Ports (100 BASE-TX)
• USB: 1 Port (USB2.0) for control unit
• Input: No Ports
• Power: 12-24 VDC

See brochure for full list of specifications
