Furuno NavNet TZTouch3 16in GPS/Fishfinder TM275 Package

All the power you need and more

The Furuno NavNet TZTouch3 16in GPS/Fishfinder TM275 Package combines powerful and easy to use equipment to give you the clearest view of the ocean. It features the Furuno NavNet TZTouch3 16in GPS/Fishfinder and the Airmar TM275LH-W Wide Beam Transom Mount CHIRP Transducer. True power in your hands.

Package includes:

• Furuno NavNet TZTouch3 16in GPS/Fishfinder
• Pre-loaded NZ chart
• Airmar TM275LH-W Wide Beam Transom Mount CHIRP Transducer

The GPS/Fish Finder

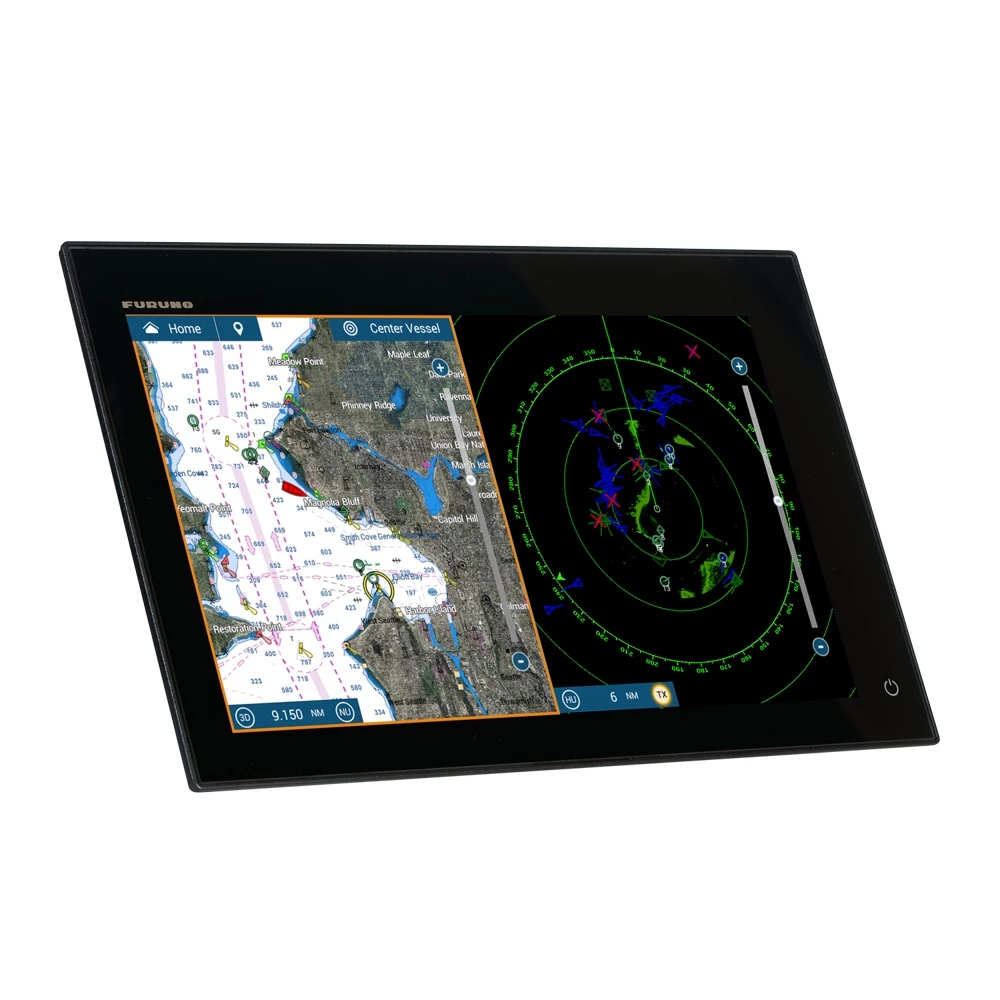

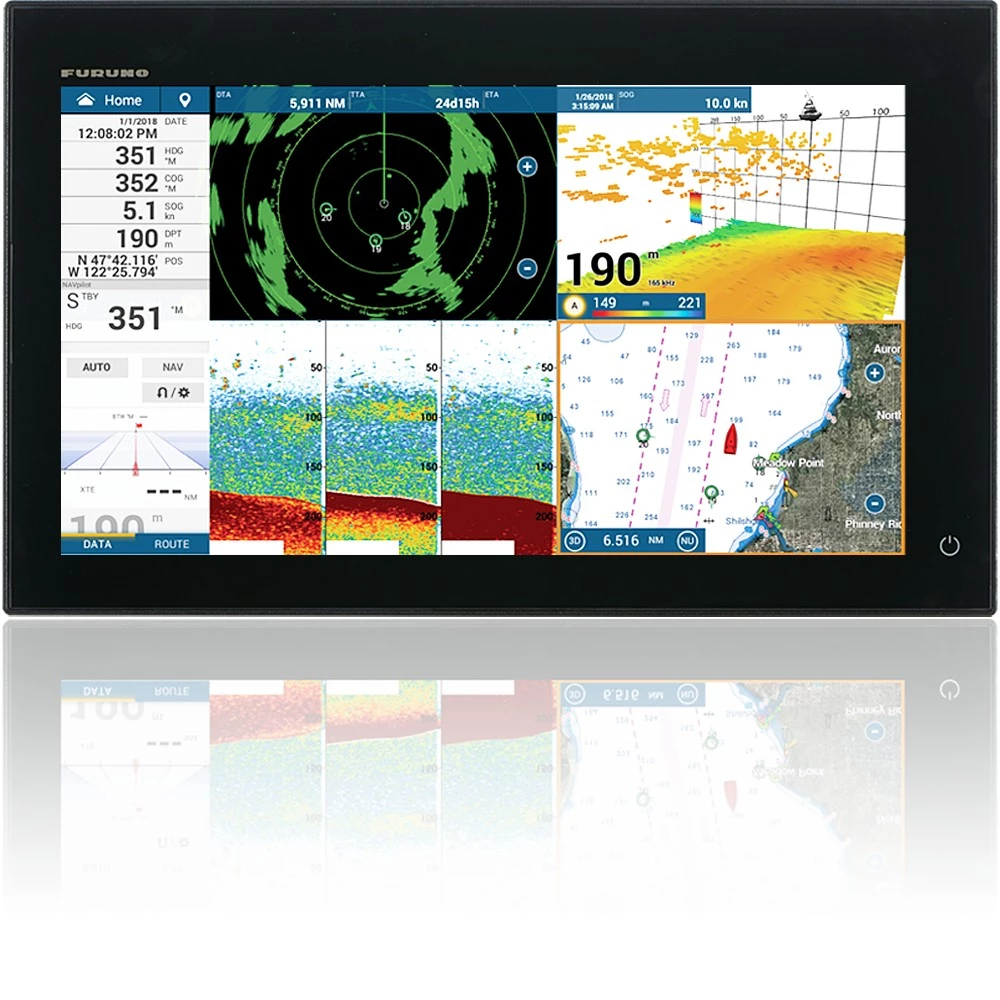

Go on a power trip with the most powerful MFD series available! The lightning-fast Furuno NavNet TZTouch3 16in GPS/Fishfinder features a sleek edge-to-edge glass display that delivers ultra-clear images from any angle. This MFD will not only make your helm functional but will also add style and ergonomics. Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP and CW Fish Finder.

Easy to use

Finding your happy place shouldn’t be difficult. Furuno has worked tirelessly to make the TZtouch3 the easiest MFD on the market to use. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

TimeZero technology

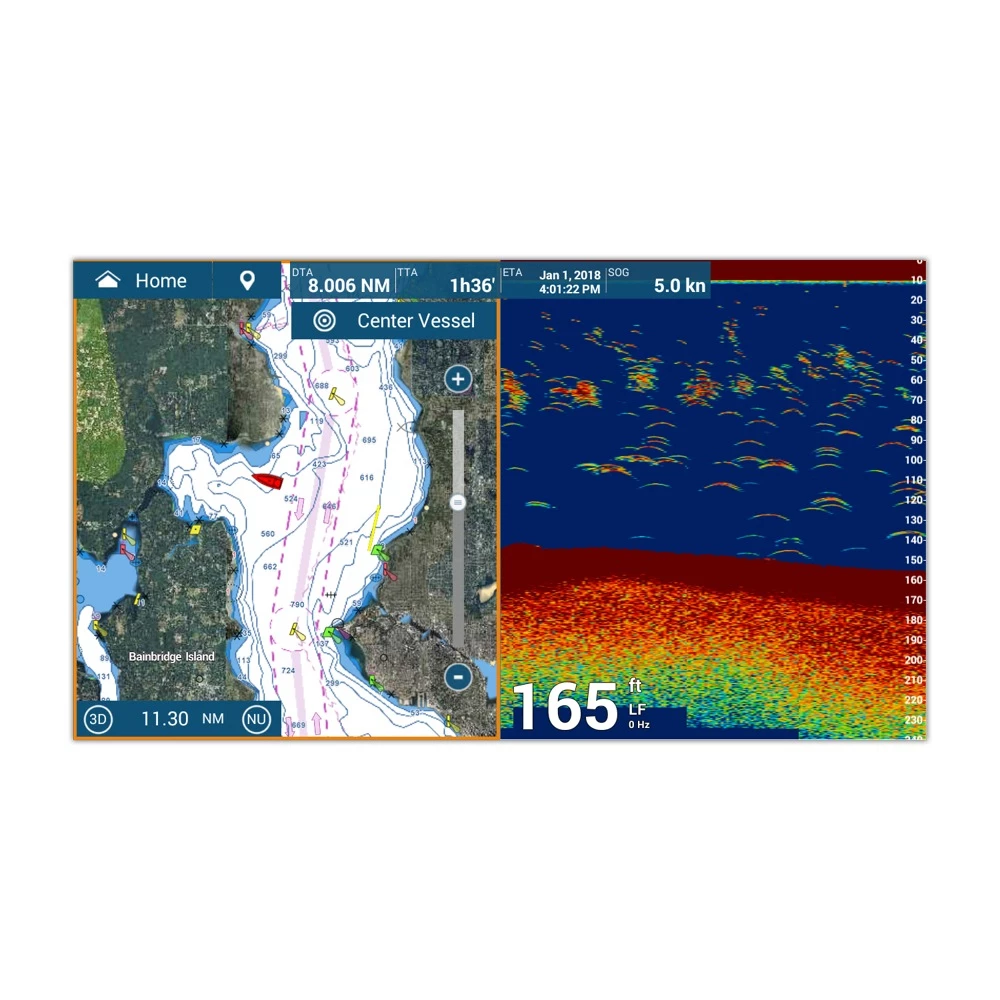

TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth and seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.

PIN code security

Protect your investment and livelihood. The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

TZ Cloud

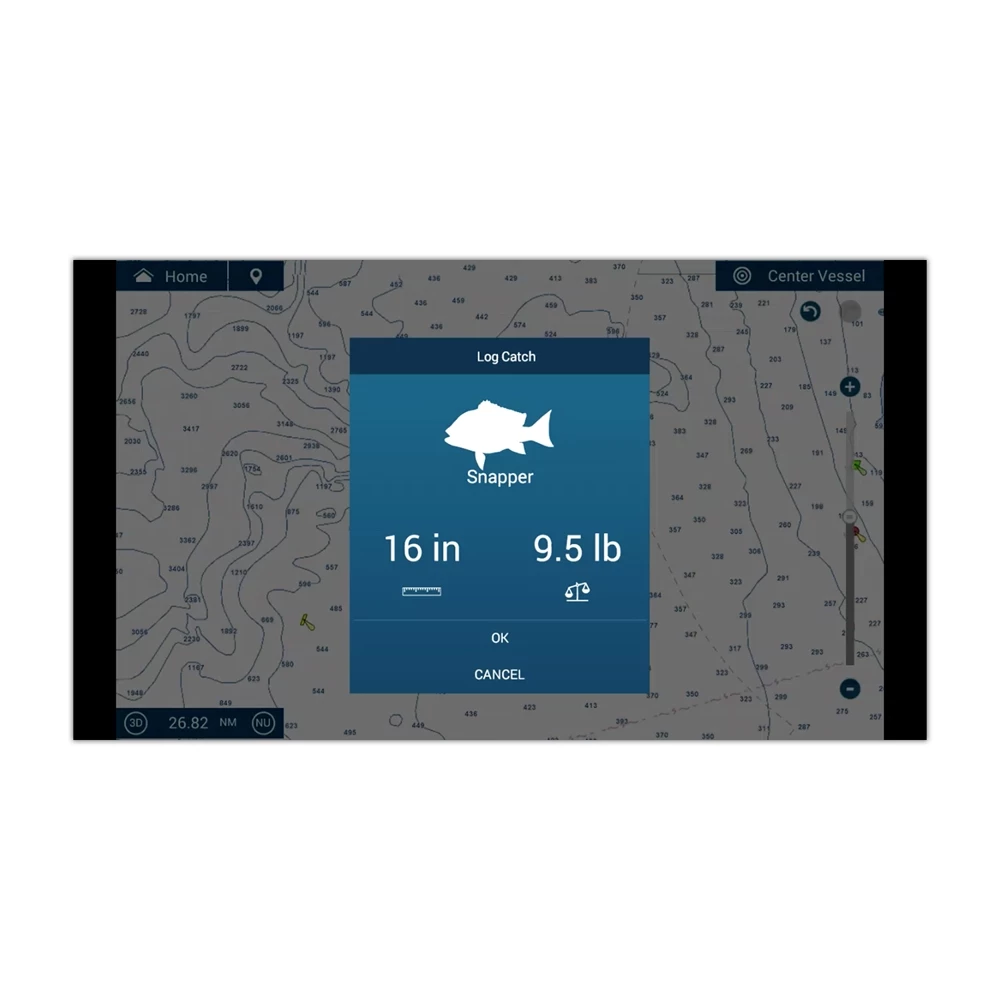

Never lose waypoints, routes or settings again. Create your routes at home using TZ Navigator, a web browser, or TZ iBoat iOS App. Then you can retrieve them from the cloud and download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically and securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data!

Something to CHIRP about

TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, Furuno proudly brings you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP Fish Finder. But if that’s not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!

Fish-It and Drift-It

The Fish-It and Drift-It features, available only from Furuno, help you locate the correct spot to start your drift so you’ll pass right over your fishing point. Tapping on a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multi-Beam Sonar screen, creates a temporary ‘fishing go-to point’ with dynamic range rings, a course line between the point and the boat, and a temporary track line. Now activate Drift-It, an exciting new feature that automatically creates a starting point for the vessel to drift directly over your Fish-it spot. Select a 3-minute, 5-minute, or even a 20-minute drift, navigate to the starting point, and drift to the Fish-it location in the time selected. This is a game-changer for fishermen!

DFF3D Multibeam Sonar

Normal down-sounding Fish Finders have a beam angle of 40-degree or less. But with the DFF3D Multibeam Sonar, you see 120-degrees port-starboard for 200m (650+ ft), giving you an edge over the competition. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the Deep Impact TruEcho CHIRP, you’ll have the ultimate fishing machine!

The DFF3D Multibeam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40-degree ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

PBG (Personal Bathymetric Generator)

Create stunning shaded relief charts on your Furuno NavNet TZTouch3 16in GPS/Fishfinder. Using the DFF3D Multibeam Sonar, PBG (Personal Bathymetric Generator) allows you to create custom high-resolution shaded relief charts of the seafloor. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation. Multiple color palettes are available, including the ability to show contour lines only. The area each ping covers is approximately twice the depth at the time of recording, so at a depth of 100 meters, a 200 meter-wide area is displayed and recorded to your NavNet TZtouch3 MFD.

Build the ultimate Navigation Suite

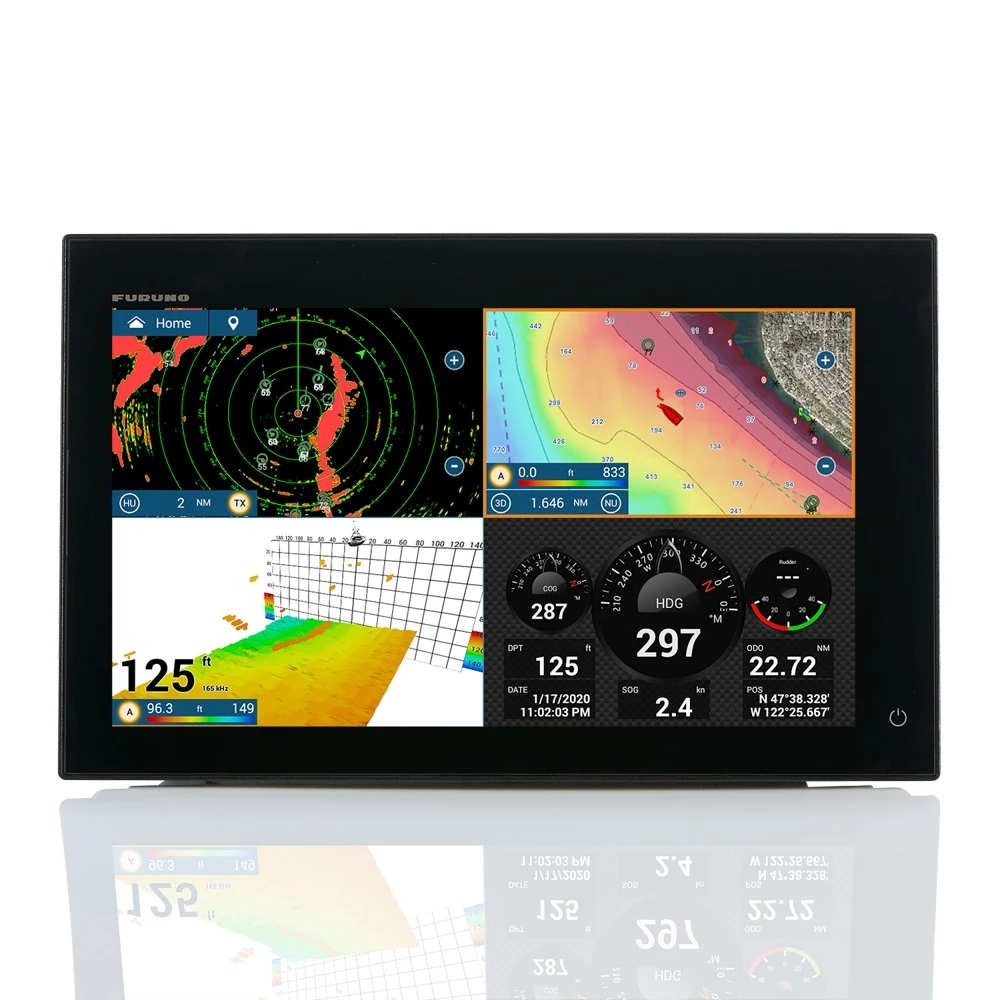

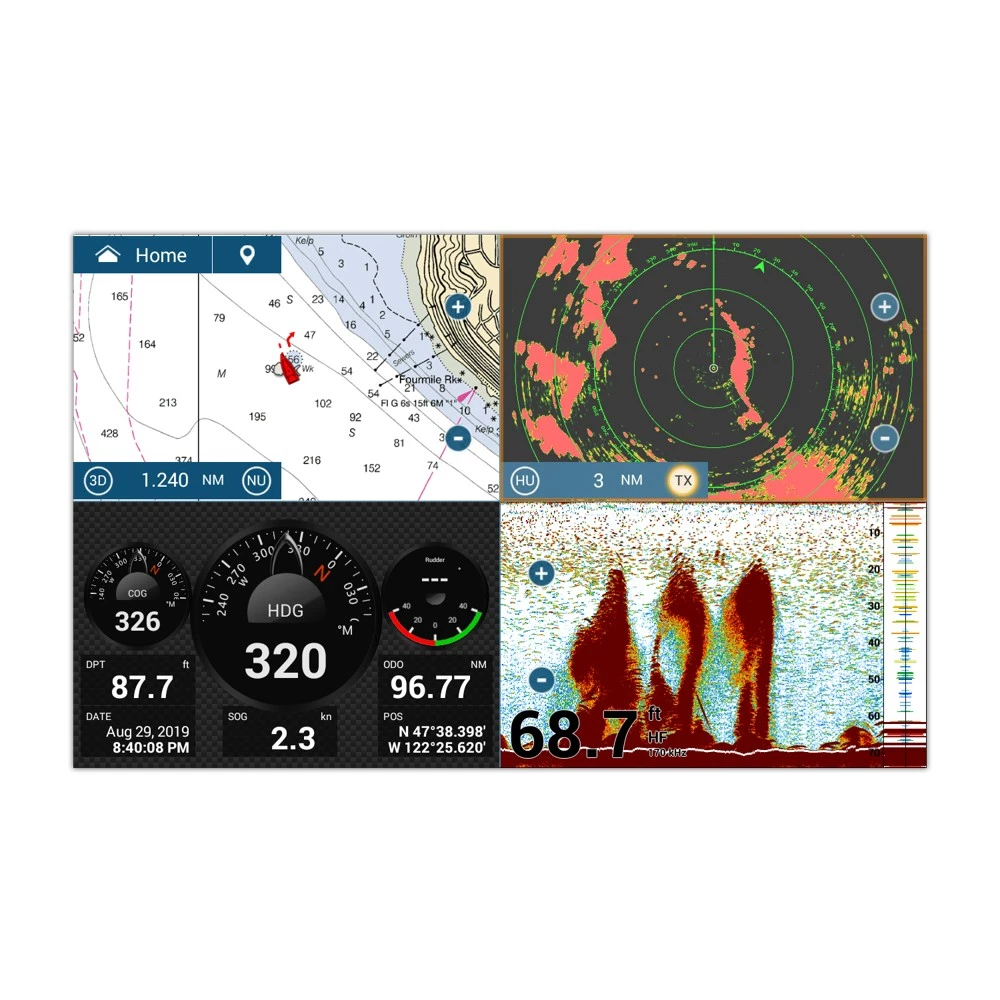

The beauty of NavNet TZtouch3 is its scalability – systems can be as big or small as you need. Add, change or remove AIS, VHF, Compass, Weather and other sensors as needed to dial in your dashboard, whether fishing, cruising or sailing.

The Transducer

Offering a high-frequency range of 150-250kHz and a constant 25-degree beamwidth, the Airmar TM275LH-W Wide Beam Transom Mount CHIRP Transducer is truly broadband at its best. In addition to improved CHIRP-ready performance, this wide beam transducer will let you achieve twice the coverage under your boat.

With a constant 25-degree angle across the entire frequency band, you get vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with other narrow beam transducers. The wide beam format also creates a crisper and larger return on the display.

Improved Beamwidth
Current CHIRP transducers have a narrow beamwidth ranging from 10º to 4º on the high-frequency band. The beamwidth of the new wide beam CHIRP transducers is a constant 25º across the entire frequency band—ultimately delivering more than 2x the coverage under the boat than other CHIRP models.

Furuno NavNet TZTouch3 16in GPS/Fishfinder Features:

• Sleek edge-to-edge glass display to deliver ultra-clear images from any angle
• New, powerful quad-core processor for lightning-fast response time
• Built-in Dual Channel 1kW TruEcho CHIRP and CW Fish Finder
• Easy to use
• Edge-swipe features and single tap menu options
• TimeZero technology
• 3D chart perspective perfect for planning and navigating routes
• PIN CODE security require a four-digit password upon startup, keeping your data safe against theft
• TZ cloud backs up waypoints, routes or settings and stores marks, routes, boundaries, photos, and catch data
• Powerful internal 1kW TruEcho CHIRP Fish Finder
• Deep Impact (DI-FFAMP) high-powered 2kW/3kW amplifier
• Fish-It and Drift-It help locate the correct spot to start your drift
• DFF3D Multibeam Sonar – 120-degree port-starboard for 200m
• PBG (Personal Bathymetric Generator) allows creation of custom high-resolution shaded relief charts of the seafloor
• MapMedia raster and vector chart library

Furuno NavNet TZTouch3 16in GPS/Fishfinder Specifications:

• Model: TZT16F
• Chart type: C-Map or CMOR or Vector or Raster or Satellite Photo or 3D Data
• Display type: Color Multi Touch LCD
• Power usage: 12-24 VDC
• Receiver type: WAAS-GPS or SBAS or GPS
• Display size: 16 inches
• Frequency: CW 50-200kHz or CHIRP 40kHz to 225kHz
• Power output: 300 W or 600 W or 1 kW

Airmar TM275LH-W Wide Beam Transom Mount CHIRP Transducer Features:

• Ideal for marking baitfish and game fish in shallow to
  mid-water depths of 300ft – 600ft
• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth
• High—CHIRPS from 150 kHz to 250 kHz 25° constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus
  everything else in the bandwidth
• Boat Size: 8 m (25’) and above
• Hull Type: Fiberglass or wood
• Urethane transducer housing with stainless steel bracket
• Cable length: 12m
• Bracket included
• Dimensions: 260 x 108mm
• Bracket width: 137mm

Airmar TM275LH-W Wide Beam Transom Mount CHIRP Transducer Specifications:

• Hull Deadrise: Up to 28°
• Acoustic Window: Urethane
• Weight: 4 kg (8.9 lb)

Furuno NavNet TZTouch3 16in GPS/Fishfinder Product Data Sheet
