Furuno NavNet TZTouch3 16” GPS/Fishfinder With NZ Chart

It has all the power you’ve wanted and more

Go on a power trip with the most powerful MFD series available. The lightning-fast Furuno NavNet TZTouch3 16″ GPS/Fishfinder features a sleek edge-to-edge glass display that delivers ultra-clear images from any angle. This MFD will not only make your helm functional but will also add style and ergonomics. Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP and CW Fish Finder.

Package Includes:

• Furuno NavNet TZTouch3 16″ GPS/Fishfinder Unit
• Pre-loaded NZ Chart

EASY to use; because finding your happy place shouldn’t be difficult!

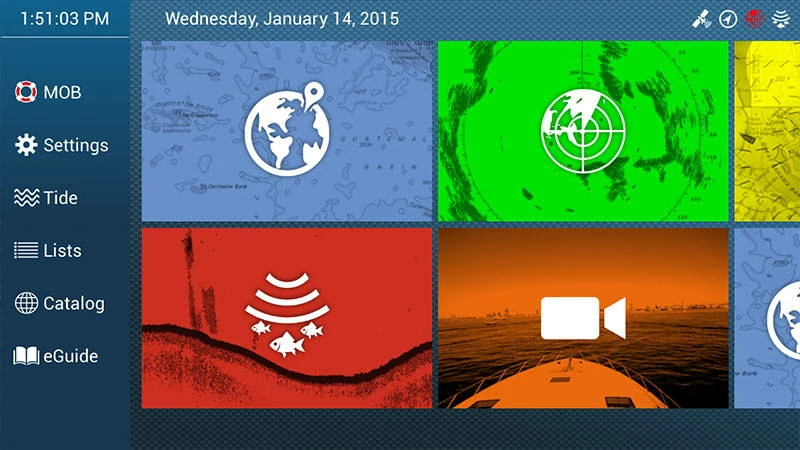

Furuno listened and worked tirelessly to make TZtouch3 the easiest MFD on the market to use… bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

TimeZero Technology is faster than ever before

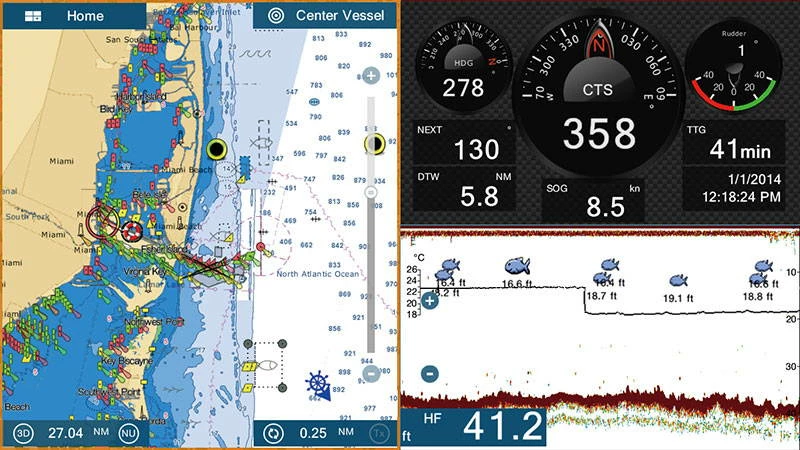

TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth and seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.

Protect your livelihood with new PIN CODE security
The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

Furuno NavNet TZTouch3 16″ GPS/Fishfinder Features:

• More powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1kW TruEcho CHIRPTM and CW Fish Finder
• High-power 2/3/5kW TruEcho CHIRPTM Fish Finder network amp (Connect a 5kW or 10kW transducer using BT-5, power output is 3)

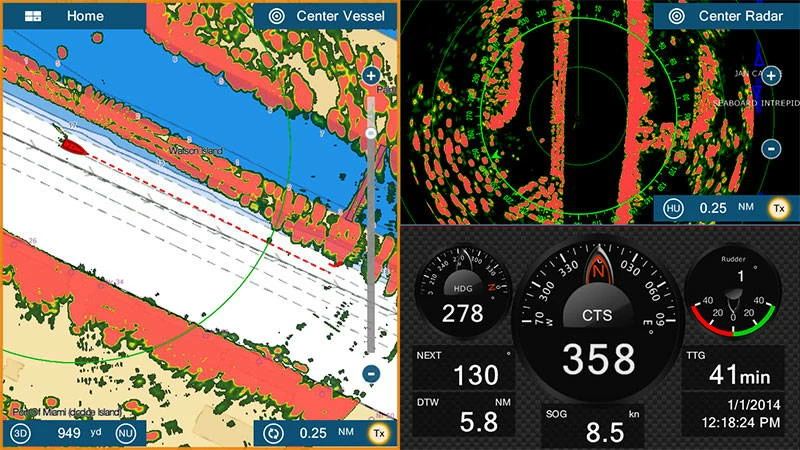

• Power-packed 100W and 200W NXT Solid-State Doppler Radars
• Deep water Multi-Beam Sonar for up to 300m depth and 200m side scan
• Hybrid 16″ display
• Pin Code Lock – require a password to access your TZtouch3 upon startup

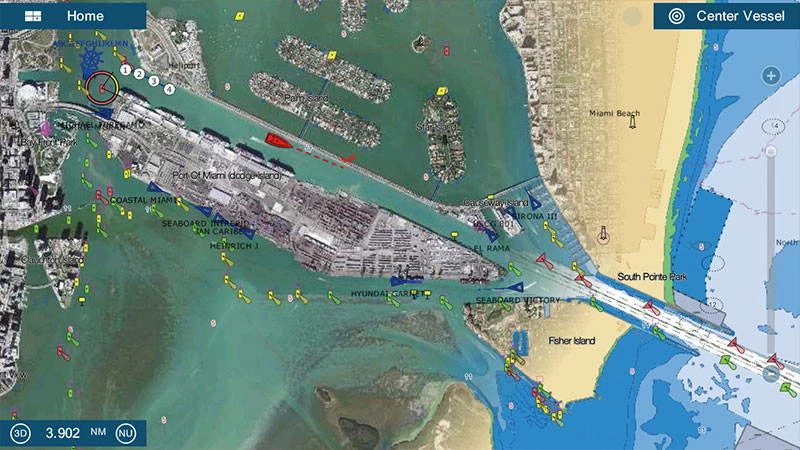

• Chart Type: Vector or Raster or Satellite Photo or 3D Data or C-Map or CMOR
• Display Size: 16 inches
• Display Type: Colour Multi Touch LCD
• Frequency: CW 50-200kHz or CHIRP 40kHz to 225kHz
• Power Usage: 12-24 VDC
• Power Output: 300 W or 600 W or 1 kW
• Receiver Type: GPS or SBAS or WAAS-GPS

Furuno NavNet TZTouch3 16″ GPS/Fishfinder Specifications:

Display Unit

• Type: Colour TFT multi-touch in-Plane Switching (IPS) LCD
• Screen Size: 16″ Wide
• Screen Resolution: FHD 1920 x 1080
• Screen Brightness: 1000 cd/m2 (typical)
• Display Colours: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
• Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish

GPS/WAAS

• Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 MHz)
• Time to First Fix: 100 s (cold start)
• Accuracy: 10m (GPS), 7m (MSAS), 3m (WAAS)
• Position Update Interval: 0.1 s (10Hz)

Chartplotter

• Cartography: MapMedia mm3d chart (C-MAP/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route)
• Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge*, Wind Alarm*, Boundary Alarm (*external data required)

Radar

• Display Modes: Head-up (Heading input required), North-up
• Echo Trail: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
• Target Tracking: 30 ARPA Targets
• Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line

Fish Finder

• Transmit Frequency: CW: 50/200kHz – CHIRP: 40kHz to 225kHz
• Transducer: 300/600 W or 1 kW (Matching box MB1100 required for some FURUNO transducers)
• Display Range: 2 to 1,200 m, shift: 0 to 1,200 m
• Extension Mode: ACCU-FISH, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRP
• Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
• Fish Finder Alarms (option): School of fish, School of fish for bottom lock

Interface

• CAN bus/NMEA2000: 1 Port
• Input: 065280, 126992, 126993, 126996, 127237, 127245, 127251, 127257, 127488, 127489, 125505, 128259, 128267, 129025, 129026, 129029, 129330, 129038, 129039, 129040, 129041, 129291, 129538, 129540, 129793, 129794, 129798, 129801, 129802, 129808, 129809, 129810, 130306, 130310, 130311, 130312, 130313, 130314, 130316, 130577, 130578, 130817, 130818, 130820, 130822, 130823, 130826, 130827, 130828, 130880
• Output: 126992, 126993, 126996, 127250, 127251, 127257, 127258, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129283, 129284, 129285, 130306, 130310, 130311, 130312, 130313, 130314, 130316
• NMEA0183: 1 Serial Output Port
• Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
• LAN: 2 Ports (100 BASE-TX)
• USB: 1 Port (USB2.0) for touch monitor and control unit: 1 Port USB output)
• Video I/O: Input: 2 ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only)Output: 1 port (HDMI 1080p)
• AUX I/O: 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output
• SD Card Slot: 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
• Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
• Transducer: 1 Port, 1 Port – DI-FFAM

Environment

• Temperature (IEC60945): -15°C to +55°C
• Relative Humidity: 93% or less at +40° C
• Waterproofing: IP56

Note: Transducer sold separately.
