Furuno NavNet TZTouch3 16” GPS/Fishfinder TM260 Package

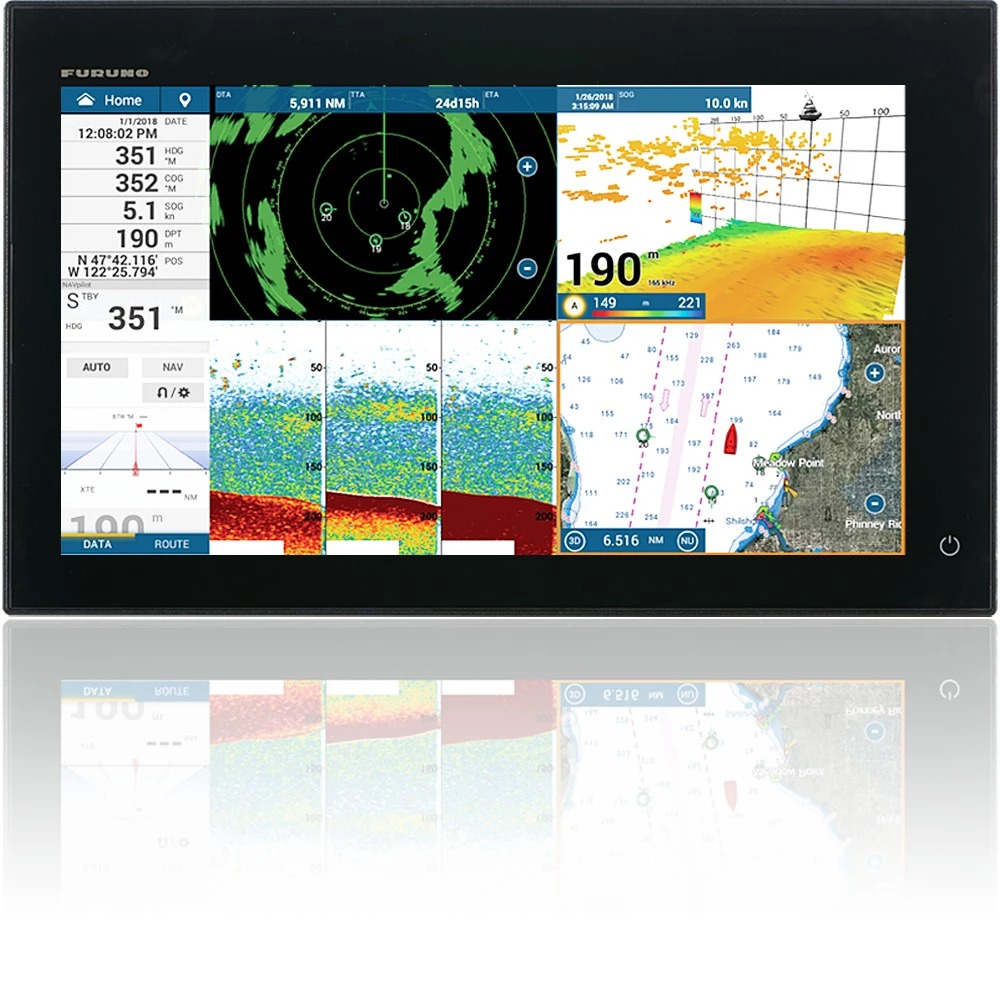

This lightning-fast 16” Multi Function Display features a sleek edge-to-edge glass display that delivers ultra-clear images from any angle. This MFD will not only make your helm functional but will also add style and ergonomics.

Never lose waypoints, routes or settings again with TZ Cloud

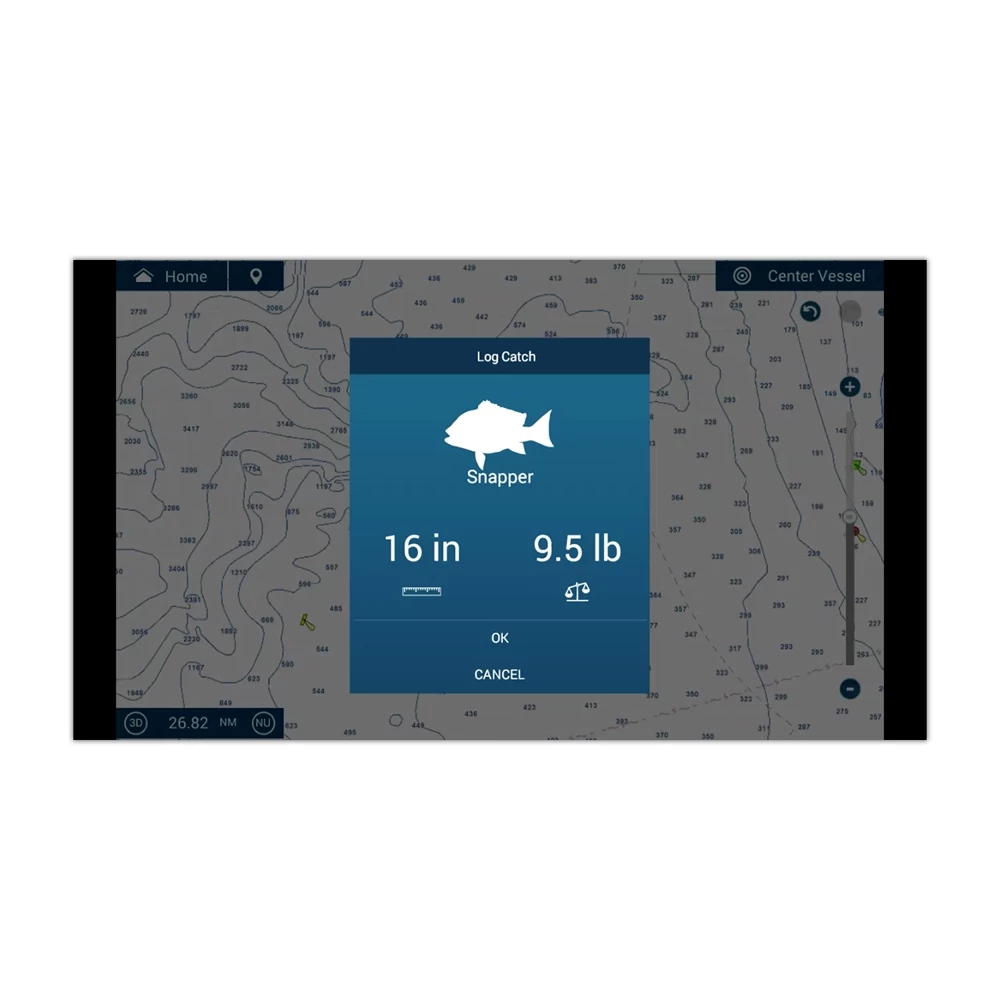

NavNet TZtouch3 keeps data secure and easy-to-access on multiple platforms with the TZ Cloud system. TZ Cloud service allows you to back up and store your waypoints, routes, and event marks to the TimeZero cloud server, as well as synchronise and edit them on your MFDs, TimeZero PC software, and the TZ iBoat app for iPad. Use the new TZ First Mate app to drop an event mark with each big catch and include the species, length and weight, and even take a picture with your phone, then access the information anywhere.

FIND MORE FISH WITH TruEcho CHIRP

The internal 1 kW TruEcho CHIRP Fish Finder inside NavNet TZtouch3 is designed to operate across a wide range of frequencies utilising a broadband transducer and delivers significant advantages to signal clarity and target definition. Due to the constant sweeping of frequencies, it is capable of gathering more and higher quality data than traditional Fish Finders.

Built-in Dual Channel 1kW TruEcho CHIRP and CW Fish Finder

GO DEEPER WITH MORE POWER THAN YOU THOUGHT WAS POSSIBLE

NavNet TZtouch3 incorporates a powerful internal 1 kW TruEcho CHIRP Fish Finder. For many, this is the perfect Fish Finder, but for some, they need more power. So, introducing Deep Impact (DI-FFAMP), a high-powered 2/3 kW amplifier.

Deep Impact boosts your power to a 2/3 kW CHIRP Fish Finder. High-powered TruEcho CHIRP ensures that your echoes come back strong and clear at every depth range, displaying fish targets and bottom structure with amazing clarity.

Screenshot using Optional  DEEP IMPACT (DI-FFAMP) amplifier.

Bottom DISCRIMINATION display

Bottom Discrimination provides detailed information about knowing the make-up of the seabed and categorising it into four different categories: Rocks, Gravel, Sand, and Mud. The make-up of the seabed can be tremendously helpful information when looking for fishing grounds, as well as for finding suitable anchorage.

Notes:Feature works with certain transducers. Not compatible with CHIRP, check to ensure your transducer is compatible.

ACCU-FISH fish size analyzer

The ACCU-FISH algorithm analyzes echo returns in order to compute individual fish size. The algorithm is capable of calculating fish size ranging from 10 cm up to 199 cm long. Fish depth can also be displayed.

More power to see 120-deg PORT-STARBOARD and in 3D

Connect an optional DFF3D Multi Beam sonar for the ultimate fishing machine!

The DFF-3D Multi Beam Sonar operates at 165 kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40 degrees ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

Features

• More powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1 kW TruEcho CHIRP and CW Fish Finder, low, medium and high Frequencies.
• New Pin code access on start up
• Interface with an extensive range of sensors including new Doppler Radar models, DFF3D Multi beam, Autopilot and new Compass SCX-20

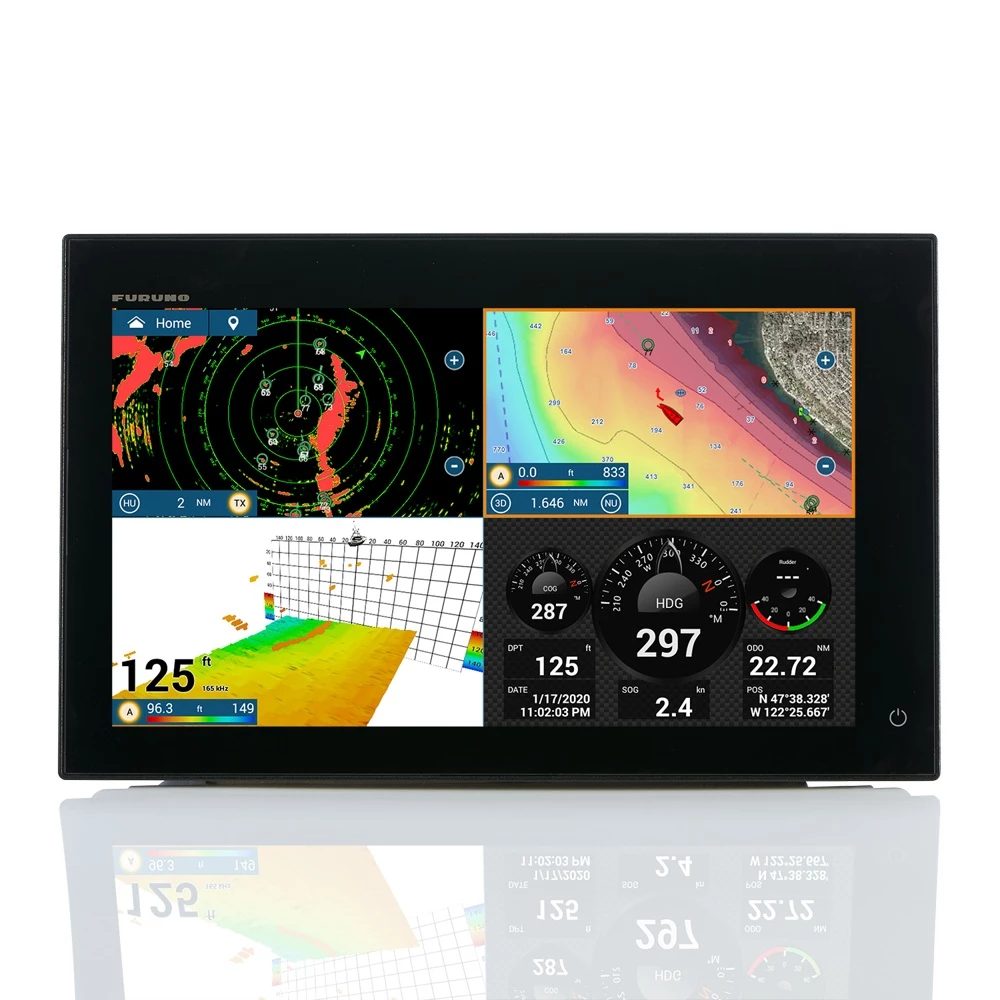

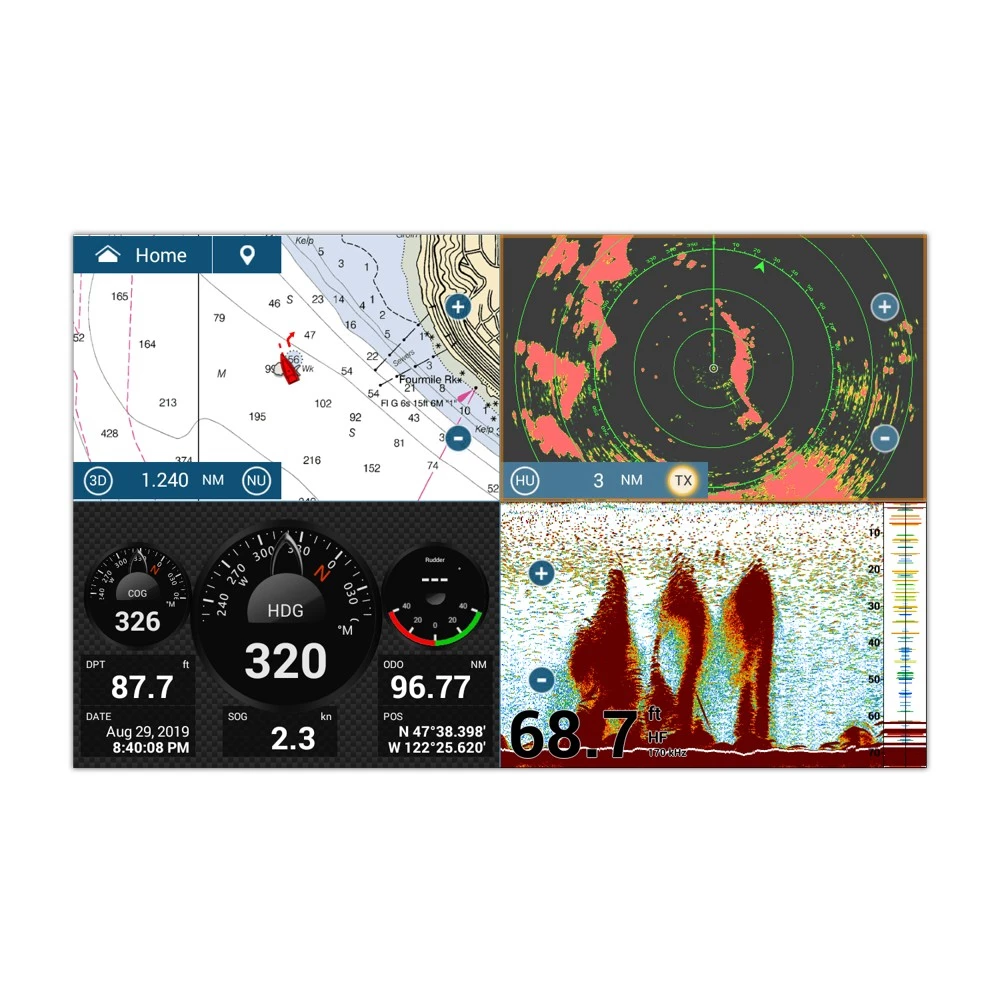

• 4 Way Screen Split allows for further customisation

Specifications:

• Display Type: (IPS) LCD
• Screen Size: 15.6inch
• Screen resolution: FHD 1920 x 1080
• Memory Capacity: 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route)
• Data Type: NMEA2000 (1 port), NMEA0183 (1 Serial output port)
• LAN: 2 Ports (100 BASE-TX)
• USB: 1 Port (USB2.0) for touch monitor and control unit: 1 Port USB
• Video I/O: Input: 2 ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only)
• Output: 1 port(HDMI 1080p)
• Power: 12-24 VDC
