Furuno NavNet TZTouch2 15.6in GPS/Fishfinder TM260 Package

Total control, simply refined

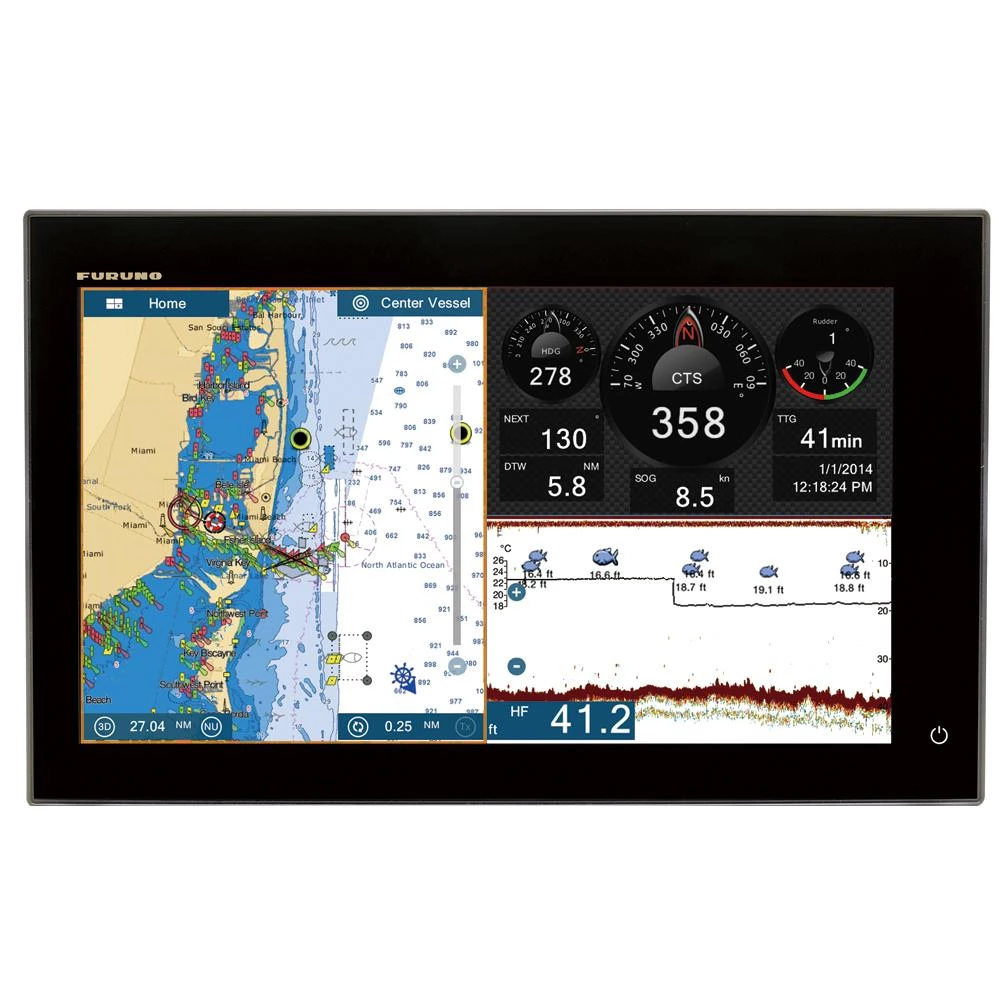

Upgrade your boat with Furuno’s world-leading fish finder and navigational technology. With a sleek all-glass front, refined graphical user interface, built-in RezBoost Fishfinder and internal GPS antenna, the Furuno NavNet TZTouch2 15.6in Multifunction Display is leading the world in marine electronics technology. Whether you’re searching for hot fishing grounds, plotting your next route or using your Radar to navigate through fog, the TZtouch2 is one simplest platform to operate. It delivers smooth operation while remembering familiar touch gestures. Ideal for medium to large-sized trailer boats, this unit lets you build a navigation suite that is not only functional but offers a luxurious look and feel.

All about usability

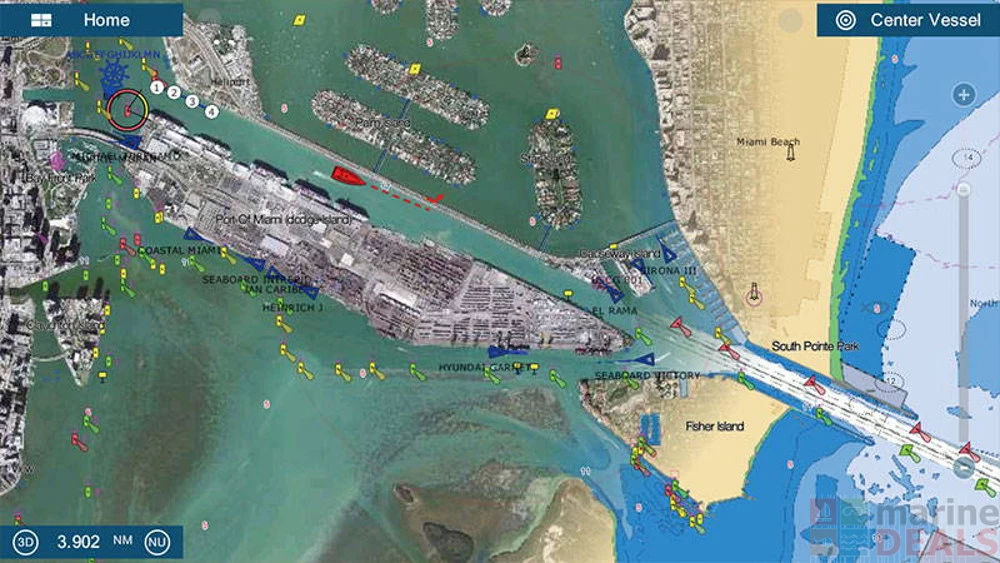

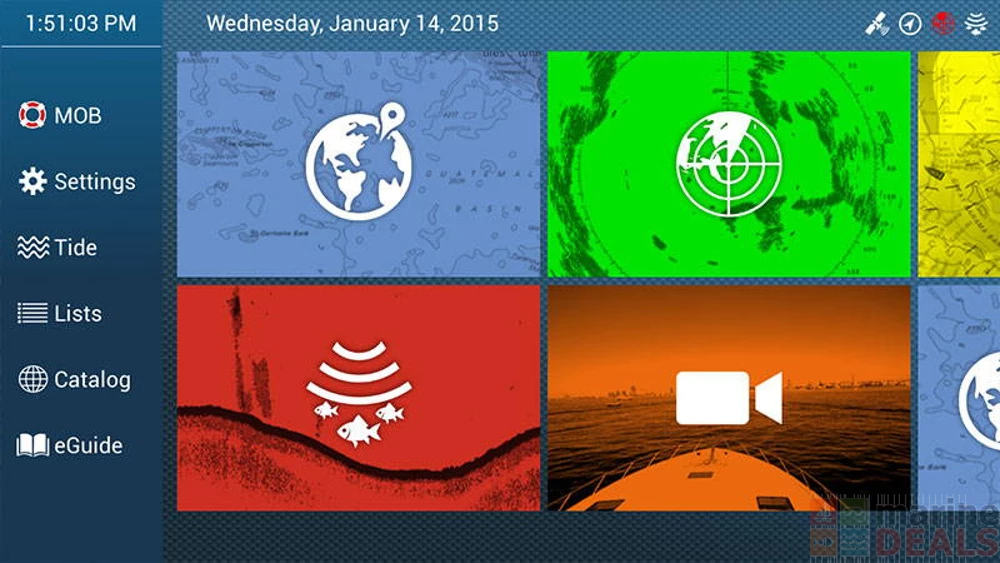

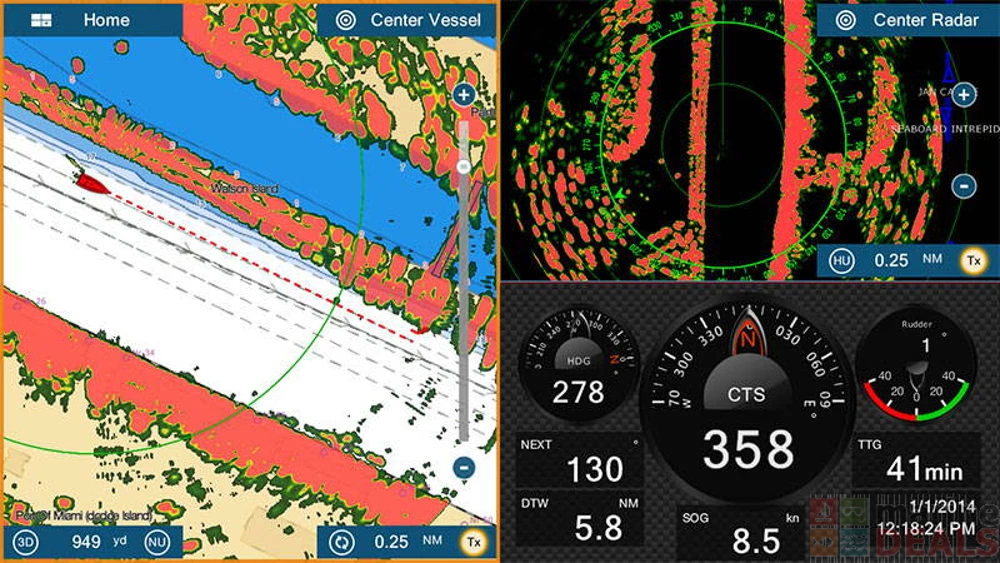

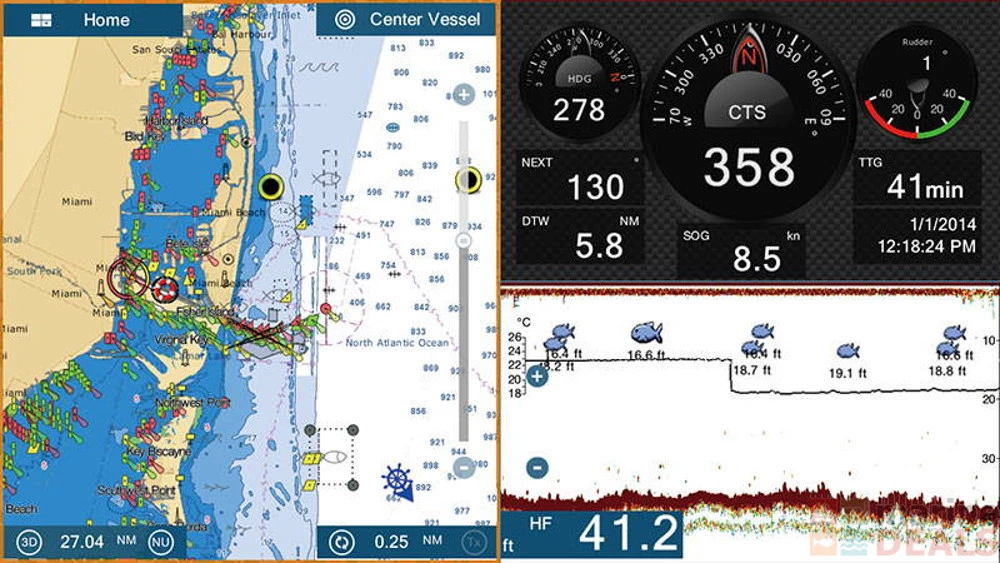

The newly refined graphical user interface makes operation a breeze! Accessing different displays is achieved by tapping on the Home icon, or utilising the new Edge Swipe motion. Swiping from the left edge reveals the NavData panel, where you can customise content to simplify navigation and chart usage. From here, you can set the autopilot, check tide information and much more. Swiping up from the bottom of the screen unveils the new Layers menu, a practical way of changing settings on the fly without having to venture into deeper menu systems.

GPS and Fishfinder

A 56-channel Furuno GPS Receiver is built into the display. You can connect an external antenna for redundancy, but the primary GPS receiver is built-in, saving you money on additional equipment and installation cost. The built-in Fish Finder is a dual-frequency (50/200kHz), 600W/1kW power output sounder. It includes Furuno’s unique Bottom Discrimination and AccuFish modes and also incorporates another new Furuno proprietary Fish Finder technology, called RezBoost. RezBoost is a revolutionary new feature that utilizes Furuno’s exclusive digital signal processing protocol to produce fantastic target resolution and separation.

Networking

Add a variety of UHD Radars, from a 4kW Dome up to a 25kW Open Array. As with NavNet TZtouch, you can integrate, display, and control the NavPilot Autopilot and Furuno’s new FI70 Instrument. Both of these products have displays that match TZtouch2, giving your helm a beautiful all-glass finish. Additional sensors that can be added to the network include AIS, Weather Fax, Sirius/XM Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183 output port to send data to legacy systems.

Furuno NavNet TZTouch2 15.6in Multifunction Display Features:

• Multi Touch Control
• Ultra High Definition
• TruEcho CHIRP
• Furuno Digital Filter
• Bottom Discrimination
• ACCU-FISH
• RezBoost
• GPS internal antenna
• Internal fishfinder
• Auto Tuning (Sensitivity)
• Target Tracking
• AIS
• Enhanced Sunlight Viewable
• Bonded LCD
• Polatised Friendly
• Ethernet PlugandPlay
• CAN bus
• Video In/Out
• NMEA2000 Certified
• Display size: 15.6in
• Resolution: FWXGA 1366 x 768
• GPS/WAAS: 56 Channel GPS receiver built in
• Fish Finder: 50/200kHz, 600W or 1kW
• Memory: 30,000 User Points, 30,000 Track Points, 200 Planned Routes with 500 Points/Route
• Interface: 1 Port, CanBUS/NMEA2000
• LAN: 1 Port, Ethernet 100 BASE-TX
• Wireless LAN: IEEE802.11B, 2.4GHz band
• USB: 1 Port, USB 2.0
• Video Out: 1 Port, HDMI
• Video In: 2 Ports, NTSC/PAL
• Waterproofing: IP56
• Power: 12-24 VDC, 3.6-1.8 A

Furuno NavNet TZtouch2 15.6inch Multifunction Display Specifications:

Display

• Display Unit: 15.6inch Wide Colour TFT multi touch LCD
• Screen Brightness: 1100 cd/? (typical)
• Screen Resolution: FWXGA 1366 x 768 pixels
• Language: English (US and UK), French, Spanish, German, Italian, Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese (simplified Chinese characters), Japanese

Plotter

• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (heading input required)
• Target Tracking: Max 100 Targets (heading input required)

Fishfinder (Internal)

• Transmit Frequency: 50/200 kHz
• Transmission Power: 600 or 1kW (Matching box MB-1100 required for some Furuno transducers)
• Display Mode: RezBoost, ACCU-FISH, Bottom Discrimination, A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom Lock

GPS / WAAS (Internal)

• Receiving Type:

  GPS: 56 Channels
  SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 mHz)
• Accuracy: GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max

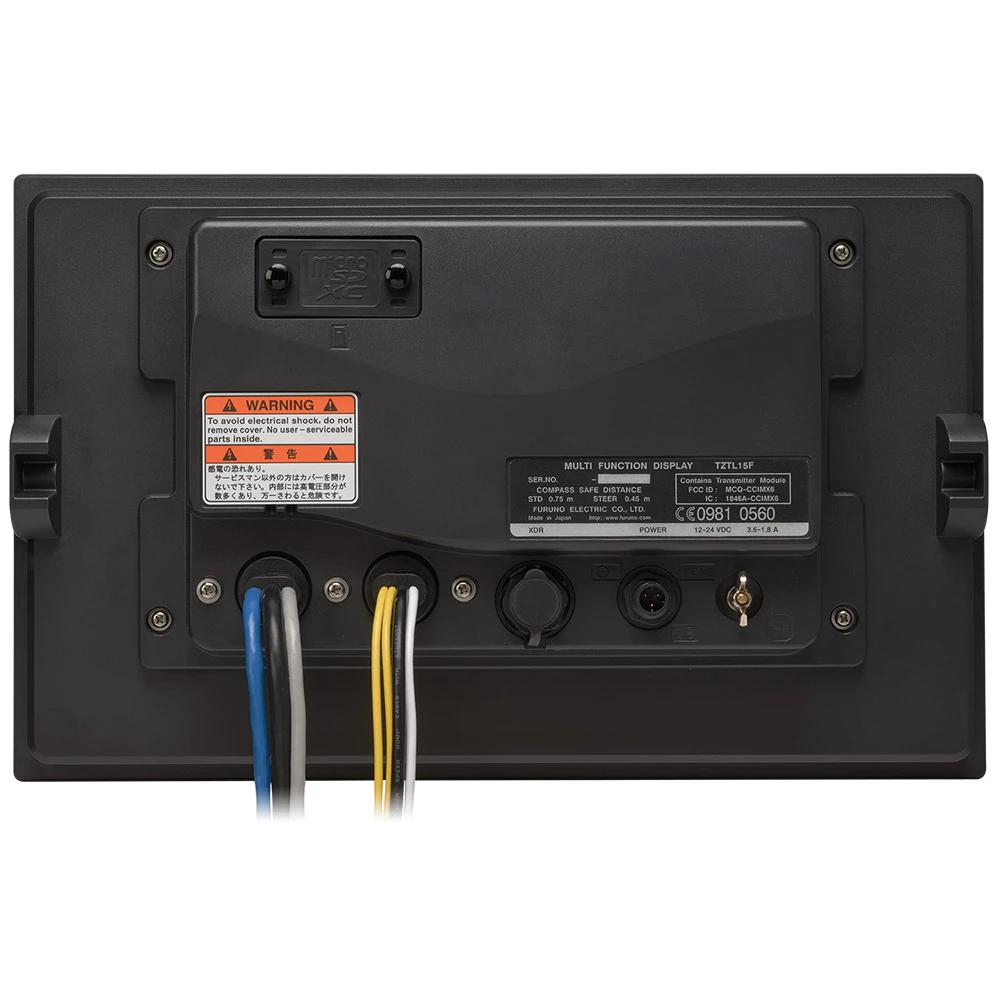

Interface

• CAN bus: 1 Port (NMEA2000)
• NMEA0183: 1 Integrated Output Port
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0)
• Video Output: 1 Port (HDMI)
• Video Input: 2 Ports (NTSC/PAL)
• AUX I/O: 1 Port (External Event/MOB Input/Operator Fitness/Alarm Output)
• SD Card Slot: 1 Slot (Micro SDXC, rear) 2 Slots Card Unit (optional)
• Wireless LAN: IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz band
• Transducer: 1 Port
• Waterproofing: IP56
• Power Supply: 12-24 VDC / 3.6-1.8 A
• Size:
  Flush Mount: 256 (H) x 410 (W) x 109 (D) mm
  Tabletop Mount (optional): 282 (H) x 444 (W) x 116 (D) mm
• Weight:

  Flush Mount: 4.8 kg

  Tabletop Mount (optional): 5.5 kg

AIS

• AIS: Up to 100 targets

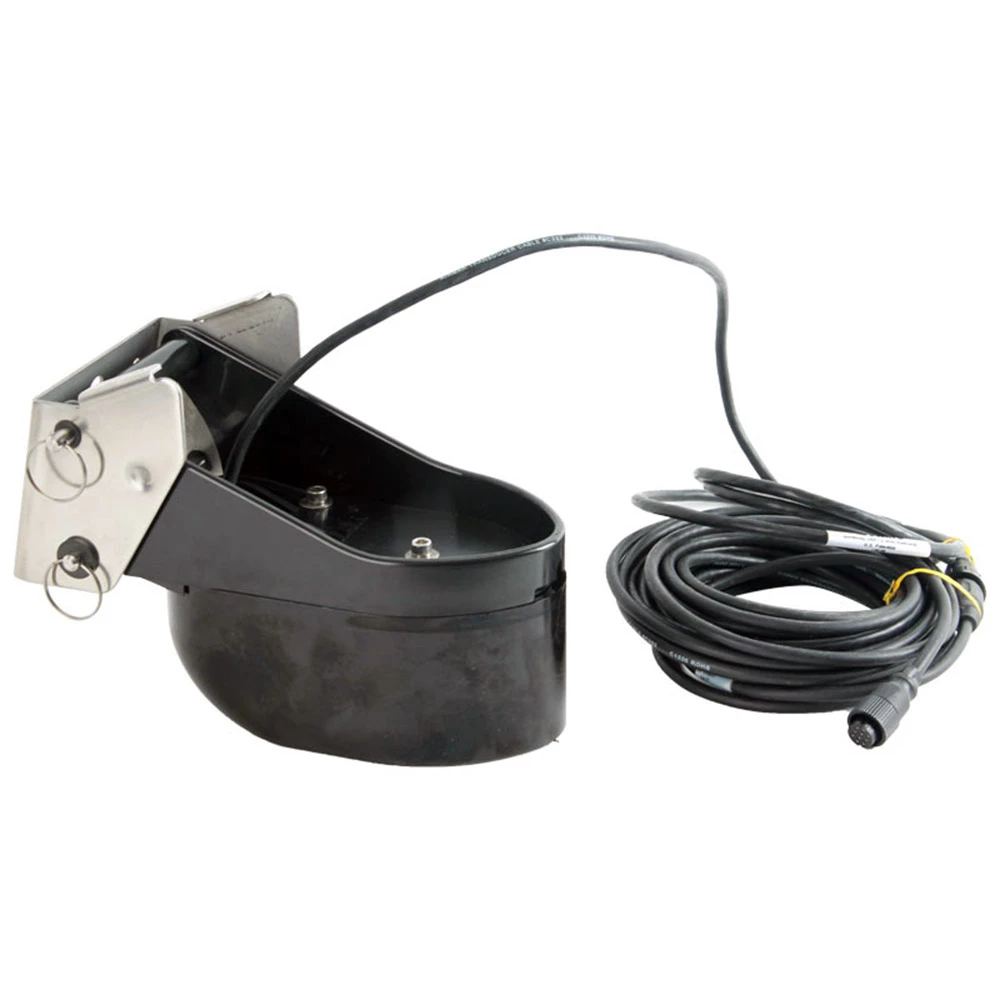

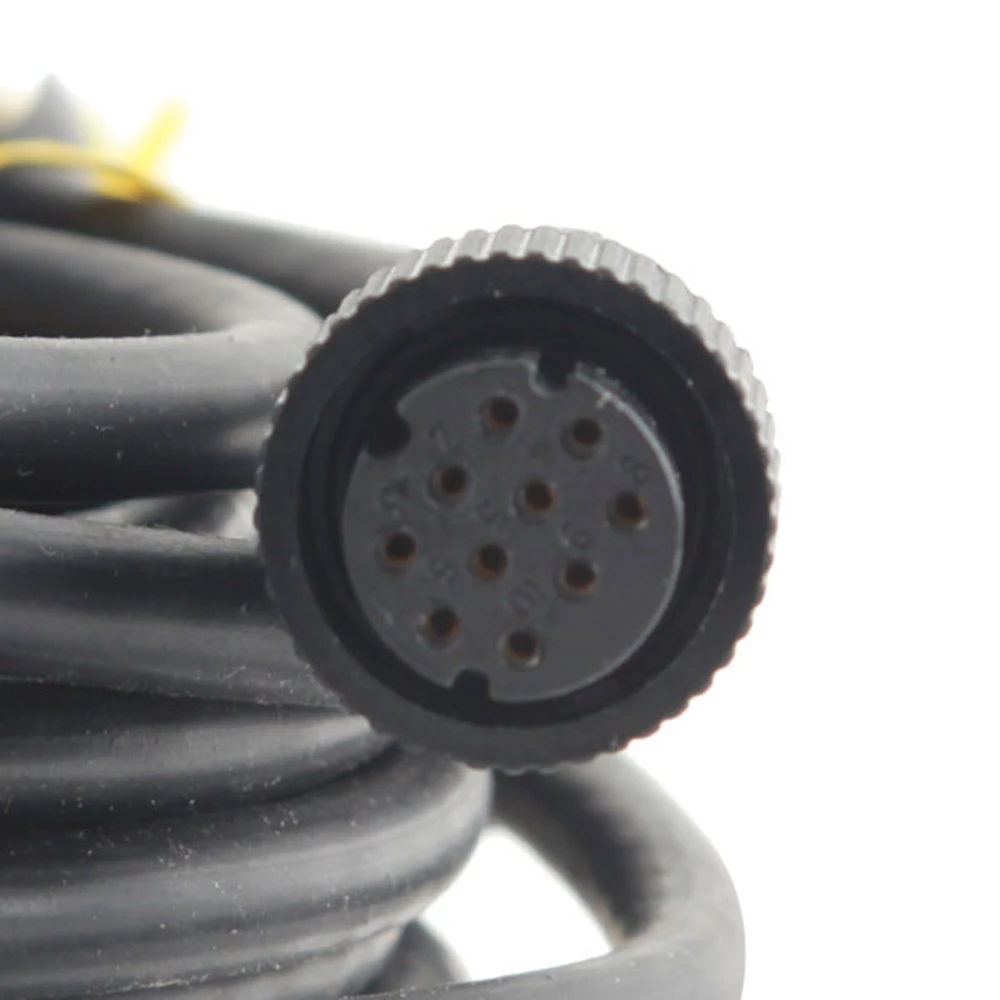

Airmar TM260 Transom Mount Transducer Features:

• Top-of-the-line narrow-beam transom-mount
• Designed for bottom fishing
• Wide 19 degrees beam at 50 kHz
• Narrow 6 degrees beam at 200 kHz
• Interfaces to any 600 W or 1 kW sounder
• Depth and fast-response water-temperature sensor
• Kick-up assembly locks in the up position and will not damage the transom
• Accommodates transom angles between 3 degrees and 21 degrees
• Urethane housing
• Boat Size: Up to 12 m (40′)

Airmar TM260 Transom Mount Transducer Specifications:

• Weight: 4 kg (8.9 lb)
• Hull deadrise: Up to 28 degrees
• Acoustic window: Urethane
• Maximum depth range:
• 50kHz: 529 to 735m
• 200kHz: 206m to 294m

What’s in the box:

• 15in Multifunction display unit
• NZ chart card
• Airmar P66 Transducer
• 2x Fuse 5A 125V
• LCD cleaning cloth
• Cable accessories CAP6-BK-PE
• Power cable assembly 3.5m
• 2x Flush mount sponge 12H
• 2x Flush mount sponge 12v
• 2x Flush mount fixture
• EMI core GRFC-9
• Slotted head hex bolt M6x12
• Operator’s guide
• Installation Manual
• Flush mounting template
• Environmental data sheet
