Furuno NavNet TZTouch2 15.6” GPS/Fishfinder TM258 Package

Total control, simply refined

Upgrade your boat with Furuno’s world leading fish finder and
navigational technology. With a sleek all glass front, refined
graphical user interface, built-in RezBoost Fishfinder and internal
GPS antenna, the Furuno NavNet TZTouch2 15.6″ Multifunction
Display is leading the world in marine electronics
technology. Whether you’re searching for hot fishing grounds,
plotting your next route or using your Radar to navigate through
fog, the TZtouch2 is one simplest platform to operate. It delivers
smooth operation while remembering familiar touch gestures.

Ideal for medium to large sized trailer boats, this unit lets you
build a navigation suite that is not only functional, but offers a
luxurious look and feel. It comes with an NZ Chart Card so all you
need is a good quality transducer and you’re set.

Package Includes:

• Furuno NavNet TZTouch2 15.6” GPS/Fishfinder Unit
• Pre-loaded NZ Chart
• Airmar TM258 Transom Mount Transducer

All about usability

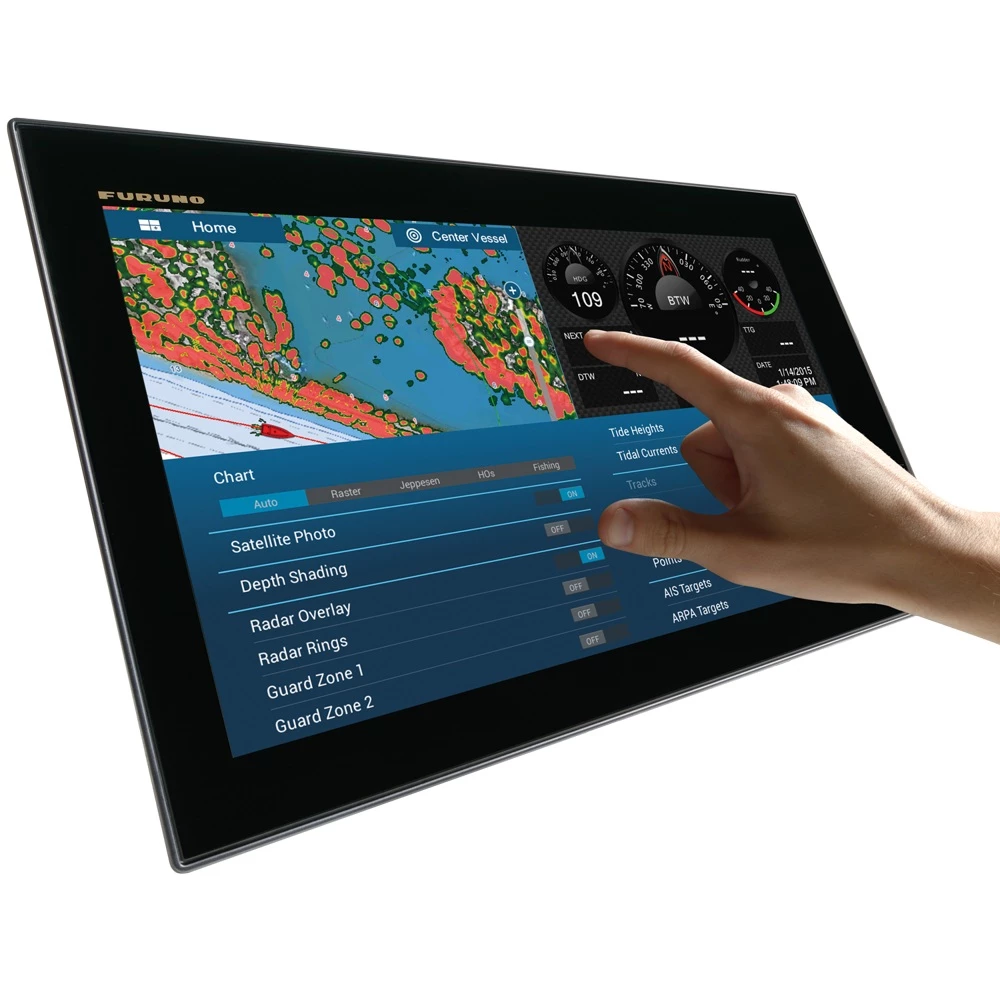

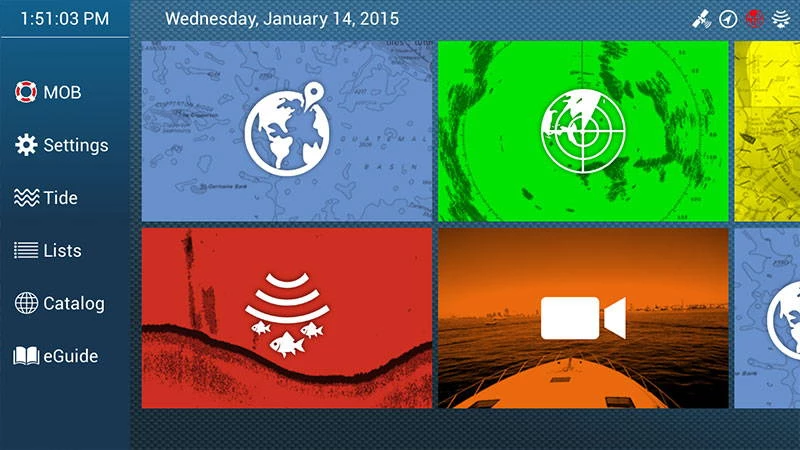

The newly refined graphical user interface makes operation a
breeze! Accessing different displays is achieved by tapping on the
Home icon, or utilising the new “Edge Swipe” motion. Swiping from
the left edge reveals the NavData panel, where you can customise
content to simplify navigation and chart usage. From here, you can
set the autopilot, check tide information and much more. Swiping up
from the bottom of the screen unveils the new Layers menu, a
practical way of changing settings on the fly without having to
venture into deeper menu systems.

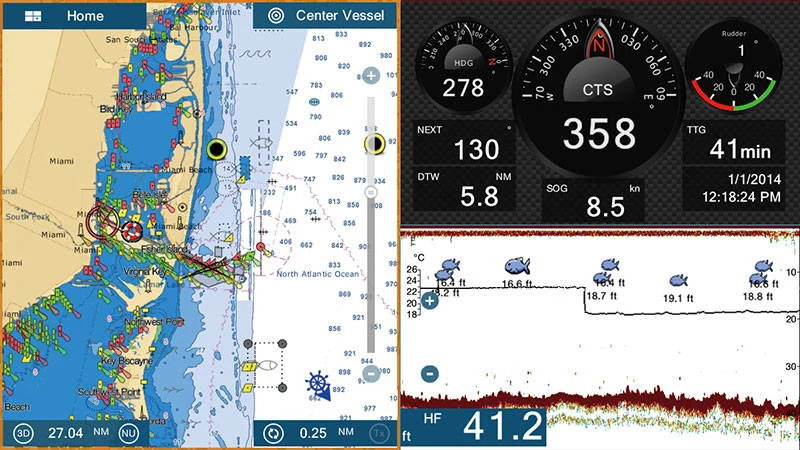

GPS and Fishfinder
A 56-channel Furuno GPS Receiver is built into the display. You can
connect an external antenna for redundancy, but the primary GPS
receiver is built-in, saving you money on additional equipment and
installation cost. The built-in Fish Finder is a dual-frequency
(50/200kHz), 600W/1kW power output sounder. It includes Furuno’s
unique Bottom Discrimination and AccuFish modes, and also
incorporates another new Furuno proprietary Fish Finder technology,
called RezBoost. RezBoost is a revolutionary new feature that
utilizes Furuno’s exclusive digital signal processing protocol to
produce fantastic target resolution and separation.

Networking

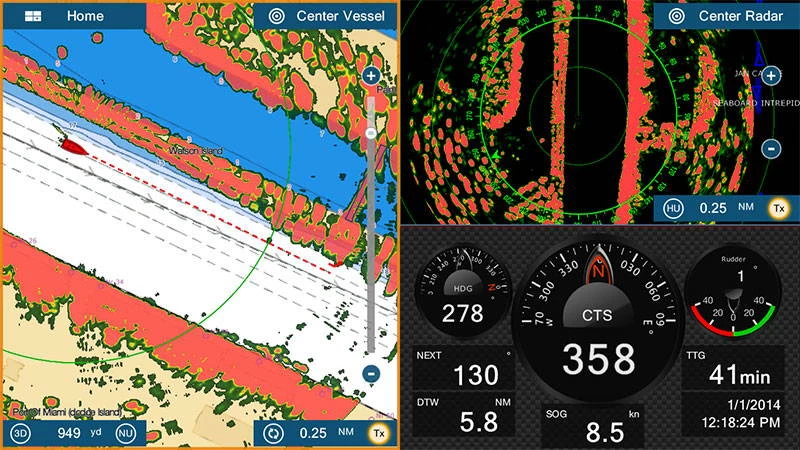

Add a variety of UHD Radars, from a 4kW Dome up to a 25kW Open
Array. As with NavNet TZtouch, you can integrate, display, and
control the NavPilot Autopilot and Furuno’s new FI70 Instrument.
Both of these products have displays that match TZtouch2, giving
your helm a beautiful all-glass finish. Additional sensors that can
be added to the network include AIS, Weather Fax, Sirius/XM
Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as
NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183
output port to send data to legacy systems.

The Transducer
The Airmar TM258 1KW Transom Mount Transducer now
has a new look with the housing bracket and better high speed
performance. The sleek new brackets make this Airmar 1KW
transom mount transducer easier to install. It also
features a streamlined shape that improves its high speed
performance up to 30 knots. This transducer will make 600W sounders
respond like a more powerful model. This model also gives you 25
times more sensitivity compared to that of the standard transom
mount transducers. It also packs four 50 kHz/200 kHz elements to
help focus narrow beams at both frequencies to ultimately help you
see crisp targets and clear bottom definitions.

Furuno NavNet TZTouch2 15.6″ Multifunction Display
Features:

• Multi Touch Control
• Ultra High Definition
• TruEcho CHIRP
• Furuno Digital Filter
• Bottom Discrimination
• ACCU-FISH
• RezBoost
• GPS internal antenna
• Internal fishfinder
• Auto Tuning (Sensitivity)
• Target Tracking
• AIS
• Enhanced Sunlight Viewable
• Bonded LCD
• Polatised Friendly
• Ethernet Plug&Play
• CAN bus
• Video In/Out
• NMEA2000 Certified
• Display size: 15.6”
• Resolution: FWXGA 1366 x 768
• GPS/WAAS: 56 Channel GPS receiver built in
• Fish Finder: 50/200kHz, 600W or 1kW
• Memory: 30,000 User Points, 30,000 Track Points, 200 Planned
  Routes with 500 Points/Route
• Interface: 1 Port, CanBUS/NMEA2000
• LAN: 1 Port, Ethernet 100 BASE-TX
• Wireless LAN: IEEE802.11B, 2.4GHz band
• USB: 1 Port, USB 2.0
• Video Out: 1 Port, HDMI
• Video In: 2 Ports, NTSC/PAL
• Waterproofing: IP56
• Power: 12-24 VDC, 3.6-1.8 A

Furuno NavNet TZTouch2 15.6″ Multifunction Display
Specifications:

Display

• Display Unit: 15.6″ Wide Colour TFT multi touch LCD
• Screen Brightness: 1100 cd/㎡ (typical)
• Screen Resolution: FWXGA 1366 x 768 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese
  (simplified Chinese characters), Japanese

Plotter

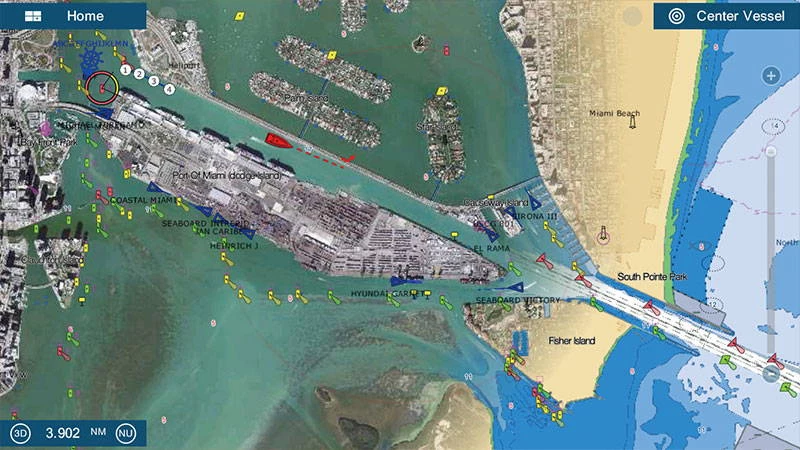

• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (heading input
  required)
• Target Tracking: Max 100 Targets (heading input
  required)

Fishfinder (Internal)

• Transmit Frequency: 50/200 kHz
• Transmission Power: 600 or 1kW (Matching box MB-1100 required
  for some Furuno transducers)
• Display Mode: RezBoost, ACCU-FISH, Bottom Discrimination,
  A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom
  Lock

GPS / WAAS (Internal)

• Receiving Type:
  GPS: 56 Channels
  SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 mHz)
• Accuracy: GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max

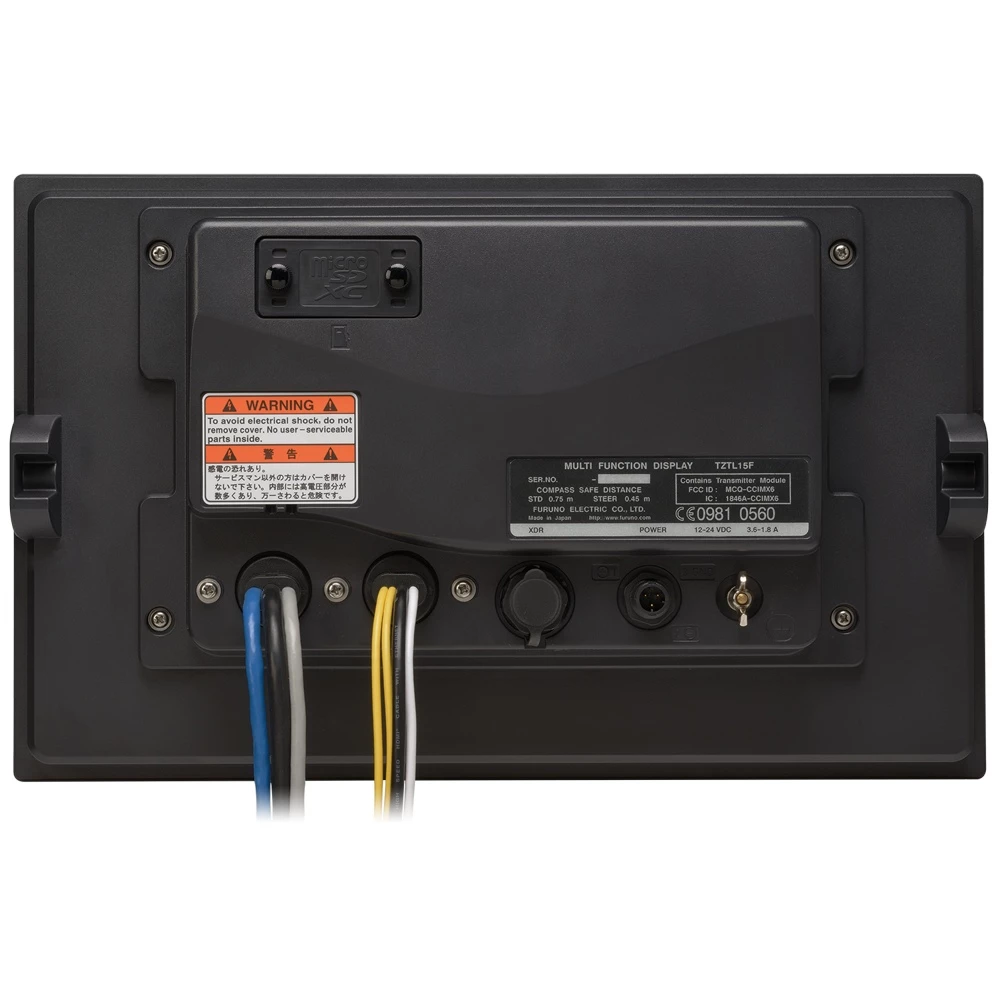

Interface

• CAN bus: 1 Port (NMEA2000)
• NMEA0183: 1 Integrated Output Port
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0)
• Video Output: 1 Port (HDMI)
• Video Input: 2 Ports (NTSC/PAL)
• AUX I/O: 1 Port (External Event/MOB Input/Operator
  Fitness/Alarm Output)
• SD Card Slot: 1 Slot (Micro SDXC, rear) 2 Slots Card Unit
  (optional)
• Wireless LAN: IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz
  band
• Transducer: 1 Port
• Waterproofing: IP56
• Power Supply: 12-24 VDC / 3.6-1.8 A
• Size:
  Flush Mount: 256 (H) x 410 (W) x 109 (D) mm
  Tabletop Mount (optional): 282 (H) x 444 (W) x 116 (D) mm
• Weight:
  Flush Mount: 4.8 kg
  Tabletop Mount (optional): 5.5 kg

AIS

• AIS: Up to 100 targets

Airmar TM258 1kW Trans Mount Transducer
Features:

• Depth and new fast-response water temperature sensor
• Elliptical beam covers larger bottom area
• Fits existing TM256 and TM258 models
• Bracket kick-up assembly locks in the “up” position & will not
  damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane housing
• Boat size: 8m to 12m
• Deep water bottom and structure fishing of up to 500m

What’s in the box:

• 15″ Multifunction display unit
• NZ chart card
• Airmar TM258 Transducer
• 2x Fuse 5A 125V
• LCD cleaning cloth
• Cable accessories CAP6-BK-PE
• Power cable assembly 3.5m
• 2x Flush mount sponge 12H
• 2x Flush mount sponge 12v
• 2x Flush mount fixture
• EMI core GRFC-9
• Slotted head hex bolt M6x12
• Operator’s guide
• Installation Manual
• Flush mounting template
• Environmental data sheet
