Furuno NavNet TZTouch2 15.6” GPS/Fishfinder DFF1-UHD Sounder And TM265LH Package

Total control, simply refined

Upgrade your boat with Furuno’s world leading fish finder and

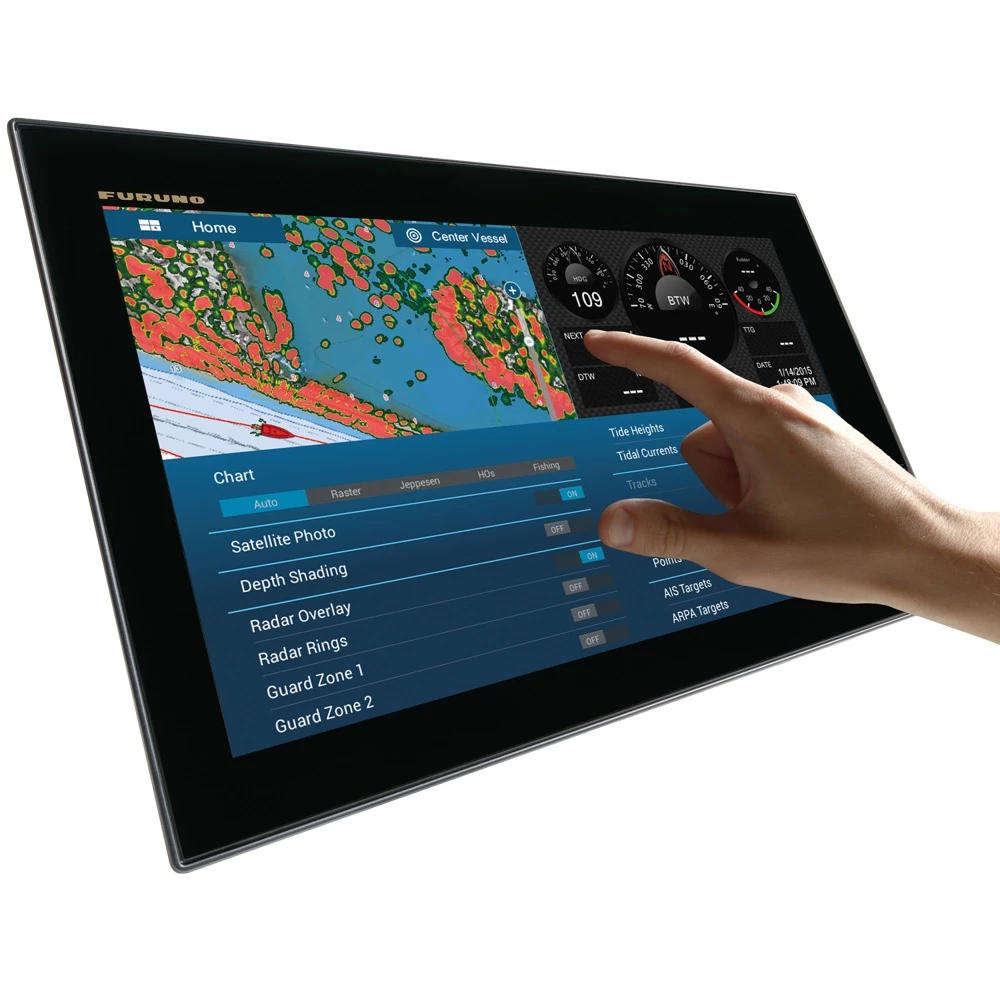

navigational technology. With a sleek all glass front, refined
graphical user interface, built-in RezBoost Fishfinder and internal
GPS antenna, the Furuno NavNet TZTouch2 15.6″ Multifunction
Display is leading the world in marine electronics
technology. Whether you’re searching for hot fishing grounds,
plotting your next route or using your Radar to navigate through
fog, the TZtouch2 is one simplest platform to operate. It delivers
smooth operation while remembering familiar touch gestures.

Ideal for medium to large sized trailer boats, this unit lets you
build a navigation suite that is not only functional, but offers a
luxurious look and feel.

Package Includes:

• Furuno NavNet TZTouch2 15.6” GPS/Fishfinder Unit
• Pre-loaded NZ Chart
• Furuno DFF1-UHD CHIRP Sounder Module for NavNet
• Airmar TM258 Transom Mount Transducer

All about usability

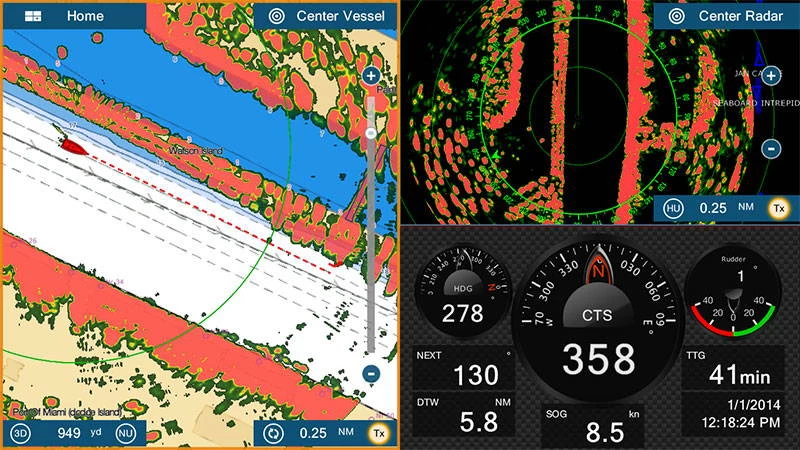

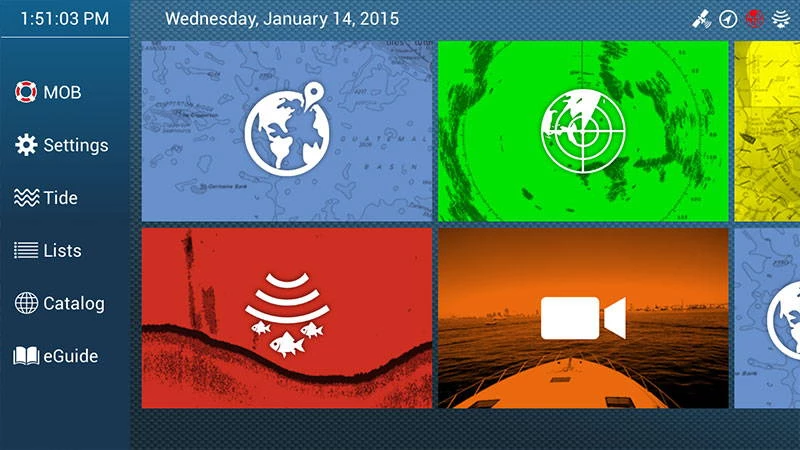

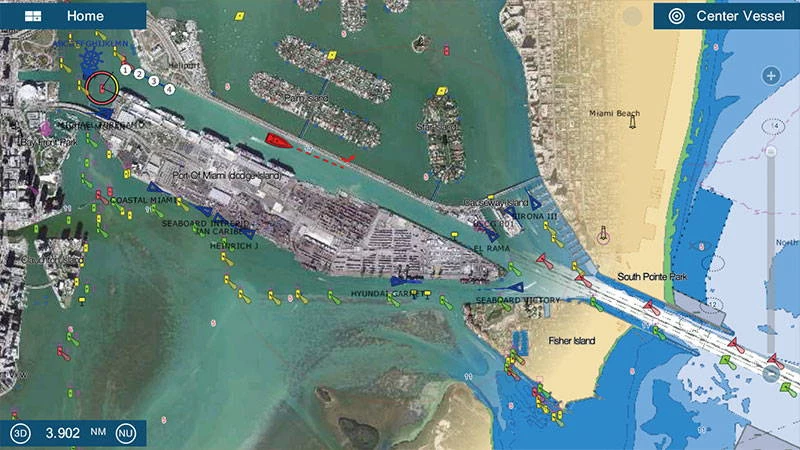

The newly refined graphical user interface makes operation a
breeze! Accessing different displays is achieved by tapping on the
Home icon, or utilising the new “Edge Swipe” motion. Swiping from
the left edge reveals the NavData panel, where you can customise
content to simplify navigation and chart usage. From here, you can
set the autopilot, check tide information and much more. Swiping up
from the bottom of the screen unveils the new Layers menu, a
practical way of changing settings on the fly without having to
venture into deeper menu systems.

GPS and Fishfinder
A 56-channel Furuno GPS Receiver is built into the display. You can
connect an external antenna for redundancy, but the primary GPS
receiver is built-in, saving you money on additional equipment and

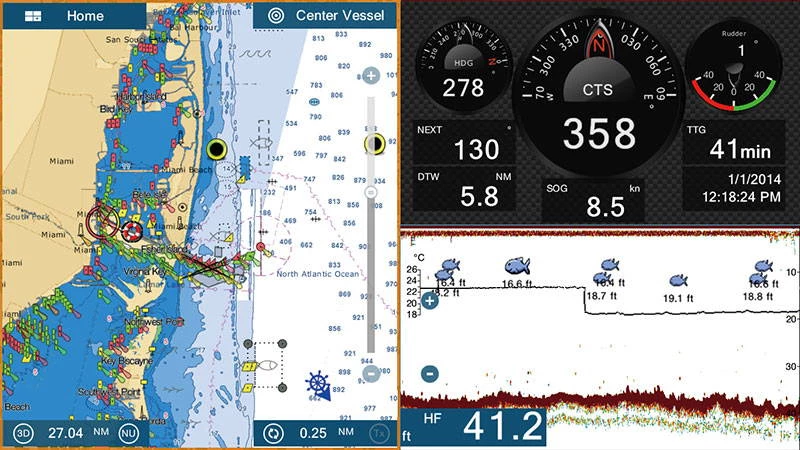

installation cost. The built-in Fish Finder is a dual-frequency
(50/200kHz), 600W/1kW power output sounder. It includes Furuno’s
unique Bottom Discrimination and AccuFish modes, and also
incorporates another new Furuno proprietary Fish Finder technology,
called RezBoost. RezBoost is a revolutionary new feature that
utilizes Furuno’s exclusive digital signal processing protocol to
produce fantastic target resolution and separation.

Networking
Add a variety of UHD Radars, from a 4kW Dome up to a 25kW Open
Array. As with NavNet TZtouch, you can integrate, display, and
control the NavPilot Autopilot and Furuno’s new FI70 Instrument.
Both of these products have displays that match TZtouch2, giving
your helm a beautiful all-glass finish. Additional sensors that can
be added to the network include AIS, Weather Fax, Sirius/XM
Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as
NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183
output port to send data to legacy systems.

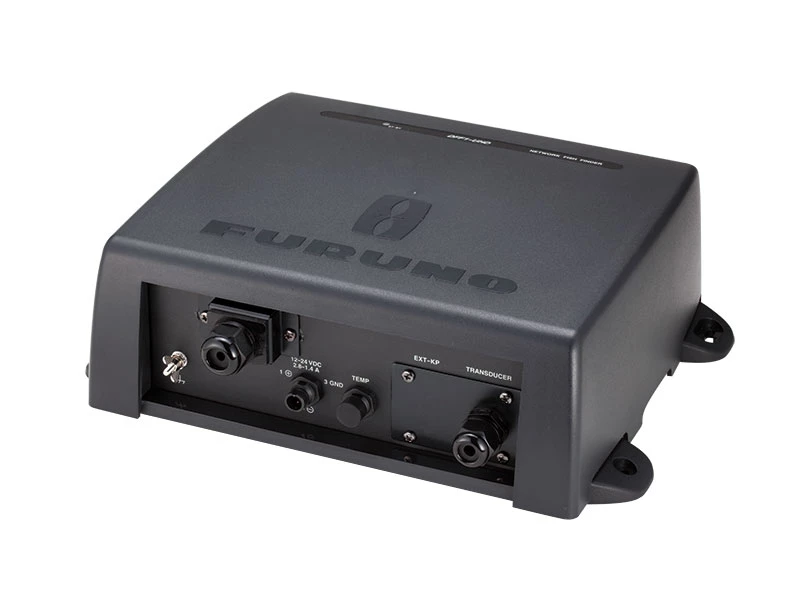

The Sounder Module
Designed to operate over a wide range of frequencies utilizing a
broadband transducer, the Furuno DFF1-UHD CHIRP Sounder
Module for NavNet delivers significant advancements in
signal clarity and target definition. The clear presentation of the
DFF1-UHD marks individual game fish and bait fish, even when
tightly schooled together or very near the sea floor.

Benefits of CHIRP sounders
Standard, non-CHIRP fishfinders operate at one or two individual
frequencies and are generally capable of detecting targets and
displaying them only within those narrow frequency bands. CHIRP
fishfinders transmit pulses across a wide range of frequencies,
allowing Furuno’s superior digital signal processing (DSP) to
display fish and structure targets with unparalleled clarity,
accuracy and resolution.

The DFF1-UHD uses a precise sweep pattern across 90 frequencies (50
kHz +/- 20 kHz, 200 kHz +/- 25 kHz) within a long-duration
transmission. The equivalent sound energy transmitted into the
water is 10 to 1,000 times greater than a conventional fishfinder,
resulting in more energy on target. The results are up to 5x
greater resolution and depth capability than comparably powered,
standard Fish Finders due to the advanced signal processing of the
return echo.

The Transducer
Whether you’re a commercial fisherman, charter captain or
tournament angler, there’s a new game in town ready for some
action. And the new Airmar TM 265 Transom Mount Broadband
CHIRP Transducer is the one you can rely on for the
ultimate fishing mission. Specifically designed for small boats,
Airmar’s new CHIRP transducer uses a precise sweep pattern of many
frequencies within a long-duration transmit pulse from a broadband
transducer. This means the equivalent sound energy transmitted into
the water is 10 to 1,000 times greater and more precise than a
conventional marine fish finder. Now you can easily distinguish
between individual baitfish, game fish and underwater
structures.

The Airmar TM 265 Transom Mount Broadband CHIRP
Transducer is engineered with ceramics designed to operate
over a broad range of frequencies with no sensitivity loss. Now you
can detect specific fish species accurately when tuning the
transducer to specific frequencies. The combination of the CHIRP
technology, the broadband transducer and your fish finder’s digital
signal processing (DSP) results in dramatically more precise fish
and bottom detection, superior depth capability and significantly
better performance at speed.

Furuno NavNet TZTouch2 15.6″ Multifunction Display
Features:

• Multi Touch Control
• Ultra High Definition
• TruEcho CHIRP
• Furuno Digital Filter
• Bottom Discrimination
• ACCU-FISH
• RezBoost
• GPS internal antenna
• Internal fishfinder
• Auto Tuning (Sensitivity)
• Target Tracking
• AIS
• Enhanced Sunlight Viewable
• Bonded LCD
• Polatised Friendly
• Ethernet Plug&Play
• CAN bus
• Video In/Out
• NMEA2000 Certified
• Display size: 15.6”
• Resolution: FWXGA 1366 x 768
• GPS/WAAS: 56 Channel GPS receiver built in
• Fish Finder: 50/200kHz, 600W or 1kW
• Memory: 30,000 User Points, 30,000 Track Points, 200 Planned
  Routes with 500 Points/Route
• Interface: 1 Port, CanBUS/NMEA2000
• LAN: 1 Port, Ethernet 100 BASE-TX
• Wireless LAN: IEEE802.11B, 2.4GHz band
• USB: 1 Port, USB 2.0
• Video Out: 1 Port, HDMI
• Video In: 2 Ports, NTSC/PAL
• Waterproofing: IP56
• Power: 12-24 VDC, 3.6-1.8 A

Furuno NavNet TZTouch2 15.6″ Multifunction Display
Specifications:

Display

• Display Unit: 15.6″ Wide Colour TFT multi touch LCD
• Screen Brightness: 1100 cd/㎡ (typical)
• Screen Resolution: FWXGA 1366 x 768 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese
  (simplified Chinese characters), Japanese

Plotter

• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (heading input
  required)
• Target Tracking: Max 100 Targets (heading input
  required)

Fishfinder (Internal)

• Transmit Frequency: 50/200 kHz
• Transmission Power: 600 or 1kW (Matching box MB-1100 required
  for some Furuno transducers)
• Display Mode: RezBoost, ACCU-FISH, Bottom Discrimination,
  A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom
  Lock

GPS / WAAS (Internal)

• Receiving Type:
  GPS: 56 Channels
  SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 mHz)
• Accuracy: GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max

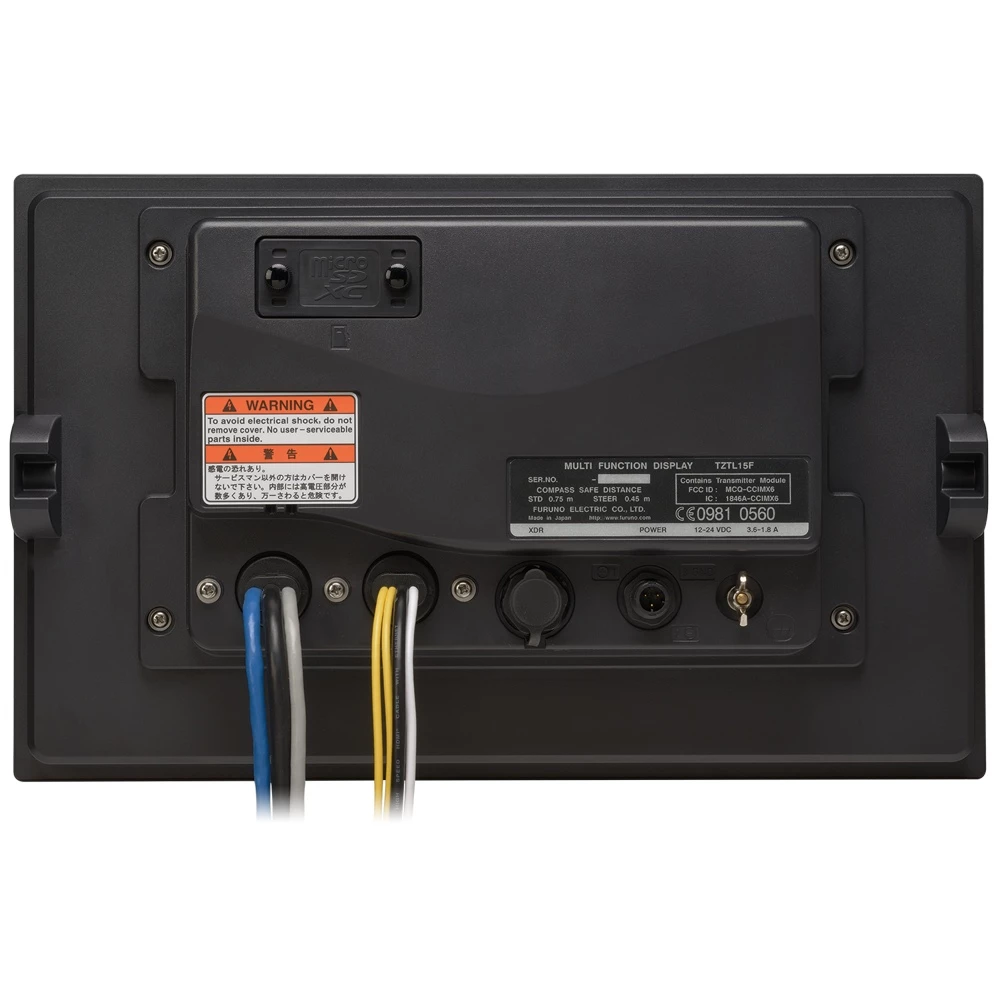

Interface

• CAN bus: 1 Port (NMEA2000)
• NMEA0183: 1 Integrated Output Port
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0)
• Video Output: 1 Port (HDMI)
• Video Input: 2 Ports (NTSC/PAL)
• AUX I/O: 1 Port (External Event/MOB Input/Operator
  Fitness/Alarm Output)
• SD Card Slot: 1 Slot (Micro SDXC, rear) 2 Slots Card Unit
  (optional)
• Wireless LAN: IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz
  band
• Transducer: 1 Port
• Waterproofing: IP56
• Power Supply: 12-24 VDC / 3.6-1.8 A
• Size:
  Flush Mount: 256 (H) x 410 (W) x 109 (D) mm
  Tabletop Mount (optional): 282 (H) x 444 (W) x 116 (D) mm
• Weight:
  Flush Mount: 4.8 kg
  Tabletop Mount (optional): 5.5 kg

AIS

• AIS: Up to 100 targets

Furuno DFF1-UHD CHIRP Sounder Module for NavNet
Features:

• Scans across a range of frequencies – 50 kHz +/- 20 kHz, 200
  kHz +/- 25 kHz
• Enhanced depth penetration, resolution and clarity
• Precise separation between bait fish and game fish
• Enhanced ability to distinguish targets from noise using
  improved signal to noise ratio
• Improved bottom tracking at high speeds
• Vastly improved shallow water performance
• Reveals more fish by eliminating surface clutter and
  noise
• Accu-Fish size assessment function tells you the approximate
  size or depth of the fish below your boat
• Bottom Discrimination provides detailed graphical information
  about the make-up of the sea floor: rock, gravel, sand or
  mud

Airmar TM 265 Transom Mount Broadband CHIRP
Features:

• CHIRP technology
• Variable frequency and beamwidth under fish finder
  control
• Depth and fast-response water-temperature sensor
• Extreme deep-water sounding down to 10,000 feet
• Precise detail and resolution
• High-performance
• Exclusive Transducer ID
• Stainless steel kick-up transom bracket included
• Accommodates transom angles between 3 and 21 degrees
• Easily distinguish baitfish, game fish and underwater
  structures

Airmar TM 265 Transom Mount Broadband CHIRP
Specifications:

• Low frequency range: 42-65 kHz
• High frequency range: 130-210 kHz
• No. of broadband ceramics: 8 (internal)
• Housing: Urethane
• Mounting bracket: Stainless steel
• Boat Size: 8 to 12 metres (25 to 40 feet)
• Boat Type: Outboards, I/O
• Hull Type: Fibreglass, wood, metal

What’s in the box:

• 15″ Multifunction display unit
• NZ chart card
• DFF1-UHD Sounder Module
• Airmar TM258 Transducer
• 2x Fuse 5A 125V
• LCD cleaning cloth
• Cable accessories CAP6-BK-PE
• Power cable assembly 3.5m
• 2x Flush mount sponge 12H
• 2x Flush mount sponge 12v
• 2x Flush mount fixture
• EMI core GRFC-9
• Slotted head hex bolt M6x12
• Operator’s guide
• Installation Manual
• Flush mounting template
• Environmental data sheet
