Furuno NavNet TZtouch2 12” GPS/Fishfinder Pro Package

Total control, simply refined

Upgrade your boat with Furuno’s world leading fish finder and
navigational technology. With a sleek all glass front, refined
graphical user interface, built-in RezBoost Fishfinder and internal
GPS antenna, the Furuno NavNet TZtouch2 12.1″ Multifunction
Display is leading the world in marine electronics
technology. Whether you’re searching for hot fishing grounds,
plotting your next route or using your Radar to navigate through
fog, the TZtouch2 is one simplest platform to operate. It delivers
smooth operation while remembering familiar touch gestures.

Ideal for medium to large sized trailer boats, this
GPS/Fishfinder Pro Package has everything you need
to build a navigation suite that is not only functional, but offers
a luxurious look and feel. It comes with an NZ Chart Card, external
GP-330B GPS Receiver, Maretron NMEA2000 Starter Kit and Airmar P66
50/200kHz Transom Mount Transducer. All you need to do is hit the
Add to Order button and install.

GPS Pro Package includes:

• Furuno TZTL12F NavNet TZtouch2 12.1″ Multifunction Display
  (sunlight viewable, touchscreen)
• NZ Chart
• Furuno GP-330B GPS/WAAS Receiver Antenna for NavNet

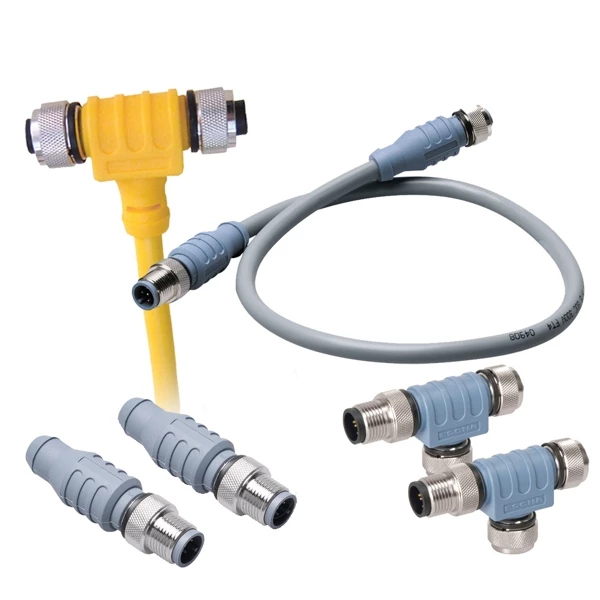

• Maretron N2K Starter Kit
• Airmar P66 Transom Mount Transducer (50/200kHz, Depth and
  Temperature)
• Installation hardware (Mounting bracket, cables, etc.)

All about usability

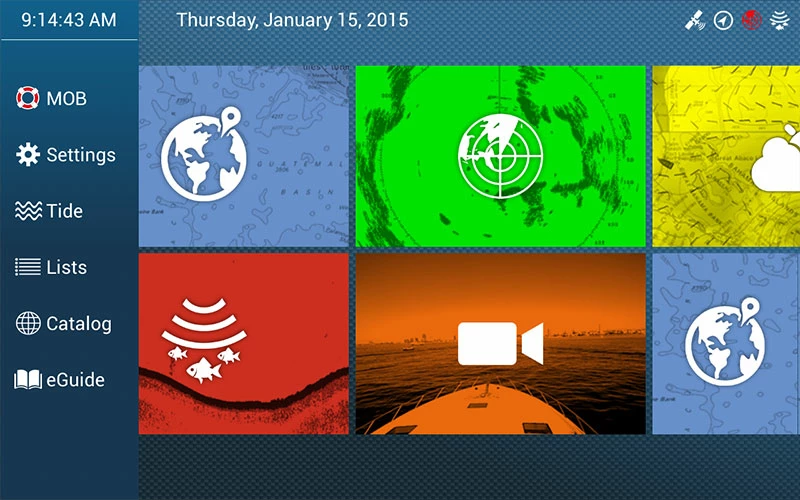

The newly refined graphical user interface makes operation a
breeze! Accessing different displays is achieved by tapping on the
Home icon, or utilising the new “Edge Swipe” motion. Swiping from
the left edge reveals the NavData panel, where you can customise
content to simplify navigation and chart usage. From here, you can
set the autopilot, check tide information and much more. Swiping up
from the bottom of the screen unveils the new Layers menu, a
practical way of changing settings on the fly without having to
venture into deeper menu systems.

GPS and Fishfinder
A 56-channel Furuno GPS Receiver is built into the display. You can
connect an external antenna for redundancy, but the primary GPS
receiver is built-in, saving you money on additional equipment and

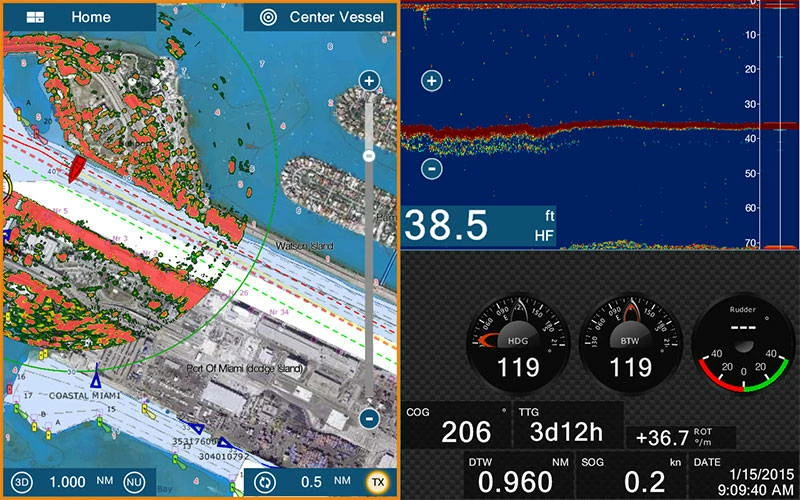

installation cost. The built-in Fish Finder is a dual-frequency
(50/200kHz), 600W/1kW power output sounder. It includes Furuno’s
unique Bottom Discrimination and AccuFish modes, and also
incorporates another new Furuno proprietary Fish Finder technology,
called RezBoost. RezBoost is a revolutionary new feature that
utilizes Furuno’s exclusive digital signal processing protocol to
produce fantastic target resolution and separation.

Networking

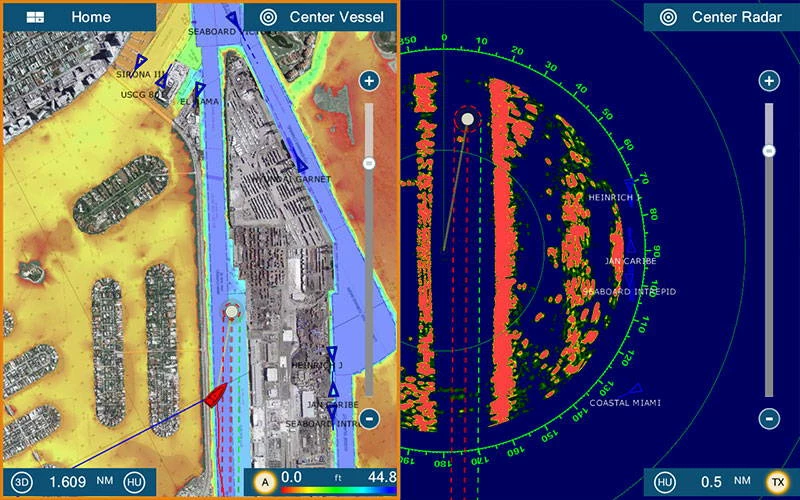

Add a variety of UHD Radars, from a 4kW Dome up to a 25kW Open
Array. As with NavNet TZtouch, you can integrate, display, and
control the NavPilot Autopilot and Furuno’s new FI70 Instrument.
Both of these products have displays that match TZtouch2, giving
your helm a beautiful all-glass finish. Additional sensors that can
be added to the network include AIS, Weather Fax, Sirius/XM
Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as
NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183
output port to send data to legacy systems.

The GPS Receiver

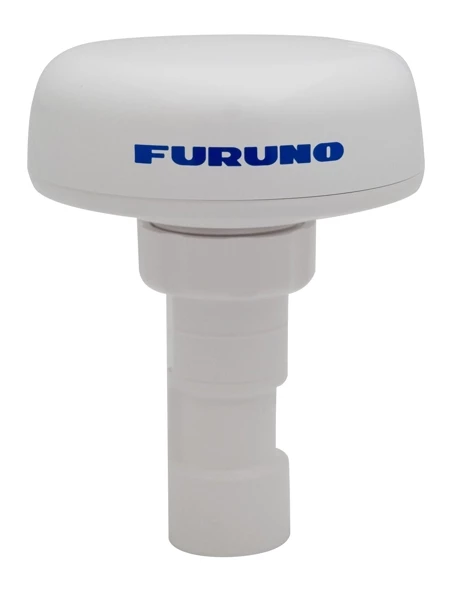

The Furuno GP-330B GPS/WAAS Receiver Antenna is a
high performance GPS Receiver designed for any type of vessel. This
compact and cost effective receiver offers accurate position fixes
within 3 metres with the WAAS mode activated. The GP-330B is
capable of data output in CAN bus/NMEA2000 format, making it an
ideal GPS sensor for use with NavNet 3D systems. The sensor comes
with all of the hardware required for deck- or mast-mounting
solutions. A 6-metre cable with NMEA2000 connector is supplied as
standard.

The N2K Starter Kit
Building a NMEA 2000 Network onboard? Save when buying this
Maretron NMEA 2000 Starter Kit. Everything you
need for a basic NMEA 2000 Bus/Network or to start a complex
one.

The Transducer
The Airmar P66 is the best performing and most popular,
transom-mount transducer multisensor in the market for many
reasons. Foremost, the 50 kHz and 200 kHz, oversized, ceramic
element produces focused beams, highlighting detail in the water
column and in the bottom structure.

Furuno NavNet TZtouch2 12.1″ Multifunction Display
Features:

• Multi Touch Control
• Ultra High Definition
• TruEcho CHIRP
• Furuno Digital Filter
• Bottom Discrimination
• ACCU-FISH
• RezBoost
• GPS internal antenna
• Internal fishfinder
• Auto Tuning (Sensitivity)
• Target Tracking
• AIS
• Enhanced Sunlight Viewable
• Bonded LCD
• Polatised Friendly
• Ethernet Plug&Play
• CAN bus
• Video In/Out
• NMEA2000 Certified
• Display size: 12.1”
• Resolution: WXGA 1280 x 800
• GPS/WAAS: 56 Channel GPS receiver built in
• Fish Finder: 50/200kHz, 600W or 1kW
• Memory: 30,000 User Points, 30,000 Track Points, 200 Planned
  Routes with 500 Points/Route
• Interface: 1 Port, CanBUS/NMEA2000
• LAN: 1 Port, Ethernet 100 BASE-TX
• Wireless LAN: IEEE802.11B, 2.4GHz band
• USB: 1 Port, USB 2.0
• Video Out: 1 Port, HDMI
• Video In: 2 Ports, NTSC/PAL
• Waterproofing: IP56
• Power: 12-24 VDC, 3.0-1.5 A

Furuno NavNet TZtouch2 12.1″ Multifunction Display
Specifications:

Display

• Display Unit: 12.1″ Wide Colour TFT multi touch LCD
• Screen Brightness: 1300cd/? (typical)
• Screen Resolution: WXGA 1280 x 800 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese
  (simplified Chinese characters), Japanese

Plotter

• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (heading input
  required)
• Target Tracking: Max 100 Targets (heading input
  required)

Fishfinder (Internal)

• Transmit Frequency: 50/200 kHz
• Transmission Power: 600 or 1kW (Matching box MB-1100 required
  for some Furuno transducers)
• Display Mode: RezBoost, ACCU-FISH, Bottom Discrimination,
  A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom
  Lock

GPS / WAAS (Internal)

• Receiving Type: GPS: 56 Channels
• SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 mHz)
• Accuracy: GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max

Interface

• CAN bus: 1 Port (NMEA2000)
• NMEA0183: 1 Integrated Output Port
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0)
• Video Output: 1 Port (HDMI)
• Video Input: 2 Ports (NTSC/PAL)
• AUX I/O: 1 Port (External Event/MOB Input/Operator
  Fitness/Alarm Output)
• SD Card Slot: 1 Slot (Micro SDXC, rear) 2 Slots Card Unit
  (optional)
• Wireless LAN: IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz
  band
• Transducer: 1 Port
• Waterproofing: IP56
• Power Supply: 12-24 VDC 3.0-1.5 A
• Size:
  Flush Mount: 217 (H) x 325 (W) x 105 (D) mm
  Tabletop Mount (optional): 243 (H) x 365 (W) x 112 (D) mm
• Weight:
  Flush Mount: 3.7 kg
  Tabletop Mount (optional): 3.8 kg

AIS

• AIS: Up to 100 targets

Furuno GP-330B GPS/WAAS Receiver Antenna
Features:

• Straightforward “Plug and Play” installation
• High Accuracy, 14 Parallel Channel Receiver with Twelve
  Dedicated GPS Channels and Two Dedicated SBAS (WAAS/EGNOS/MSAS)
  Channels
• NMEA2000 Certified GPS Antenna Sensor
• Fast Start Up (1 minute Cold Start Time-to-First-Fix)
• Position updated every second
• Unique “Pin-Enabled” Termination Resistor allows simple
  NMEA2000 Backbone or Drop Wiring configurations
• Space-saving installation
• Ideal position-fixing sensor for NavNet 3D series
• Direct connection to any Furuno DRS

Furuno GP-330B GPS/WAAS Receiver Antenna
Specifications:

GPS/SBAS (WAAS/EGNOS/MSAS)

• Receiving Type: Twelve discrete channels, C/A code,
  all-in-view, SBAS (WAAS/EGNOS/MSAS)
• Receiving Frequency: L1 （1575.42 MHz）
• Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m

Plotter

• Chart: WGS-84, NAD-27 and others

Others

• Waterproofing: IEC60529 IP56
• Power Supply: 12 VDC、max 0.175 A
• Weight: 0.22　kg

What’s in the box:

• GPS Receiver Antenna Unit
• Flush mount kit
• Pipe mount kit
• Deck mount kit
• 6m NMEA2000 cable assembly

Maretron N2K Starter Kit includes:

• 1x CF-SPWR05-CF Micro/Mid Powertap Tee
• 2x CM-CF-CF Micro T
• 2x TR-CM Micro Terminator Resistors
• 1x CM-CG1-CF-03.0 Double ended Cordset 0.5m

Airmar P66 Transom Mount Transducer Features:

• Depth and temperature in one housing
• Plastic kick-up bracket
• Accommodates transom angles between 2° and 20°
• Recessed waterflow channel protects paddlewheel Transducer can
  be removed from bracket without the use of tools for easy service
  and storage
• Boat Size: Up to 12 m (40’)

What’s in the box:

• 12″ Multifunction display unit
• NZ chart card
• Airmar P66 transom mount transducer
• 2x Fuse 5A 125V
• LCD cleaning cloth
• Cable accessories CAP6-BK-PE
• Power cable assembly 3.5m
• 2x Flush mount sponge 12H
• 2x Flush mount sponge 12v
• 2x Flush mount fixture
• EMI core GRFC-9
• Slotted head hex bolt M6x12
• Operator’s guide
• Installation Manual
• Flush mounting template
• Environmental data sheet
