Furuno NavNet TZTouch2 12” GPS/Fishfinder P66 Package

Total control, simply refined

Upgrade your boat with Furuno’s world leading fish finder and
navigational technology. With a sleek all glass front, refined
graphical user interface, built-in RezBoost Fishfinder and internal
GPS antenna, the Furuno NavNet TZTouch2 12.1″ Multifunction
Display is leading the world in marine electronics
technology. Whether you’re searching for hot fishing grounds,
plotting your next route or using your Radar to navigate through
fog, the TZTouch2 is one simplest platform to operate. It delivers
smooth operation while remembering familiar touch gestures. Ideal
for medium to large sized trailer boats, this unit lets you build a
navigation suite that is not only functional, but offers a
luxurious look and feel.

Package Includes:

• Furuno NavNet TZTouch2 12.1” GPS/Fishfinder Unit
• Pre-loaded NZ Chart
• Airmar P66 Transom Mount Transducer

All about usability

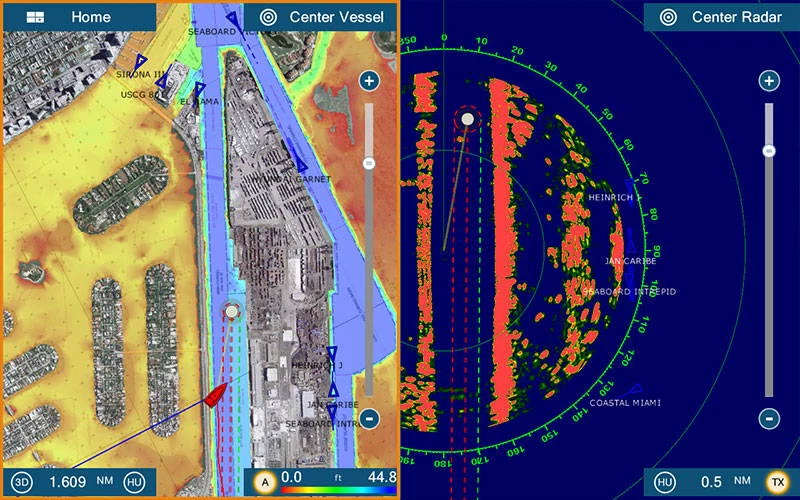

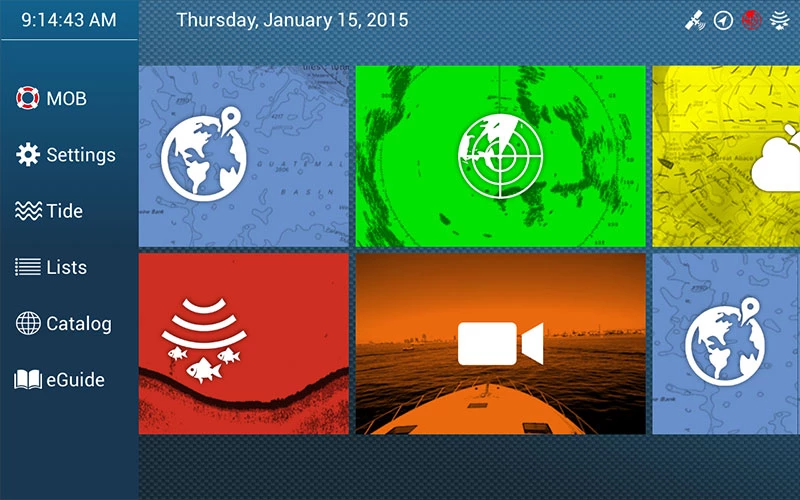

The newly refined graphical user interface makes operation a
breeze! Accessing different displays is achieved by tapping on the
Home icon, or utilising the new “Edge Swipe” motion. Swiping from
the left edge reveals the NavData panel, where you can customise
content to simplify navigation and chart usage. From here, you can
set the autopilot, check tide information and much more. Swiping up
from the bottom of the screen unveils the new Layers menu, a
practical way of changing settings on the fly without having to
venture into deeper menu systems.

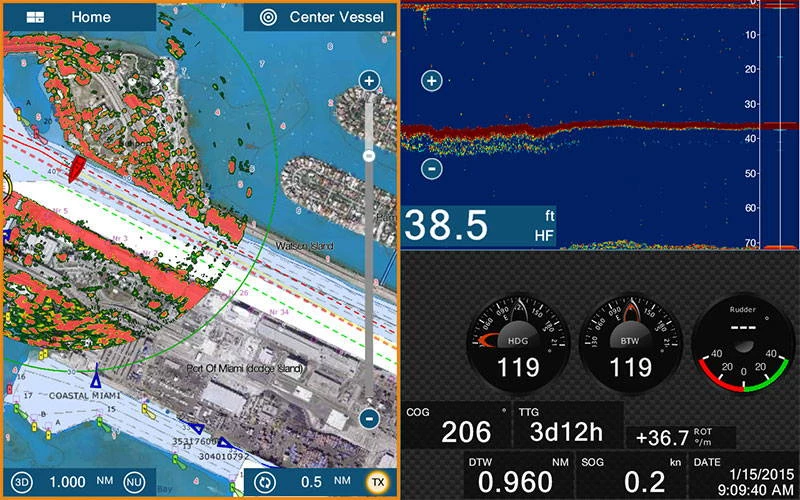

GPS and Fishfinder
A 56-channel Furuno GPS Receiver is built into the display. You can
connect an external antenna for redundancy, but the primary GPS
receiver is built-in, saving you money on additional equipment and
installation cost. The built-in Fish Finder is a dual-frequency
(50/200kHz), 600W/1kW power output sounder. It includes Furuno’s
unique Bottom Discrimination and AccuFish modes, and also
incorporates another new Furuno proprietary Fish Finder technology,
called RezBoost. RezBoost is a revolutionary new feature that
utilizes Furuno’s exclusive digital signal processing protocol to
produce fantastic target resolution and separation.

Networking
Add a variety of UHD Radars, from a 4kW Dome up to a 25kW Open
Array. As with NavNet TZTouch, you can integrate, display, and
control the NavPilot Autopilot and Furuno’s new FI70 Instrument.
Both of these products have displays that match TZTouch2, giving
your helm a beautiful all-glass finish. Additional sensors that can
be added to the network include AIS, Weather Fax, Sirius/XM
Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as
NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183
output port to send data to legacy systems.

The Transducer

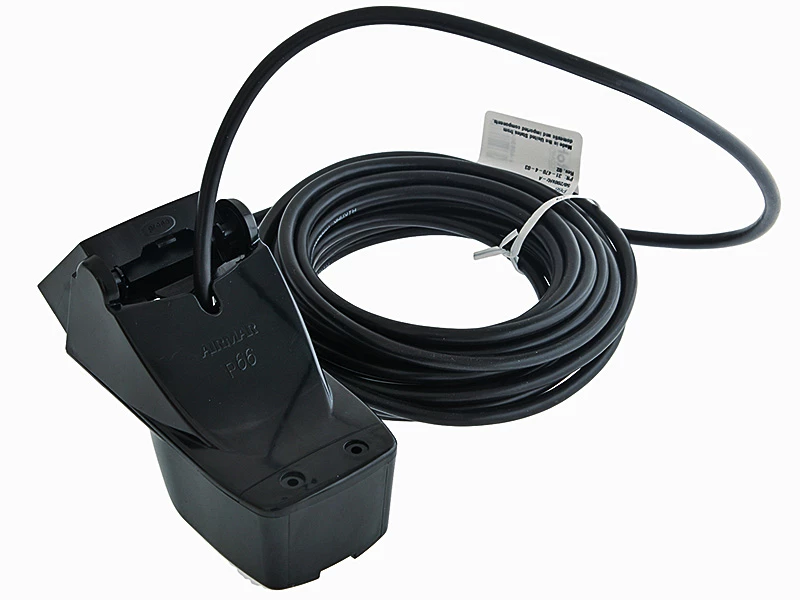

The Airmar P66 Transom Mount Transducer is the
best performing and most popular transom-mount multisensor in the
market for many reasons. Foremost, the 50 kHz and 200 kHz,
oversized, ceramic element produces focused beams highlighting
detail in the water column and on the bottom surface. Because of
its hydrodynamic shape, water coming off the transom flows smoothly
under the transducer face. This results in accurate, high-speed,
depth and speed readings and clear display images. Going a step
further, the P66 Multisensor also incorporates a patented
noise-suppression system. The result is a 5 to 8 knot (6 to 9 MPH)
improvement over standard construction through improved shielding
from noise and vibration. The plastic release bracket lets the P66
rotate up to protect the housing if struck by and object while
underway.

Furuno NavNet TZTouch2 12.1″ Multifunction Display
Features:

• Multi Touch Control
• Ultra High Definition
• TruEcho CHIRP
• Furuno Digital Filter
• Bottom Discrimination
• ACCU-FISH
• RezBoost
• GPS internal antenna
• Internal fishfinder
• Auto Tuning (Sensitivity)
• Target Tracking
• AIS
• Enhanced Sunlight Viewable
• Bonded LCD
• Polatised Friendly
• Ethernet Plug&Play
• CAN bus
• Video In/Out
• NMEA2000 Certified
• Display size: 12.1”
• Resolution: WXGA 1280 x 800
• GPS/WAAS: 56 Channel GPS receiver built in
• Fish Finder: 50/200kHz, 600W or 1kW
• Memory: 30,000 User Points, 30,000 Track Points, 200 Planned
  Routes with 500 Points/Route
• Interface: 1 Port, CanBUS/NMEA2000
• LAN: 1 Port, Ethernet 100 BASE-TX
• Wireless LAN: IEEE802.11B, 2.4GHz band
• USB: 1 Port, USB 2.0
• Video Out: 1 Port, HDMI
• Video In: 2 Ports, NTSC/PAL
• Waterproofing: IP56
• Power: 12-24 VDC, 3.0-1.5 A

Furuno NavNet TZTouch2 12.1″ Multifunction Display
Specifications:

Display

• Display Unit: 12.1″ Wide Colour TFT multi touch LCD
• Screen Brightness: 1300cd/? (typical)
• Screen Resolution: WXGA 1280 x 800 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portugese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese
  (simplified Chinese characters), Japanese

Plotter

• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (heading input
  required)
• Target Tracking: Max 100 Targets (heading input
  required)

Fishfinder (Internal)

• Transmit Frequency: 50/200 kHz
• Transmission Power: 600 or 1kW (Matching box MB-1100 required
  for some Furuno transducers)
• Display Mode: RezBoost, ACCU-FISH, Bottom Discrimination,
  A-Scope, Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom
  Lock

GPS / WAAS (Internal)

• Receiving Type: GPS: 56 Channels
• SBAS: 1 channel (C/A mode, WAAS)
• Receiving Frequency: L1 (1575.42 mHz)
• Accuracy: GPS: 10 m Max, WAAS: 3 m Max, MSAS: 7 m Max

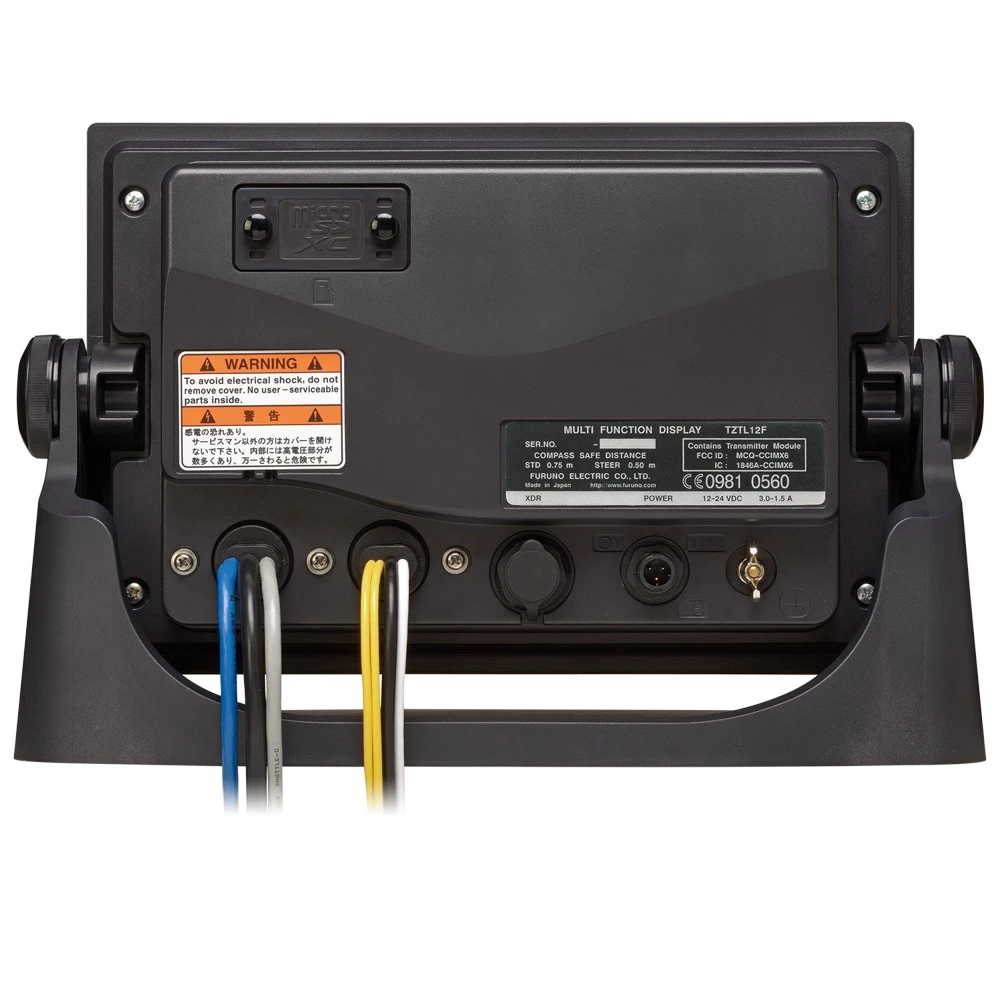

Interface

• CAN bus: 1 Port (NMEA2000)
• NMEA0183: 1 Integrated Output Port
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0)
• Video Output: 1 Port (HDMI)
• Video Input: 2 Ports (NTSC/PAL)
• AUX I/O: 1 Port (External Event/MOB Input/Operator
  Fitness/Alarm Output)
• SD Card Slot: 1 Slot (Micro SDXC, rear) 2 Slots Card Unit
  (optional)
• Wireless LAN: IEEE802.11b/g/n, Transmit Frequency: 2.4 GHz
  band
• Transducer: 1 Port
• Waterproofing: IP56
• Power Supply: 12-24 VDC 3.0-1.5 A
• Size:
  Flush Mount: 217 (H) x 325 (W) x 105 (D) mm
  Tabletop Mount (optional): 243 (H) x 365 (W) x 112 (D) mm
• Weight:
  Flush Mount: 3.7 kg
  Tabletop Mount (optional): 3.8 kg

AIS

• AIS: Up to 100 targets

Airmar P66 Transom Mount Transducer Features:

• Depth and Temperature only
• Plastic kick-up bracket
• Square four-blade paddlewheel improves linearity, especially at
  low speeds
• Fits transom angles between 2 degrees to 20 degrees
• Transducer can be removed from bracket without the use of tools
  for easy service
• 10 metre (33′) cable length standard for most versions
• Boat Size: Up to 12m (40′)

Airmar P66 Transom Mount Transducer
Specifications:

• Frequency: 50/200 kHz
• Cone: 50 kHz-45 degrees, 200 kHz-11 degrees
• RMS Power: 600 W
• Maximum Depth Range:
  50 kHz-235 m to 353 m (800′ to 1,200′)
  200 kHz-118 m to 206 m (400′ to 700′)
• Furuno 10-Pin Female Connector

What’s in the box:

• 12″ Multifunction display unit
• NZ chart card
• Airmar P66 Transducer
• 2x Fuse 5A 125V
• LCD cleaning cloth
• Cable accessories CAP6-BK-PE
• Power cable assembly 3.5m
• 2x Flush mount sponge 12H
• 2x Flush mount sponge 12v
• 2x Flush mount fixture
• EMI core GRFC-9
• Slotted head hex bolt M6x12
• Operator’s guide
• Installation Manual
• Flush mounting template
• Environmental data sheet
