Furuno NavNet TZTouch 9” GPS/Fishfinder Pro Package

Stress-free operation redefined

Ideal for medium to large sized trailer boats, the Furuno
NavNet 9” TZTouch GPS/Fishfinder Pro Package is perfect
if you want to maximise the GPS and fishfinding function of the 9″
TZT9 NavNet TZtouch unit. This package comes with a GPS Antenna
Receiver for a more accurate positioning, an NZ chart plus the
Furuno Bottom Discrimination Sounder Module to enable the NavNet’s
fishfinding feature. All you need is to add a top quality
transducer and you’re good to go.

GPS Package includes:

• Furuno TZT9 NavNet TZtouch 9” Multifunction Display
• Furuno GP-330B GPS/WAAS Receiver Antenna for NavNet
• Furuno BBDS1 Bottom Discrimination Sounder
• NZ Chart Card
• Installation materials

The Multifunction Display
Furuno elevates marine touch screen technology to a whole new level
with the industry’s first multi touch display. The Furuno
TZT9 NavNet TZtouch 9” Multifunction Display comes with
an anti-reflective glass coating that makes the screen sunlight
viewable and polarised friendly.

TZtouch brings you pinch-to-zoom capability as well as multi-touch
features gestures for the most intuitive navigation experience.
Furuno’s TimeZero technology delivers chart processing like no
other – seamless chart handling, zooming and panning without the
screen disappearing. It redefines the meaning of stress-free
operation by smoothing out your chart handling actions. What’s
more, the TZtouch multifunction display also has the ability to
interface with Apple iPads, iPhones and iPod touch giving you the
ability to wirelessly and conveniently view and control your
TZT9.

Bird mode, track birds to find the best fishing
grounds
DRS6A X-Class/DRS4D-NXT features a new bird mode that helps you
identify birds congregating around schools of fish at the sea
surface. Bird mode works by adjusting the gain and sea settings
automatically for optimal visibility.

Target Analyser function utilising Doppler technology spots
hazardous targets instantly with DRS4D-NXT
The DRS4D-NXT Solid-State Doppler Radar is the first Radar in the
world to use the new FURUNO exclusive Target Analyser function.
Targets that are approaching your vessel automatically change
colour to help you identify when they are hazardous. Green echoes
are targets that stay stationary or are moving away from you, while
red echoes are hazardous targets that are moving towards your
vessel.

The GPS Receiver
The Furuno GP-330B GPS/WAAS Receiver Antenna is a
high performance GPS Receiver designed for any type of vessel. This
compact and cost effective receiver offers accurate position fixes
within 3 metres with the WAAS mode activated. The GP-330B is
capable of data output in CAN bus/NMEA2000 format, making it an
ideal GPS sensor for use with NavNet 3D systems. The sensor comes
with all of the hardware required for deck- or mast-mounting
solutions. A 6-metre cable with NMEA2000 connector is supplied as
standard.

The Sounder Module

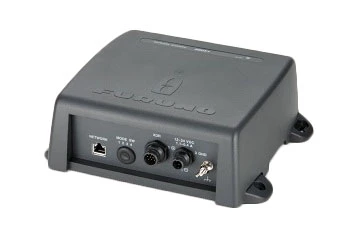

The Furuno BBDS1 Bottom Discrimination Sounder is
a new network fishfinder for NavNet 3D and NavNet TZtouch that
features an all new bottom discrimination function, as well as the
FDF (Furuno Digital Filter) capability of the DFF1. The BBDS1
determines the bottom structure and separates them into the
following categories: mud, sand, gravel and rock. This is achieved
by analysing echo characteristics from the bottom components such
as particle size and hardness.

Connect the BBDS1 to your NavNet 3D or NavNet TZtouch network and
get ready for your NavNet system to provide you with valuable
information to locate rich fishing grounds, boosting your
catch.

Choose between 2 Bottom Discrimination Display Modes
There are two bottom discrimination display modes to select from,
Standard Mode and Probability Mode. In Standard Mode, the most
probable materials on the bottom (mud, sand, gravel or rock) are
indicated in either graphic mode or a 4-colour bar on the bottom of
the display.

Because bottom material can change frequently and can sometimes be
difficult to identify, Probability Mode shows you what material the
bottom has the greatest chance of consisting of by displaying the
possible bottom materials proportionally within the 4-colour
bar.

Furuno TZT9 NavNet TZtouch 9” Multifunction Display
Features:

• The marine industry’s first multi touch screen MFD
• Easy, intuitive and slick operation with touch screen and
  RotoKey
• Sunlight viewable 9in WVGA (800×480 pixels) multi touch
  display
• Seamless, instant chart/radar redraw with TimeZero
  Technology
• Detailed 3D and 2D charts and high resolution satellite
  images
• Luxury, piano black wide screen coated with glass
  panel
• Simple, flat display with minimum mechanical keys
• Wireless LAN connectivity for weather information and automatic
  chart unlocking
• NavNet Remote and NavNet Viewer apps for iOS and Android
  devices
• Tablet & smartphone apps
• WiFi hotspot connectivity
• Anti-reflective glass coating
• Built on an Ethernet network
• NMEA2000 network interface
• Network up to 6 TZtouch displays
• Dual SD card slots
• Preloaded with free official NOAA raster and vector
  charts
• Optional C-Map by Jeppesen and Datacore by Navionics
  vector
• Home key for immediate access to the menu and a carousel of
  your customized display configurations
• Save up to 30,000 user points, 30,000 ships track points and
  1,000 planned routes with up to 500 waypoints per route

Furuno TZT9 NavNet TZtouch 9” Multifunction Display
Specifications:

Display

• Display Unit: 9″ wide Colour TFT multi touch LCD
• Screen Brightness: 900 cd/㎡
• Screen Resolution: WVGA 800 x 480 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portuguese, Swedish, Danish, Norwegian,
  Finnish, Greek, Chinese (simplified Chinese characters),
  Japanese

Plotter

• Position Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m
• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (Heading input
  required)
• Echo Trail: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15
  mins, 30 mins and continuous
• Target Tracking: Max 100 Targets (Heading input
  required)

Others

• AIS: Up to 100 targets

Interface

• CAN bus: 1 Port
• LAN: 1 Port (100 BASE-TX)
• USB Port: 1 Port (USB2.0)
• Video Output: 1 Port (DVI-D)
• Video Input: 2 Ports (NTSC/PAL)
• SD Card Slot: 2 Slots (SDXC card – supports up to
  128GB)
• Waterproofing: IP56 (with connector cover), IP22 (with
  connector boot)
• Power Supply: 12-24 VDC, 42 W (3.5 – 1.8 A)
• Size: Tabletop mount: 196 (H) x 326 (W) x 179 (D)
• Flush mount: 162 (H) x 293 (W) x 168 (D)
• Weight: Tabletop mount: 4.7 kg
• Flush mount: 4.5 kg

Furuno GP-330B GPS/WAAS Receiver Antenna
Features:

• Straightforward “Plug and Play” installation
• High Accuracy, 14 Parallel Channel Receiver with Twelve
  Dedicated GPS Channels and Two Dedicated SBAS (WAAS/EGNOS/MSAS)
  Channels
• NMEA2000 Certified GPS Antenna Sensor
• Fast Start Up (1 minute Cold Start Time-to-First-Fix)
• Position updated every second
• Unique “Pin-Enabled” Termination Resistor allows simple
  NMEA2000 Backbone or Drop Wiring configurations
• Space-saving installation
• Ideal position-fixing sensor for NavNet 3D series
• Direct connection to any Furuno DRS

Furuno GP-330B GPS/WAAS Receiver Antenna
Specifications:

GPS/SBAS (WAAS/EGNOS/MSAS)

• Receiving Type: Twelve discrete channels, C/A code,
  all-in-view, SBAS (WAAS/EGNOS/MSAS)
• Receiving Frequency: L1 （1575.42 MHz）
• Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m

Plotter

• Chart: WGS-84, NAD-27 and others

Others

• Waterproofing: IEC60529 IP56
• Power Supply: 12 VDC、max 0.175 A
• Weight: 0.22　kg

Furuno BBDS1 Bottom Discrimination Sounder
Features:

• Frequency: 50/200 kHz alternately transmitted
• Choose between 2 Bottom Discrimination Display Modes: Standard
  or Probability mode
• Output power: 600 W/1 kW
• Power supply: 12-24 VDC: 1.1-0.4 A (in output power of 1
  kW)
• Temperature : -15 to + 55 degree Celsius (in
  operation)
• Relative humidity: 93% at 40 degree Celsius
• Waterproofing: IP20 (not waterproofed)

Required Conditions for Bottom Discrimination

• Detection range: 5-100 m
• Boat speed: 0-10 kn
• Transducer mounting: Thru-hull or transom mount only
• MFD8/12/BB software: v2.06 or later

Notes:

• The result shown by this function may sometimes be
  different from the actual bottom components.

• For best performance, do not use in-hull mounted
  transducers with the BBDS1.

• The BBDS1 may show an incorrect ground discrimination
  result, especially when there is a big fish school right under the
  boat. This is because enough echoes may not be received from the
  bottom.

• Materials such as shell, coral, or a sunken ship are
  indicated as the most similar material from the four bottom
  categories: mud, sand, gravel, or rock, according to reflected
  echoes.

• Auto mode is automatically activated when the bottom
  discrimination function is turned on. (Manual mode is not
  selectable.)

• The BBDS1 is not compatible with NavNet 1 or NavNet
  vx2.

• Use appropriate Furuno Transducer recommended for best
  results


What’s in the box:

Furuno TZT9 Unit

• 9″ Multifunction display unit
• 3m Network cable assembly
• 5m Power cable assembly
• 2m Multi cable assembly
• Bracket assembly and cover
• Standard spare parts
• Installation materials, accessories and manuals

Furuno GP-330B Antenna

• GPS Receiver Antenna Unit
• Flush mount kit
• Pipe mount kit
• Deck mount kit
• 6m NMEA2000 cable assembly

Furuno BBDS1 Bottom Discrimination Sounder

• Module
• Installation materials

Furuno BBDS1 Bottom Discrimination Sounder Operator’s
Manual

List of Transducers for Bottom Discrimination Functionality

BBDS1 and DFF1 Mode Switch Settings 12-5-12
