Furuno NavNet TZTouch 9” GPS/Fishfinder Combo

Stress-free operation redefined

Furuno elevates marine touch screen technology to a whole new level
with the industry’s first multi touch display. The Furuno
TZT9 NavNet TZtouch 9” Multifunction Display comes with
an anti-reflective glass coating that makes the screen sunlight
viewable and polarised friendly.

TZtouch brings you pinch-to-zoom capability as well as multi-touch
features gestures for the most intuitive navigation experience.
Furuno’s TimeZero technology delivers chart processing like no
other – seamless chart handling, zooming and panning without the
screen disappearing. It redefines the meaning of stress-free
operation by smoothing out your chart handling actions. What’s
more, the TZtouch multifunction display also has the ability to
interface with Apple iPads, iPhones and iPod touch giving you the
ability to wirelessly and conveniently view and control your
TZT9.

Bird mode, track birds to find the best fishing
grounds
DRS6A X-Class/DRS4D-NXT features a new bird mode that helps you
identify birds congregating around schools of fish at the sea
surface. Bird mode works by adjusting the gain and sea settings
automatically for optimal visibility.

Target Analyser function utilising Doppler technology spots
hazardous targets instantly with DRS4D-NXT
The DRS4D-NXT Solid-State Doppler Radar is the first Radar in the
world to use the new FURUNO exclusive Target Analyser function.
Targets that are approaching your vessel automatically change
colour to help you identify when they are hazardous. Green echoes
are targets that stay stationary or are moving away from you, while
red echoes are hazardous targets that are moving towards your
vessel.

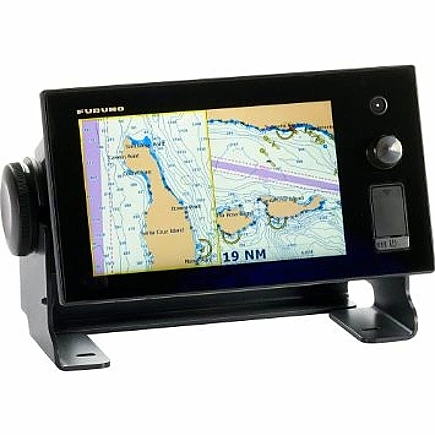

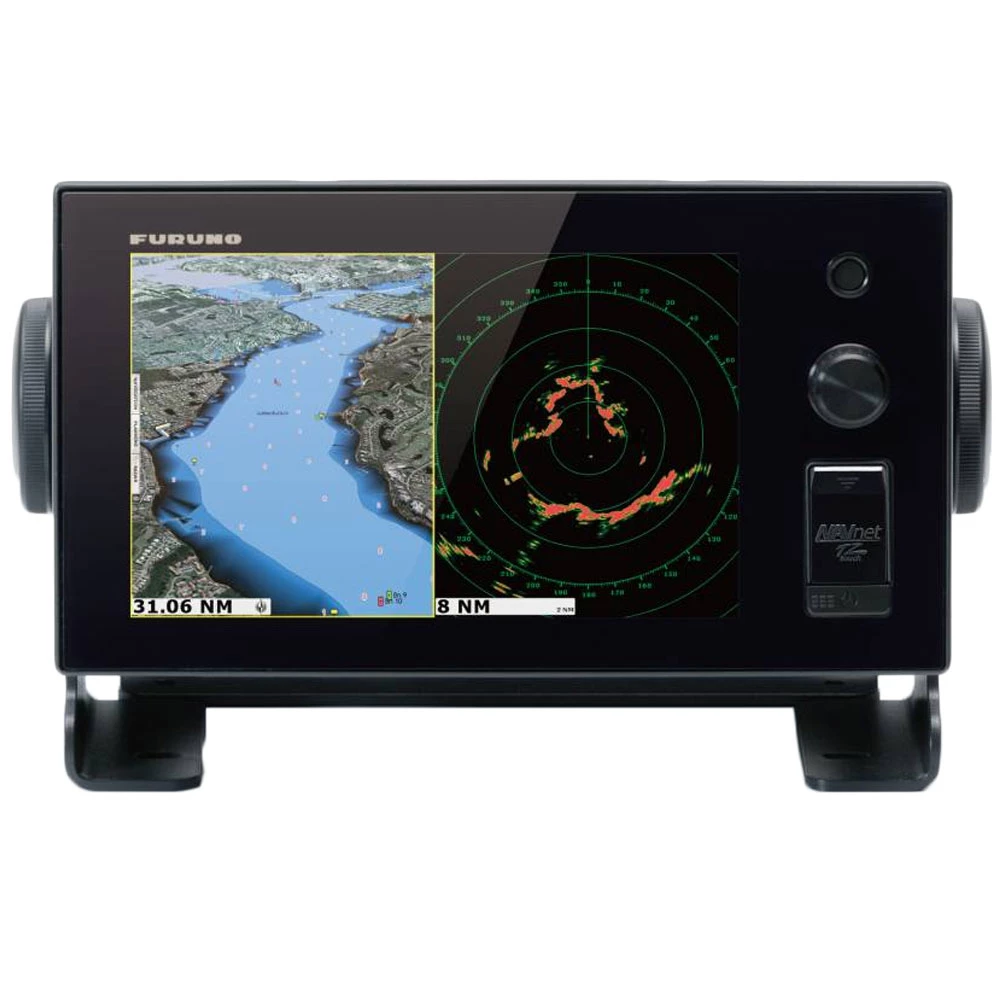

Furuno TZT9 NavNet TZtouch 9” Multifunction Display
Features:

• The marine industry’s first multi touch screen MFD
• Easy, intuitive and slick operation with touch screen and
  RotoKey
• Sunlight viewable 9in WVGA (800×480 pixels) multi touch
  display
• Seamless, instant chart/radar redraw with TimeZero
  Technology
• Detailed 3D and 2D charts and high resolution satellite
  images
• Luxury, piano black wide screen coated with glass
  panel
• Simple, flat display with minimum mechanical keys
• Wireless LAN connectivity for weather information and automatic
  chart unlocking
• NavNet Remote and NavNet Viewer apps for iOS and Android
  devices
• Tablet & smartphone apps
• WiFi hotspot connectivity
• Anti-reflective glass coating
• Built on an Ethernet network
• NMEA2000 network interface
• Network up to 6 TZtouch displays
• Dual SD card slots
• Preloaded with free official NOAA raster and vector
  charts
• Optional C-Map by Jeppesen and Datacore by Navionics
  vector
• Home key for immediate access to the menu and a carousel of
  your customized display configurations
• Save up to 30,000 user points, 30,000 ships track points and
  1,000 planned routes with up to 500 waypoints per route

Furuno TZT9 NavNet TZtouch 9” Multifunction Display
Specifications:

Display

• Display Unit: 9″ wide Colour TFT multi touch LCD
• Screen Brightness: 900 cd/㎡
• Screen Resolution: WVGA 800 x 480 pixels
• Language: English (US & UK), French, Spanish, German, Italian,
  Portuguese, Swedish, Danish, Norwegian,
  Finnish, Greek, Chinese (simplified Chinese characters),
  Japanese

Plotter

• Position Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m
• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Memory Capacity: 30,000 user points, 30,000 points for ship’s
  tracks, 200 planned routes (500 points per route)

Radar

• Display Mode: Head-up, North-up (Heading input
  required)
• Echo Trail: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15
  mins, 30 mins and continuous
• Target Tracking: Max 100 Targets (Heading input
  required)

Others

• AIS: Up to 100 targets

Interface

• CAN bus: 1 Port
• LAN: 1 Port (100 BASE-TX)
• USB Port: 1 Port (USB2.0)
• Video Output: 1 Port (DVI-D)
• Video Input: 2 Ports (NTSC/PAL)
• SD Card Slot: 2 Slots (SDXC card – supports up to
  128GB)
• Waterproofing: IP56 (with connector cover), IP22 (with
  connector boot)
• Power Supply: 12-24 VDC, 42 W (3.5 – 1.8 A)
• Size: Tabletop mount: 196 (H) x 326 (W) x 179 (D)
• Flush mount: 162 (H) x 293 (W) x 168 (D)
• Weight: Tabletop mount: 4.7 kg
• Flush mount: 4.5 kg

What’s in the box:

• 9″ Multifunction display unit
• 3m Network cable assembly
• 5m Power cable assembly
• 2m Multi cable assembly
• Bracket assembly and cover
• Standard spare parts
• Installation materials, accessories and manuals

Note: Chart card and transducer not
included.
