Furuno NavNet TZTouch 14” GPS/Fishfinder Pro Package

Stress-free operation redefined

Ideal for medium to large sized trailer boats, the Furuno
TZT14 NavNet TZtouch 14” Multifunction Pro Package is
perfect if you want to maximise the GPS and fishfinding function of
the 14″ TZT14 NavNet TZtouch unit. This package comes with a GPS
Antenna Receiver for a more accurate positioning, an NZ chart plus
the Furuno Bottom Discrimination Sounder Module to enable the
NavNet’s fishfinding feature. All you need is to add a top quality
transducer and you’re good to go.

GPS Package includes:

• Furuno TZT14 NavNet TZtouch 14” Multifunction Display
• Furuno GP-330B GPS/WAAS Receiver Antenna for NavNet
• Furuno BBDS1 Bottom Discrimination Sounder
• NZ Chart Card
• Installation materials

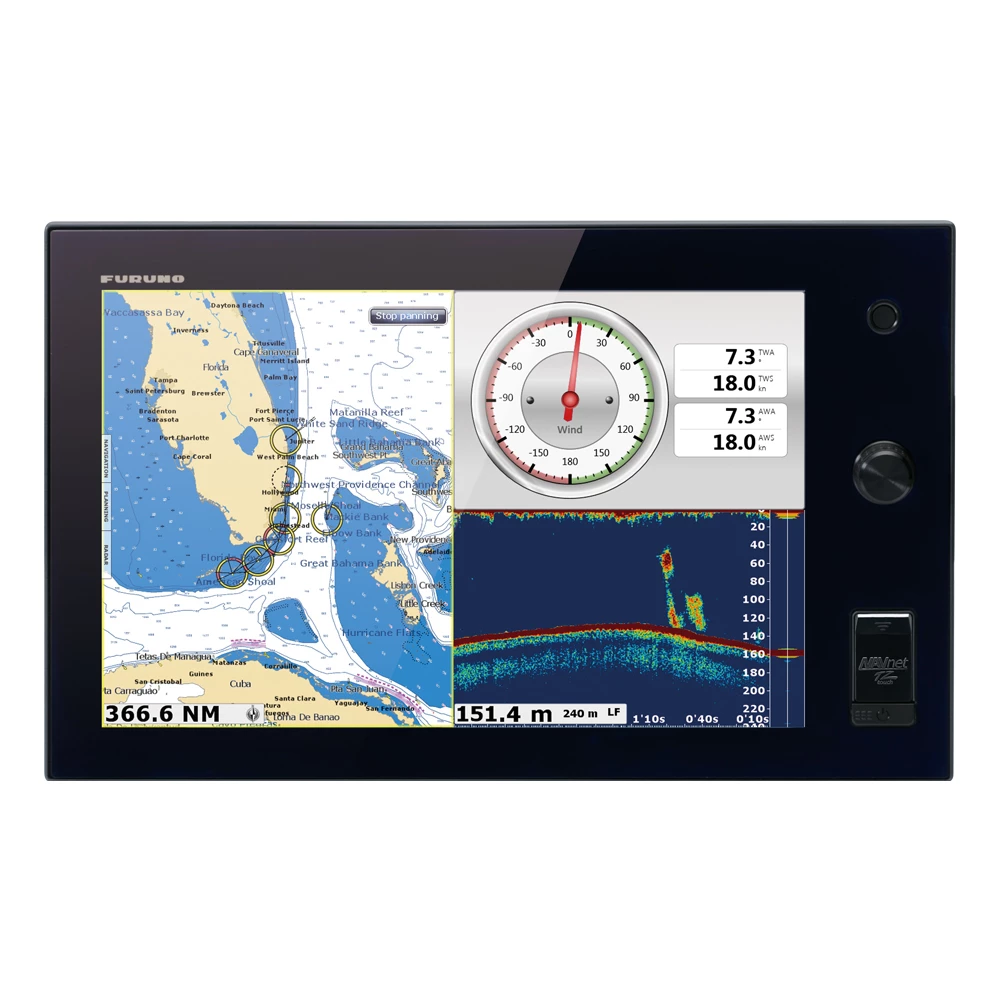

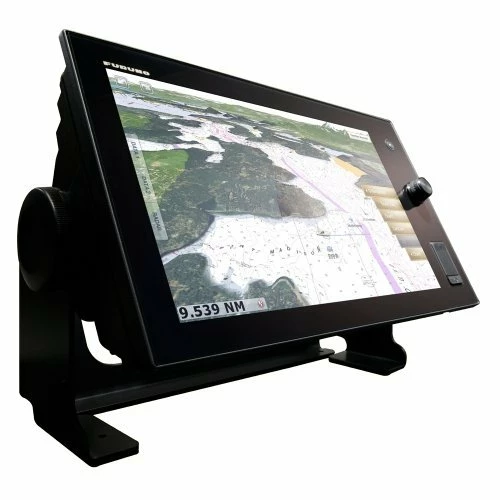

The Multifunction Display
Furuno elevates marine touch screen technology to a whole new level
with the industry’s first multi touch display. The Furuno
TZT14 NavNet TZtouch 14” Multifunction Display comes with
an anti-reflective glass coating that makes the screen sunlight
viewable and polarised friendly.

TZtouch brings you pinch-to-zoom capability as well as multi-touch
features gestures for the most intuitive navigation experience.
Furuno’s TimeZero technology delivers chart processing like no
other – seamless chart handling, zooming and panning without the
screen disappearing. It redefines the meaning of stress-free
operation by smoothing out your chart handling actions. What’s
more, the TZtouch multifunction display also has the ability to
interface with Apple iPads, iPhones and iPod touch giving you the
ability to wirelessly and conveniently view and control your
TZT14.

Bird mode, track birds to find the best fishing
grounds
DRS6A X-Class/DRS4D-NXT features a new bird mode that helps you
identify birds congregating around schools of fish at the sea
surface. Bird mode works by adjusting the gain and sea settings
automatically for optimal visibility.

Target Analyser function utilising Doppler technology spots
hazardous targets instantly with DRS4D-NXT
The DRS4D-NXT Solid-State Doppler Radar is the first Radar in the
world to use the new FURUNO exclusive Target Analyser function.
Targets that are approaching your vessel automatically change
colour to help you identify when they are hazardous. Green echoes
are targets that stay stationary or are moving away from you, while
red echoes are hazardous targets that are moving towards your
vessel.

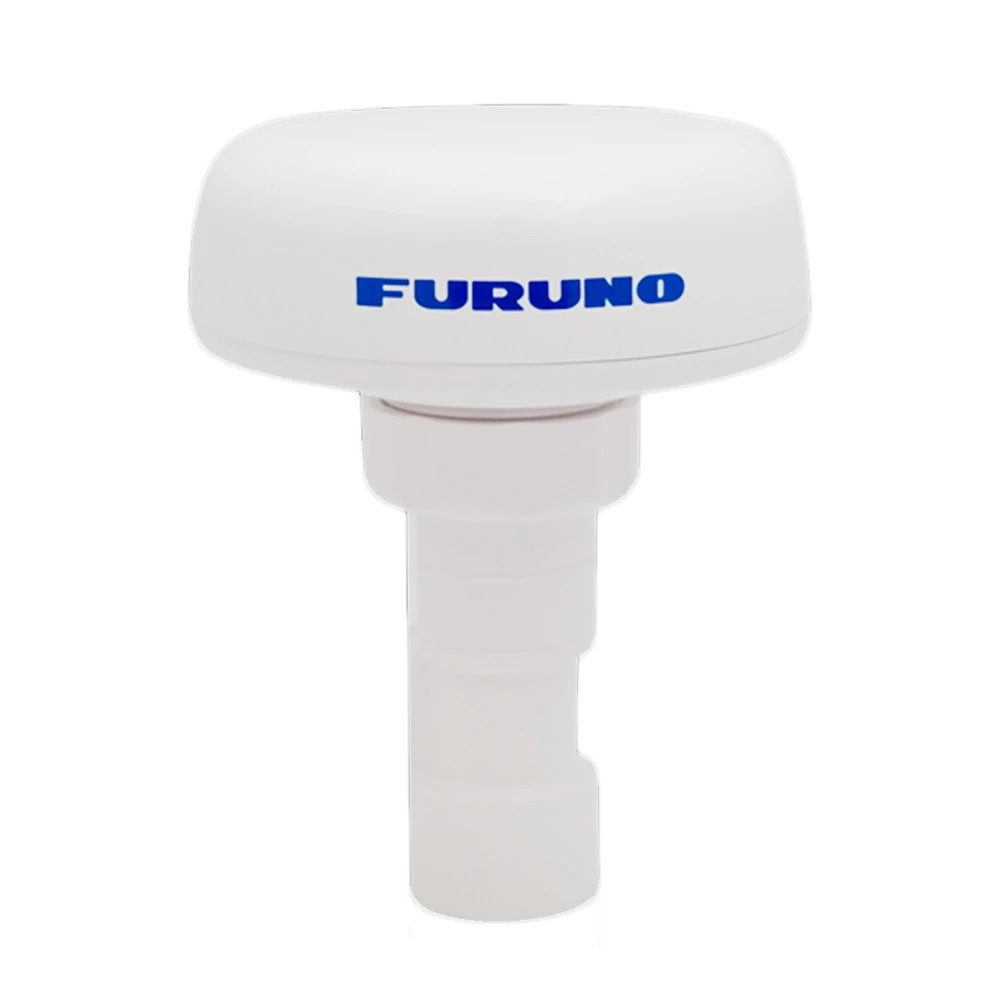

The GPS Receiver
The Furuno GP-330B GPS/WAAS Receiver Antenna is a
high performance GPS Receiver designed for any type of vessel. This
compact and cost effective receiver offers accurate position fixes
within 3 metres with the WAAS mode activated. The GP-330B is
capable of data output in CAN bus/NMEA2000 format, making it an
ideal GPS sensor for use with NavNet 3D systems. The sensor comes
with all of the hardware required for deck- or mast-mounting
solutions. A 6-metre cable with NMEA2000 connector is supplied as
standard.

Furuno TZT14 NavNet TZtouch 14” Multifunction Display
Features:

• Sunlight viewable 14.1 WVGA (1280×800 pixels) multi touch LCD
  display
• Touch screen with multi touch
• Marine weather forecaster
• Tablet & smartphone apps
• WiFi hotspot connectivity
• Anti-reflective glass coating
• Built on an Ethernet network
• NMEA2000 network interface
• Network up to 6 TZtouch displays
• Dual SD card slots
• Preloaded with free official NOAA raster and vector
  charts
• Optional C-Map by Jeppesen and Datacore by Navionics
  vector
• Home key for immediate access to the menu and a carousel of
  your customized display configurations
• Save up to 30,000 user points, 30,000 ships track points and
  1,000 planned routes with up to 500 waypoints per route

Furuno TZT14 NavNet TZtouch 14” Multifunction Display
Specifications:

• Display unit: 14.1in wide color TFT multi touch LCD
• Screen brightness: 900 cd/㎡
• Screen resolution: WVGA 1280 x 800 pixels
• Position accuracy (GPS): 10m
• Position accuracy (MSAS): 7m
• Position accuracy (WAAS): 3m
• Chart: MapMedia mm3d chart (Jeppesen/Navionics/NOAA)
• Target tracking: 30 targets
• AIS: Up to 100 targets
• CAN bus: 1 Port
• LAN: 3 Port (100 BASE-TX)
• USB Port: 1 Port (USB2.0)
• Video output: 1 Port (DVI-D)
• Video input: 2 Ports (NTSC/PAL)
• SD card slot: 2 Slots (SDXC card – supports up to
  128GB)
• Waterproofing: IP56
• Power supply: 12-24vDC, 60W (3.5 – 1.8A)
• Tabletop mount dimension: 273 x 428 x 150 (H x W x D)
• Flush mount dimensions: 245 x 395 x 130 (H x W x D)
• Tabletop mount weight: 8.0kg
• Flush mount weight: 7.1kg
• Echo trail interval: 15s, 30s, 1min, 3mins, 6mins, 15mins,
  30mins and continuous
• Language: English (US & UK), French, Spanish, German, Italian,
  Portuguese, Swedish, Danish, Norwegian, Finnish, Greek, Chinese,
  Japanese

Furuno GP-330B GPS/WAAS Receiver Antenna
Features:

• Straightforward “Plug and Play” installation
• High Accuracy, 14 Parallel Channel Receiver with Twelve
  Dedicated GPS Channels and Two Dedicated SBAS (WAAS/EGNOS/MSAS)
  Channels
• NMEA2000 Certified GPS Antenna Sensor
• Fast Start Up (1 minute Cold Start Time-to-First-Fix)
• Position updated every second
• Unique “Pin-Enabled” Termination Resistor allows simple
  NMEA2000 Backbone or Drop Wiring configurations
• Space-saving installation
• Ideal position-fixing sensor for NavNet 3D series
• Direct connection to any Furuno DRS

Furuno GP-330B GPS/WAAS Receiver Antenna
Specifications:

GPS/SBAS (WAAS/EGNOS/MSAS)

• Receiving Type: Twelve discrete channels, C/A code,
  all-in-view, SBAS (WAAS/EGNOS/MSAS)
• Receiving Frequency: L1 （1575.42 MHz）
• Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m

Plotter

• Chart: WGS-84, NAD-27 and others

Others

• Waterproofing: IEC60529 IP56
• Power Supply: 12 VDC、max 0.175 A
• Weight: 0.22　kg

Furuno BBDS1 Bottom Discrimination Sounder
Features:

• Frequency: 50/200 kHz alternately transmitted
• Choose between 2 Bottom Discrimination Display Modes: Standard
  or Probability mode
• Output power: 600 W/1 kW
• Power supply: 12-24 VDC: 1.1-0.4 A (in output power of 1
  kW)
• Temperature : -15 to + 55 degree Celsius (in
  operation)
• Relative humidity: 93% at 40 degree Celsius
• Waterproofing: IP20 (not waterproofed)

Required Conditions for Bottom Discrimination

• Detection range: 5-100 m
• Boat speed: 0-10 kn
• Transducer mounting: Thru-hull or transom mount only
• MFD8/12/BB software: v2.06 or later

Notes:

• The result shown by this function may sometimes be
  different from the actual bottom components.

• For best performance, do not use in-hull mounted
  transducers with the BBDS1.

• The BBDS1 may show an incorrect ground discrimination
  result, especially when there is a big fish school right under the
  boat. This is because enough echoes may not be received from the
  bottom.

• Materials such as shell, coral, or a sunken ship are
  indicated as the most similar material from the four bottom
  categories: mud, sand, gravel, or rock, according to reflected
  echoes.

• Auto mode is automatically activated when the bottom
  discrimination function is turned on. (Manual mode is not
  selectable.)

• The BBDS1 is not compatible with NavNet 1 or NavNet
  vx2.

• Use appropriate Furuno Transducer recommended for best
  results


What’s in the box:

Furuno TZT14 Unit

• 14″ Multifunction display unit
• 3m Network cable assembly
• 5m Power cable assembly
• 2m Multi cable assembly
• Bracket assembly and cover
• Standard spare parts
• Installation materials, accessories and manuals

Furuno GP-330B Antenna

• GPS Receiver Antenna Unit
• Flush mount kit
• Pipe mount kit
• Deck mount kit
• 6m NMEA2000 cable assembly

Furuno BBDS1 Bottom Discrimination Sounder

• Module
• Installation materials
