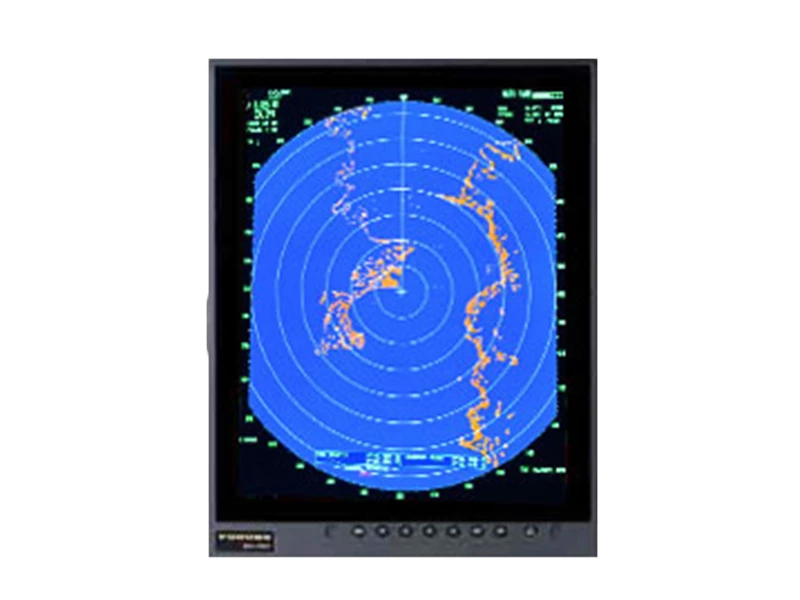

Furuno MU-190V 19” Multi-Purpose Vertical Marine LCD Display

Everything you need in a marine display

The Furuno MU-190V 19” Multi-Purpose Vertical Marine LCD
Display is a multi-purpose, portrait-oriented marine LCD
that features the unmatched quality and reliability that you have
learned to depend on. The MU Display series employs bright, color
TFT LCDs with a special AR (anti-reflective) glass filter to cut
down on annoying glare. With its bright colors, excellent contrast
and wide viewing angles, the monitor is perfect for any tropical
sunlight or low light conditions.

Utilising the latest LED backlight, the MU-190V delivers sharp,
high quality images with bright colours all at a very low power
consumption. The unit is slim in depth, light weight, and is so
compact that it fits right into virtually any console, making
optimum use of your dashboard. A flush mount installation kit is
standard supply for the MU-190V display.

The MU-190V features a wide range of interface options that
include: RGB analog, DVI (Digital Video Interface) and composite
video inputs. These displays may be used as the main display for
the CH37BB models and as a replacement display for the FR2125V
radar series.

Furuno MU-190V 19” Multi-Purpose Vertical Marine LCD
Display Features:

• 19” Portrait Display
• SXGA Resolution (1280×1024)
• Contrast Ratio: 900:1
• Viewing Angle: 80° up/down/left/right
• Built-In Scaler: VGA to SXGA

Furuno MU-190V 19” Multi-Purpose Vertical Marine LCD Display User
Manual

Note: R eplacement display for the FR2125V
radar series requires additional items to convert FR2125V from CRT
display to utilise MU190V.
