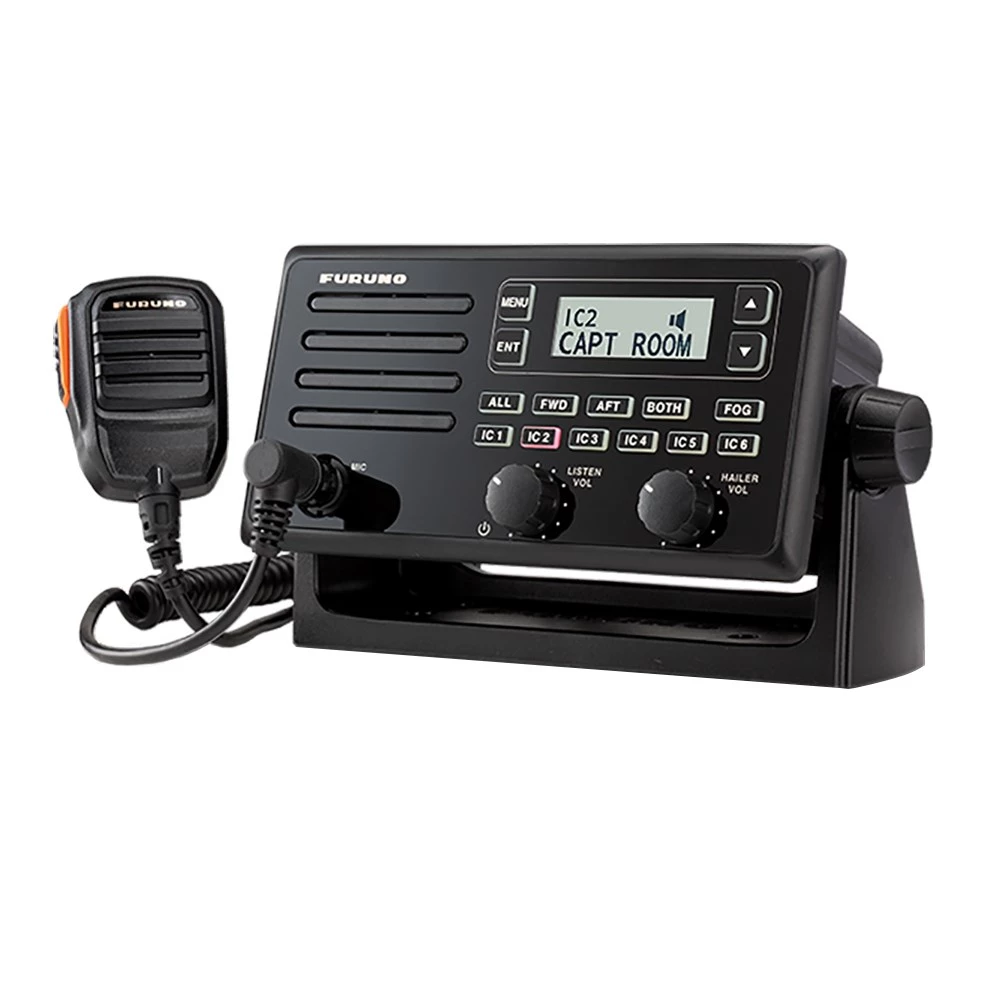

Furuno LH-5000 Loudhailer With LCD 30W

Your safety needs perfect communication

The Furuno LH-5000 Loud Hailer is a powerful Loud
Hailer designed to immediately draw attention to your vessel by
amplifying your voice, or any of eight internationally acknowledged
warning signals, through the horns. The LH-5000 allows you to
instantly notify nearby vessels of your presence and status
regardless of limited visibility conditions, such as thick fog or
dark of night, that might otherwise mask your presence. Using up to
six powerful horn speakers with an impressive output power of 30
watts each, the LH5000 is sure to capture the attention of anyone
in your proximity.

Up to 6 Intercoms for onboard communications and public
address
The LH-5000 can also be connected to onboard intercom speakers*.
Because the Intercom feature is a completely separate function of
the LH-5000, you won’t have worry about the impressive warning
signals being transmitted through the dedicated two-way intercom
speakers! The LH-5000 can also gather distant sounds and amplify
them through its built-in speaker. This feature, called Listen
Back, is incredibly useful for the pilot to hear voices from the
docks, deck, or even other nearby vessels. Other features include
Siren Mode, which can be connected to the vessel’s fire detection
systems, and an Alarm Mode, which is very useful when it comes to
theft detection. You can even connect a CD player or Radio to play
high-volume audio through the horns and intercom speakers.
*Intercom speakers sold separately

Siren Mode
With the Siren Mode, you only have to turn on a switch to
automatically emit a warning signal. You can hail and communicate
with intercoms as well.

Automatic fog horn/warning signal
The lack of visibility due to the fog can represent a very
dangerous situation at sea. With 8 warning signals, including fog
horn, vessels around will be notified of your presence and it will
prevent own ship from collisions.

Listen Back
With the Listen Back feature, the horn speaker works as microphone
and allows two-way communication.

Rename Intercoms
Each intercom’s channel can be renamed. This allows you to
customize the channel’s name so you know who your are talking
to.

Alarm Functions
An alarm sensor turns the LH-5000 into a general alarm system. It
can also be used as a burglar alarm.

Enjoy Music!
By connecting external devices such as a radio or a smartphone, you
can switch on AUX function and share your favorite music through
intercoms and horn speakers!

Furuno LH-5000 Loud Hailer Features:

• Hail, intercom, and alarm functions available
• Built-in high quality speaker
• Eight warning signals
• Auxiliary audio input
• Siren mode
• Automatic fog horn/warning signal
• Listen back
• Rename intercoms
• Alarm Functions
• Enjoy music

Furuno LH-5000 Loud Hailer Specifications:

Audio Output

• Hailer: 30 W, 8 Ω (at 1kHz, 10%)
• Intercom Speaker: 5.0 W, 8 Ω (at 1kHz, 10%)
• Internal Speaker: 2.5 W, 8 Ω (at 1kHz, 10%
• External Speaker: 5.0 W, 8 Ω

Input Impedance

• Microphone: 600 Ω
• Auxiliary Input: 5 kΩ

Power Supply

• Full Load: 12 VDC, 11 A
• Standard: 12 VDC, 5 A
• Standby: 12 VDC, 280 mA

Environment

• Temperature: -15°C to +55°C (IEC 60945)
  Waterproofing: IP67 (IEC60529)

What’s in the Box:

• Loud Hailer x1
• Microphone x1
• Installation Materials and Spare parts
