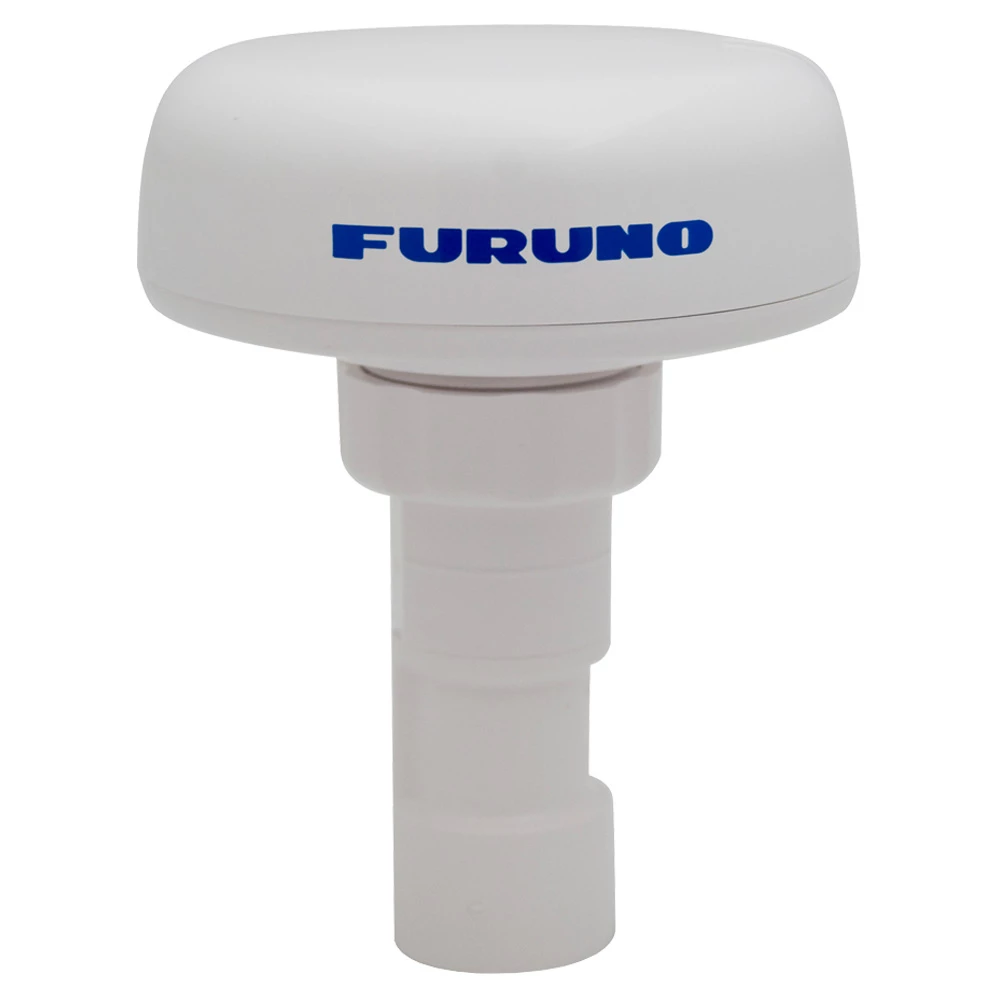

Furuno GP-330B GPS/WAAS Receiver Antenna For NavNet

Get accurate position fixes

The Furuno GP-330B GPS/WAAS Receiver Antenna is a
high performance GPS Receiver designed for any type of vessel. This
compact and cost effective receiver offers accurate position fixes
within 3 metres with the WAAS mode activated. The GP-330B is
capable of data output in CAN bus/NMEA2000 format, making it an
ideal GPS sensor for use with NavNet 3D systems. The sensor comes
with all of the hardware required for deck- or mast-mounting
solutions. A 6-metre cable with NMEA2000 connector is supplied as
standard.

Furuno GP-330B GPS/WAAS Receiver Antenna
Features:

• Straightforward “Plug and Play” installation
• High Accuracy, 14 Parallel Channel Receiver with Twelve
  Dedicated GPS Channels and Two Dedicated SBAS (WAAS/EGNOS/MSAS)
  Channels
• NMEA2000 Certified GPS Antenna Sensor
• Fast Start Up (1 minute Cold Start Time-to-First-Fix)
• Position updated every second
• Unique “Pin-Enabled” Termination Resistor allows simple
  NMEA2000 Backbone or Drop Wiring configurations
• Space-saving installation
• Ideal position-fixing sensor for NavNet 3D series
• Direct connection to any Furuno DRS

Furuno GP-330B GPS/WAAS Receiver Antenna
Specifications:

GPS/SBAS (WAAS/EGNOS/MSAS)

• Receiving Type: Twelve discrete channels, C/A code,
  all-in-view, SBAS (WAAS/EGNOS/MSAS)
• Receiving Frequency: L1 （1575.42 MHz）
• Accuracy: GPS: 10 m, MSAS: 7 m, WAAS: 3 m

Plotter

• Chart: WGS-84, NAD-27 and others

Others

• Waterproofing: IEC60529 IP56
• Power Supply: 12 VDC、max 0.175 A
• Weight: 0.22　kg

What’s in the box:

• GPS Receiver Antenna Unit
• Flush mount kit
• Pipe mount kit
• Deck mount kit
• 6m NMEA2000 cable assembly
