Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder With CMAP 4D NZ Chart Card

Powerful technology in a compact user-friendly touchscreen unit

The Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder is a user-friendly and easy-to-install package featuring multi-touch display, complete with 1kW CHIRP, internal GPS antenna and wireless radar capability. And what’s more the all-glass touch screen design has better waterproofing, higher resolution images and sunlight visibility. Multi-touch features allow you to easily swipe and operate your unit in the most convenient way possible. This unit can also be connected to other devices such as radar and autopilot for a complete navigation and fishfinding experience.

Package Includes:

• Furuno GP-1971F DB9 9″ Deep Blue CHIRP GPS/Fishfinder Unit
• CMAP 4D NZ Chart Card

Unmatched detail with TruEcho CHIRP
The high level of detail available with TruEcho CHIRP technology
helps to distinguish fish schools, even when close to the sea bed.
Fish can be observed with a very high resolution and are displayed
in a distinct boomerang shape. The clear presentation marks
individual game fish and bait fish, even when tightly schooled
together.

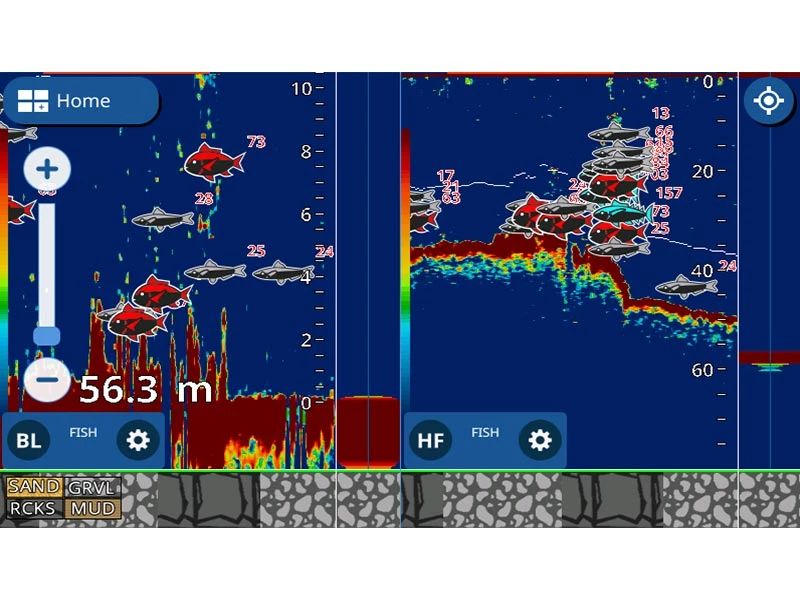

ACCU-FISH and Bottom Discrimination with RezBoost
With FURUNO’s RezBoost data processing technology, fish schools and
echoes are shown with high resolution while you can assess fish
size and bottom composition thanks to ACCU-FISH and Bottom
Discrimination functions. Additionally, ACCU-FISH icons and colors
can be freely customised according to the size and depth of the
targeted fish.

Convenient and intuitive Multi-Touch Interface
The Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder‘s smart interface inherited from the NavNet TZtouch2 features slide-out menus containing all the tools and data you need to be in total control. Customise your display modes and create the perfect combination to fit your individual needs. Plus, with Finger Gestures you can now zoom-in, zoom-out, double tap to take a screenshot or even jump to a full-screen mode when using Split-screen display mode.

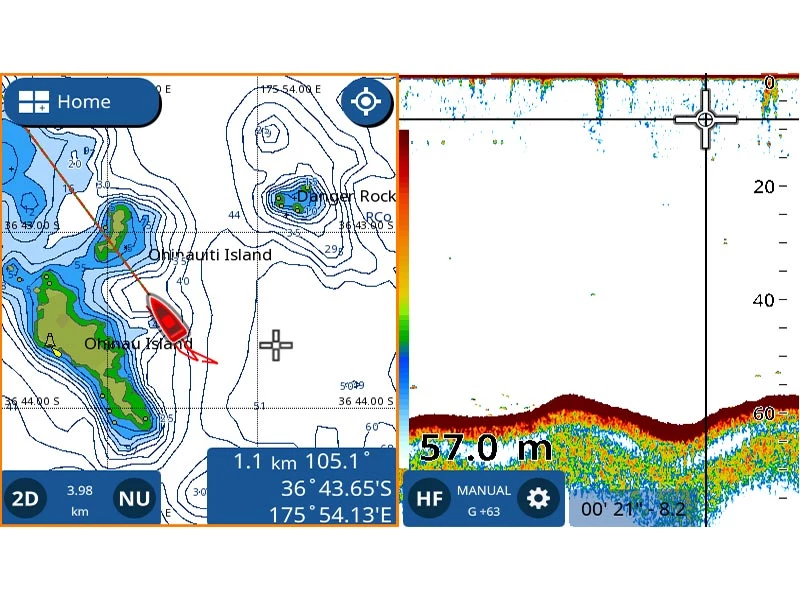

Chart Plotter (with internal GPS antenna)
By using the incredibly rich C-MAP 4D charts, the GP-1971F delivers highly precise data that features plenty of useful information, such as relief vectors, tidal streams and marine plans, considerably enhancing your navigational awareness.

DRS4W 1st Watch Wireless Radar
The GP-1971F is connectable to the 1st Watch Wireless Radar (Output
Power 4 kW) (sold separately) giving your Chart Plotter a major
upgrade in accuracy and safety.

Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder
Features:

• Multi-Touch Interface: convenient and intuitive slide-out
  menus, custom display mode and finger gestures
• Chart Plotter (with internal GPS antenna)
• Detailed Chart with C-MAP 4D compatibility
• Easy screenshot and MicroSD card: tap the display with two
  fingers to capture a screenshot that will be saved directly to your
  microSD card
• AR (Anti-Reflective) glass coating and strengthened glass
  filter
• Internal GPS antenna for simple and easy installation
• Daylight viewable with excellent readability, brightness of
  1000 cd/m2
• AutoPilot control capable
• C-MAP C-Weather
• Plotter with AIS Symbols
• Various display modes
• Built-in CHIRP Fishfinder
• TruEcho CHIRP
• ACCU-FISH and Bottom Discrimination with RezBoost
• DRS4W 1st Watch Wireless Radar capable

Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder
Specifications:

Display Unit

• Screen Type: GP-1971F: 9″ Wide Colour TFT LCD
• Screen Resolution: WVGA 800 x 480 pixels
• GPS Antenna: Internal Antenna
• Display Modes:
  Chart Plotter
  Fish Finder
  Radar (connection to the 1st Watch Wireless Radar DRS4W
  required)
  AIS (connection to AIS sensor required)
  Instruments (Nav Data, Engine, Wind, Fuel tank)
  Autopilot (connection to the FURUNO NAVpilot-300 or 700 series
  required)
• Language: English (US & UK), French, Spanish, German, Italian,
  Portuguese, Danish, Swedish, Norwegian, Finnish, Greek,
  Japanese

GPS / SBAS (WAAS/EGNOS/MSAS)

• Receiving Type:
  GPS 72 channels
  WAAS 1 channel
• Receiving Frequency: L1 (1575.42 MHz)
• Accuracy: GPS: 10 m max, WAAS: 5 m max, MSAS: 7.5 m
  MAX

Plotter

• Chart: C-MAP 4D
• Memory Capacity
  30,000 points for ship’s track and waypoints
  1,000 planned routes (Max. 50 points per route)
  5,000 quickpoints

Fishfinder

• Frequency:
  CHIRP: 40 to 225 kHz
  CW: 50/200 kHz
• Transducer: 300 W or 600 W or 1kW (Transducer
  dependent)
• Range: 5-1, 200m, shift :0-500m
• Modes: TruEcho CHIRP (CHIRP dedicated transducer required),
  RezBoost and ACCU-FISH, Bottom Discrimination, Dual Frequency, Dual
  Range (Dual frequency CW compatible transducer required) Auto gain
  (Fishing/Cruising), Manual gain, A-Scope, Marker Zoom, Bottom Zoom,
  Bottom Lock

Others

• Waterproofing: IP56
• Power Supply: GP-1971F: 12-24 VDC, 1.1-0.6 A
• Weight:
  Flush mount: 1.3kg
  Bracket mount: 1.5kg
• Dimensions:
  Flush mount: 241.5 x 155.5 x 74 mm
  Bracket Mount: 267 x 182 x 74

Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder Product
Brochure

Furuno GP-1971F DB9 Deep Blue CHIRP GPS/Fishfinder Interconnection
Diagram

Note: Transducer sold separately.
