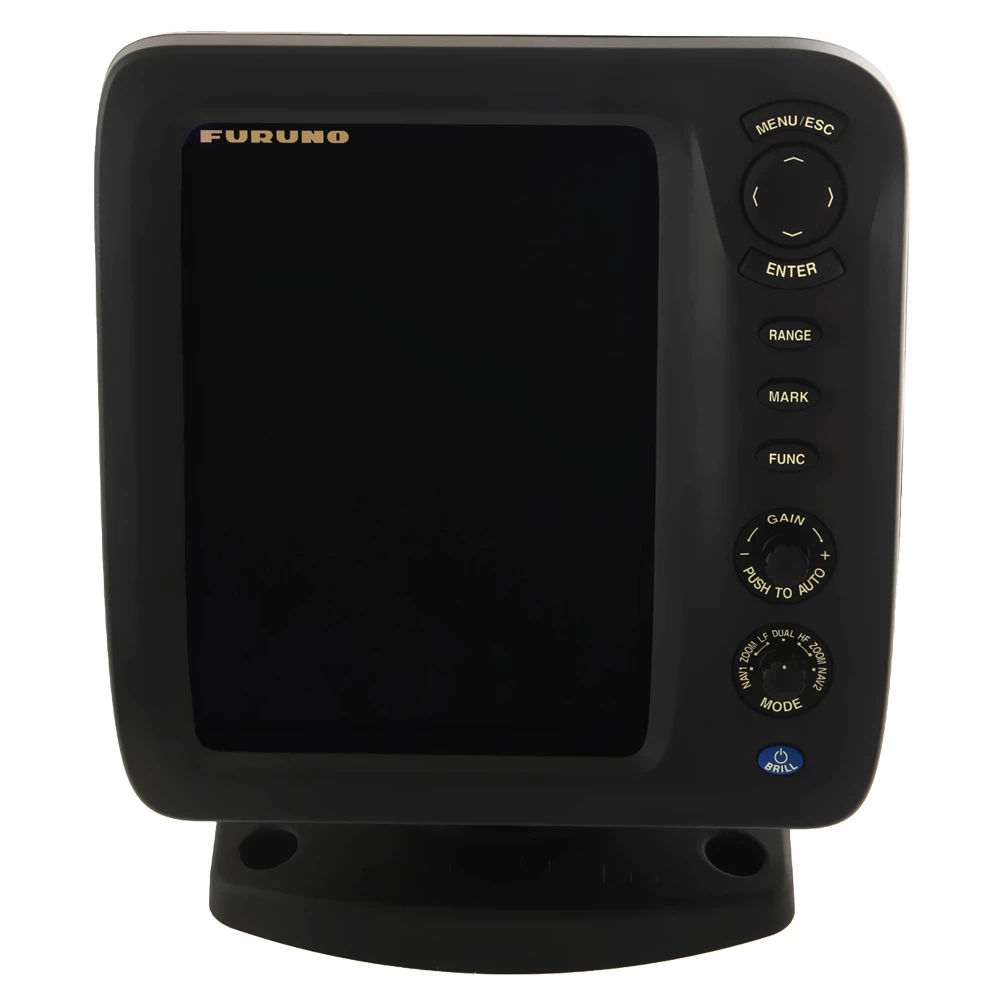

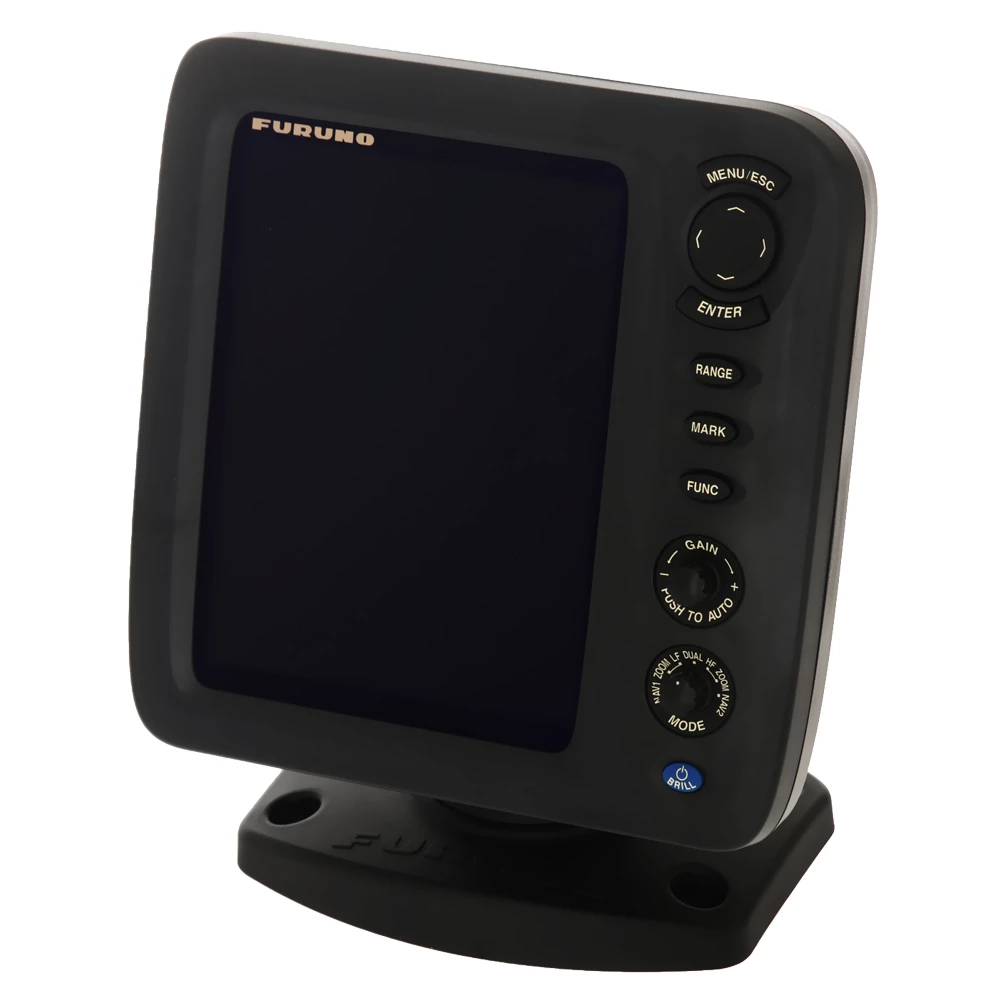

Furuno FCV-588 8.4” Colour LCD Fishfinder With P66 Transducer D/T/S 50/200kHz

Fantastic clarity and target separation

Ideal for medium to larged sized trailer boats, the Furuno
FCV-588 8.4″ Colour LCD Fishfinder features an enhanced
sunlight viewable, polarised-friendly bonded 8.4″ LCD display and
uses the revolutionary RezBoost technology that increases
resolution and improves target separation. This package comes
complete with an Airmar P66 transom mount transducer for the best
performance. This package comes complete with a Depth, Speed and
Temperature Airmar P66 Transducer.

RezBoost
RezBoost is a revolutionary new signal processing technology that
improves resolution and target separation when using conventional
narrowband transducers. Spot individual game fish surrounding bait
balls, as well as fish close to the seabed. Not only can you expect
higher resolution and crisper visuals, but also improvements in the
ACCU-FISH function.

With RezBoost technology, the resolution is increased, leading to
sharper and more defined echoes. Thanks to this increase in
resolution, the accuracy of the ACCU-FISH function is also
improved. ACCU-FISH is very useful when you need to determine fish
size, but also has the added benefit of making fish echoes more
visible when viewed from a distance. With ACCU-FISH you can spot
individual fish echoes even from the deck on your vessel.

ACCU-FISH
Recognise individual or multiple fish instantaneously with
ACCU-FISH! In order to assess individual fish size, echo returns
are evaluated based on strength and turned into fish size display
on screen. ACCU-FISH can detect fish size from 10 to 199 cm, in
depths of 2 to 100 m. The fish mark can be utilised to display
individual fish echoes when they are detected. It helps you to
identify fish echoes for a more engaging fishing experience. Fish
marks are selectable from either a circle or square, as well as,
two fish symbols. The fish symbols, displayed in two different
sizes (Large: over 50 cm, Small: 10 to 49 cm), are a great help for
anglers when identifying individual fish. The circle and square
symbols identify individual fish without hiding the underlying
echo.

Bottom Discrimination Function
FCV628’s Bottom Discrimination function enables the fishfinder to
indicate whether the bottom is composed mainly of rocks, gravel,
sand or mud. It provides you with valuable information that helps
you locate rich fishing grounds and boost your catch of the day.
The White Line function distinguishes fish from the seabed. This
function is useful for discriminating bottom fish as well as
judging fish school density.

Alarm Function
With the FCV-588’s Fish Alarm function, when fish echoes appear in
an area preset by the user, the FCV-588 will sound a loud alarm and
display an alarm icon on-screen. The integrated alarm can also be
set to be triggered by specific conditions for water depth, target
depth, water temperature, bottom type and more. You never have to
miss a target again!

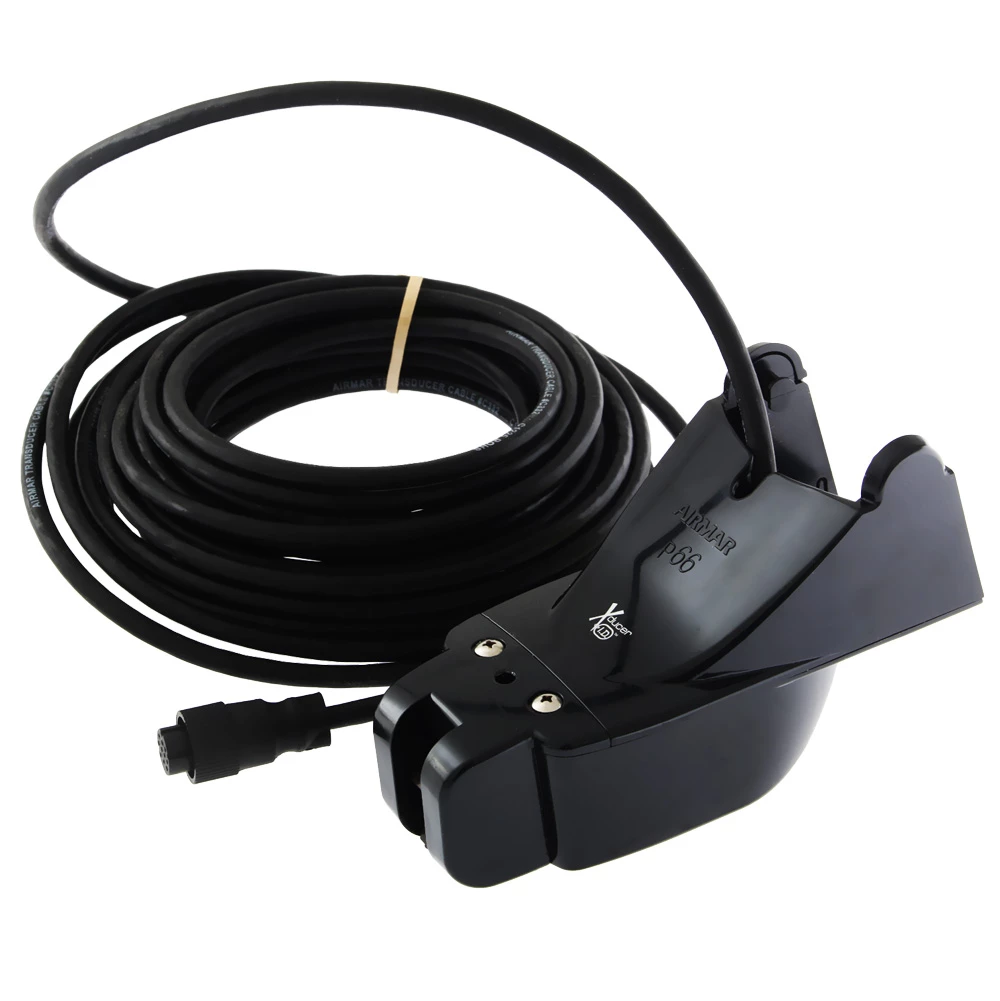

The Transducer
The Airmar P66 is the best performing and most popular,
transom-mount, TRIDUCER Multisensor in the market for many reasons.
Foremost, the 50 kHz and 200 kHz, oversized, ceramic element
produces focused beams, highlighting detail in the water column and
in the bottom structure.

Furuno FCV-588 8.4″ Colour LCD Fishfinder
Features:

• Improved clarity and resolution that was previously impossible
  with conventional narrowband transducers has been made possible
  thanks to the new RezBoost technology
• ACCU-FISH – A unique fish size analyser based on the latest
  digital technology
• Bottom Discrimination – Analyses bottom structure. Provides an
  at-a-glance recognition of bottom composition with four types of
  graphical displays – Rocks/Sand/Gravel/Mud – when connected to a
  supported thru-hull or transom mount transducer
• White Line feature – Discriminate fish lying near the bottom.
  The top edge of the bottom echo is displayed in white to clearly
  show bottom structures. This feature helps to discriminate between
  weeds and bottom fish
• Configurable Alarm function (depth, fish echoes, etc.)
• Furuno’s TLL (Target Lat/Lon) output allows you to interface
  the FCV-588 with your Furuno chart plotter so that you can mark
  fishing grounds with various information (L/L, Depth, Water Temp,
  Fish size and Bottom type) (Chartplotter required)
• Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per
  minute (at 5 m depth range)

Furuno FCV-588 8.4″ Colour LCD Fishfinder
Specifications:

• Display unit: 8.4″ TFT colour LCD
• Pixel number: VGA 480 x 640
• Frequency: 50 and 200 kHz
• Transducer: 600 W/1 kW (not included)
• Range Scale: 2-1200 m
• Pulselength & PRR: 0.04 ms-3 ms, Max 3,000 pulse/min
• Display Mode: Single frequency (50 or 200 kHz), Dual-frequency,
  Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock,
  Bottom
• Discrimination, ACCU-FISH, RezBoost
• Waterproofing: IP56

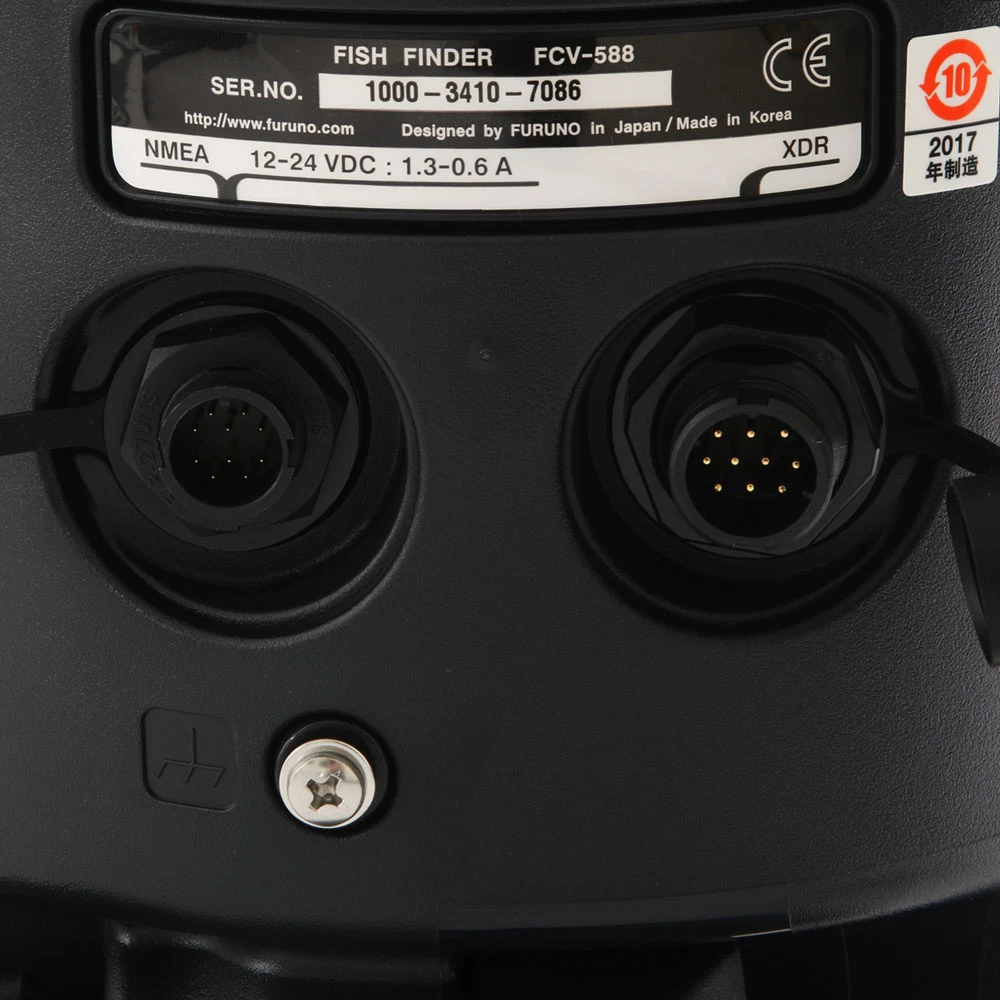

• Power Supply: 12-24 VDC: 1.2-0.6 A
• Size: 270 (H) x 233 (W) x 158 (D)
• Weight:
  Bracket Mount: 2.3 kg
  Flush Mount: 1.6 kg

Airmar P66 Transom Mount Transducer Features:

• Depth, speed and temperature in one housing
• Plastic kick-up bracket
• Accommodates transom angles between 2° and 20°
• Recessed waterflow channel protects paddlewheel Transducer can
  be removed from bracket without the use of tools for easy service
  and storage
• Boat Size: Up to 12 m (40’)
