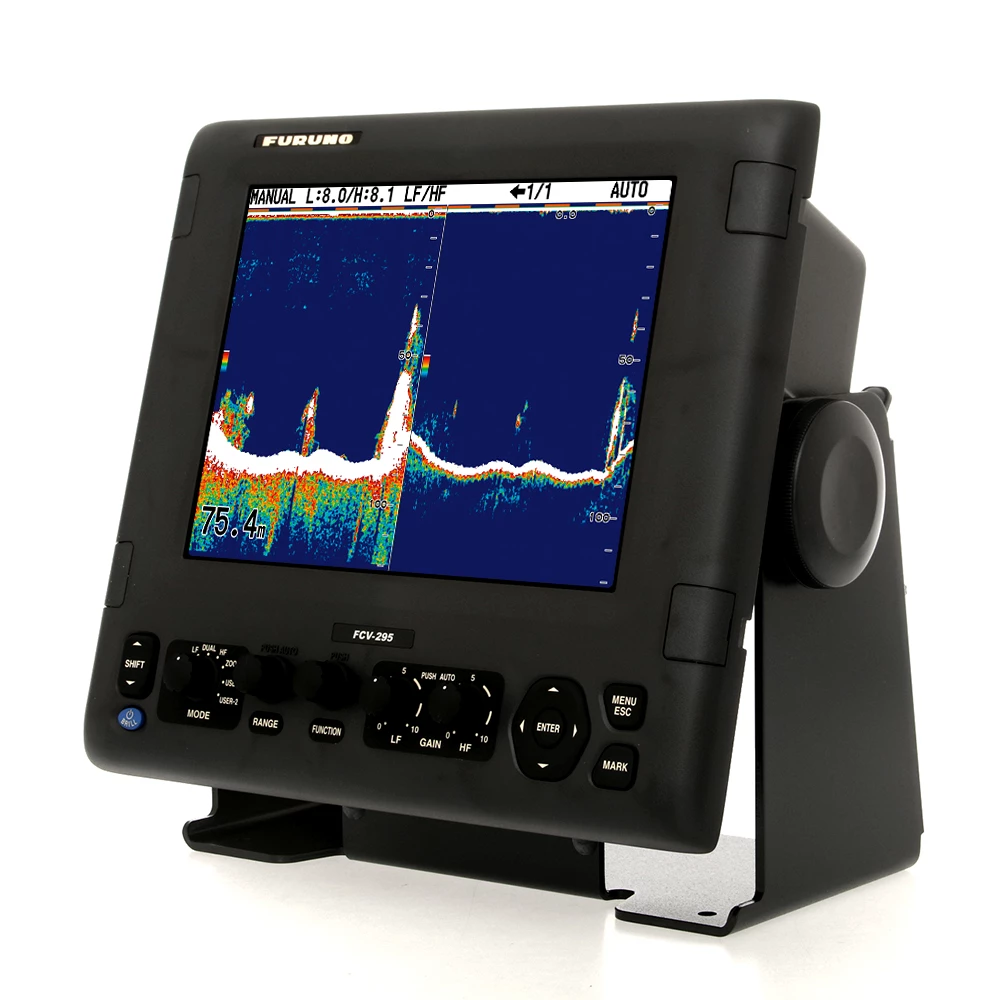

Furuno FCV-295 10.4” LCD Commercial Grade Fishfinder

Crystal clear image!

The hardcore fishfinder for the serious fisherman, the
Furuno FCV-295 10.4″ LCD Commercial Grade
Fishfinder is a commercial-grade colour digital sounder
designed for professional use. The bonded 10.4″ fog-free LCD
display provides superior viewing in direct sunlight. Colour
assignment lets you display echoes in 8, 16 or 64 colours. Free
Synthesizer and Digital Filter deliver high quality viewing in any
weather conditions. A wide variety of display modes and functions
are available, which provides simple and intuitive information.

Furuno Digital Filter (FDF)
With Furuno Digital Filter, the FCV 205 clearly shows target fish
close to the seabed. The filter optimises the gain to obtain highly
defined images. It also eliminates noise to deliver sharp and
detailed echo presentation, achieving detection of fishing reef and
even individual fish with absolute clarity.

Furuno Free Synthesizer
The Furuno Free Synthesizer (FFS) Transceiver gives you a wide
selection of operating frequencies. Choose any two frequencies
between 28 and 200 kHz to fit your fishing operation. Output power
is selectable from 1, 2 or 3 kW.

Auto Transmission Function
With FCV 295’s auto transmission function, the rate is
automatically raised in shallow waters and lowered in deep waters.
This function provides you with faster transmission and detailed
detection of your seabed targets.

Operating Frequency Adjustment
When Furuno transducers are connected and set to the FCV-295, the
operating frequency range will be registered and shown in the menu.
The user can shift the operating frequency freely between the
ranges at any time from the menu. This feature is particularly
useful for vessels targeting many different species or when the
fish finders of other ships in the area cause interference.

Faster Transmission Rate For Detailed Detection
The rate of transmission is increased by more than 30% compared to
conventional fishfinders. As the result, more detailed information
about underwater conditions can be gained through the same sounding
interval. With the FCV-295’s AUTO transmission function, the rate
is automatically raised in shallow waters and lowered in deep
waters, which provides for detailed detection of seabed
targets.

Furuno FCV-295 10.4″ LCD Commercial Grade Fishfinder
Features:

• 10.4″ ‘Fogging-Free’ color LCD provides clear view in any
  weather conditions
• 64-colour (including background) presentation provides detailed
  information on fish density and bottom composition
• Post-processing gain control applies to all existing returns on
  the display
• White Edge function trace the bottom contour with a thin white
  line
• Digital Filter delivers crystal clear target
  presentation
• Free Synthesizer transceiver allows adjustable operating
  frequency
• Adjustable operating frequency
• Auto transmission function
• Automatic operation selects correct range and gain to show fish
  echoes and bottom in both shallow and deep waters
• In addition to the conventional gain setting, Gain may be
  applied to the whole display
• Alarms: Bottom, Fish (bottom lock and normal), Speed*, Water
  Temperature* and Arrival* (requires appropriate sensors)
• Edge function of white marker traces the bottom contour with a
  thin white line.
• Zero line may be removed to look for fish near the
  surface
• User-programmable nav data displays provide analog and digital
  nav data.
• Waypoints (up to 20) for marking important locations
• Destination waypoint feature provides range, bearing and
  time-to-go to destination waypoint

Furuno FCV-295 10.4″ LCD Commercial Grade Fishfinder
Specifications:

Display

• Display unit: 10.4″ TFT colour LCD
• Display mmodeL Single (HF/LF), Dual, Single+Zoom, Zoom mode
  (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data,
  A-scope
• Pixel number: 640 x 480

Fish Finder

• Frequency: The synthesized transreceiver works with dual
  frequencies in 28 to 200 kHz
• Transducer: 1, 2 or 3 kW
• Range Scale: 5-3000 m
• Pulselength & PRR: 20-3000 pulse/min
• Display Mode: Single (HF/LF), Dual, Single+Zoom, two Custom
  modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode,
  Nav data, A-scope

Others

• Waterproofing: IP55 (When flush mounted)
• Power Supply:
  12-24 VDC: 2.6-1.3 A
  100/110/220/230 VAC, optional rectifier required
• Size: 270 (H) x 233 (W) x 158 (D)
• Weight: 7.0 kg

Furuno FCV-295 10.4″ LCD Commercial Grade Fishfinder Product
Brochure

Note: Transducer sold separately.
