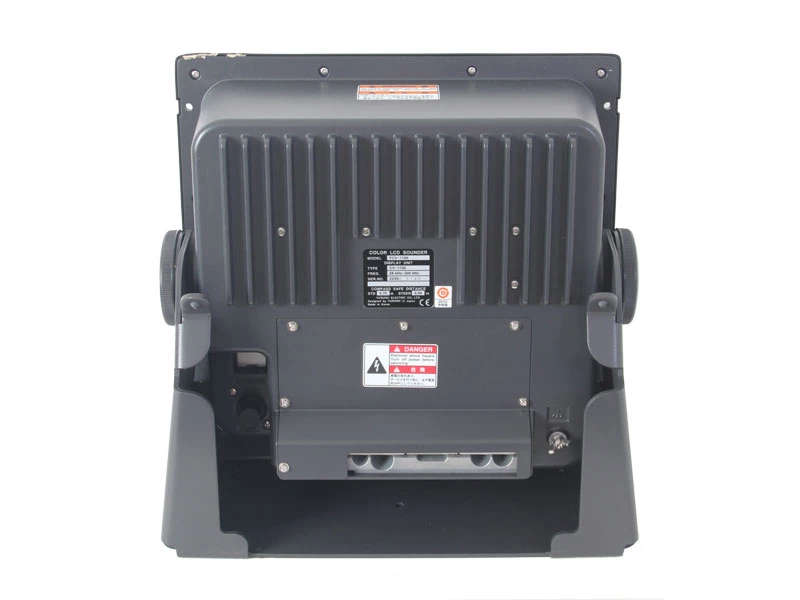

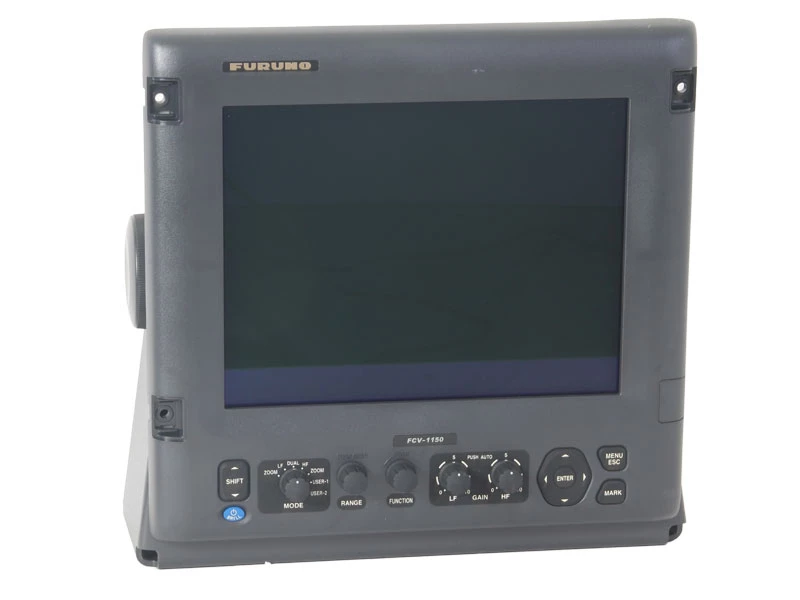

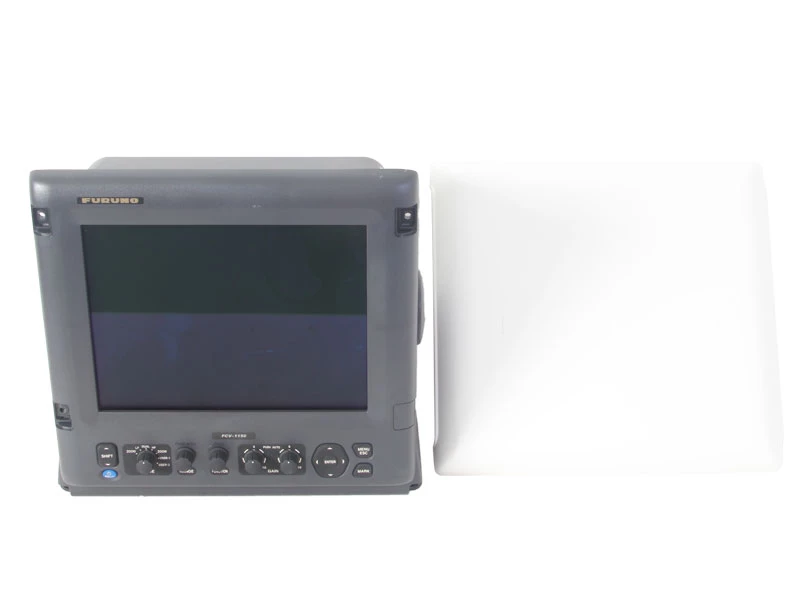

Furuno FCV-1150 12.1” Fishfinder With 200B-8B And 38BL-9HR Transducers

High powered fishfinder great for finding deep water
species

The new Furuno FCV-1150 12.1″ Fishfinder has the
potential to go very deep, opening you up to new structure and
territory that hasn’t been discovered before! Choose from a range
of matching high powered transducers ideal for your vessel and
fishing methods.

The FCV-1150 features a high-brightness fog-free LCD with AR-coated
glass and anti-polarised filter, so you can view the screen clearly
even in direct sunlight. And what’s more its quick gain control
function allows you to quickly find the most appropriate gain
setting for the environment. And with white-edge function, bottom
and seabed discrimination is enhanced even when experiencing the
strongest echoes.

Furuno Digital Filter (FDF)
With Furuno Digital Filter, the FCV-1150 clearly shows target fish
close to the seabed. The filter optimises the gain to obtain highly
defined images. It also eliminates noise to deliver sharp and
detailed echo presentation, achieving detection of fishing reef and
even individual fish with absolute clarity.

The top of the seabed is displayed in white to easily discern
seabed structure from bottom fish returns. While conventional
bottom discrimination function called White Line applied to the
strongest echoes, the White Edge function enhances the
discrimination of bottom fish and seabed by painting a very thin
line above the bottom contour regardless of gain setting or display
colour.

Post-processing gain control gives you quick results
With Furuno’s post-processing gain control, changes you make to the
Gain settings are applied not only to the new echoes, but also to
all past echoes on the screen. You can compare past and current
echoes using different Gain settings, allowing you to quickly and
easily determine the right Gain setting for your conditions. No
more waiting for the screen to repaint to see if your settings are
the way you want them to look!

Fine tune your Fishfinder with the operating frequency
adjustment
When Furuno transducers are connected and set to the proper
Fishfinder model, the operating frequency range will be registered
and shown in the menu. You can shift the operating frequency freely
between the ranges at any time from the menu. For example, with the
Furuno CA82B-35R transducer, you can select any operating frequency
from 66 to 109 kHz. This feature is particularly useful for vessels
targeting many different species, or when the fishfinders of other
ships in the area cause interference.

Increased transmission rate for detailed detection
The rate of transmission is increased by more than 30% compared to
conventional Fish Finders. As the result, more detailed information
about underwater conditions can be gained through the same sounding
interval. With the AUTO transmission function, the rate is
automatically raised in shallow waters and lowered in deep waters,
which provides for detailed detection of seabed targets.

Furuno Free Synthesiser
The Furuno Free Synthesiser (FFS) Transceiver gives you a wide
selection of operating frequencies. Choose any two frequencies
between 28 and 200 kHz to fit your fishing operation. Also, you can
change the frequencies at any time. Output power is selectable from
1, 2 or 3 kW.

The Transducers
The Furuno CA200B-8B Rubber Coated Transducer is a
single frequency, high power 200kHz, 2kW commercial transducer
designed to be mounted in tanks or sea chests.

The Furuno CA38BL-9HR FRP Transducer is a
commercial transducer that has a bandwidth of 38kHz and is usable
with FCV295, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3 sonars. When
used with the FCV1100/1200, sensitivity remains high even if the
frequency is shifted +/- 10% to suppress interference. It’s mounted
in the tank or sea chest that’s custom-built into the ship’s
hull.

Furuno FCV-1150 12.1″ Fishfinder Features:

• High powered fishfinder great for finding deep water species
  such as Hapuka, Bluenose and Bass
• Fog-free LCD with AR-coated glass
• Anti-polarised filter
• Superior viewing even in direct sunlight
• Furuno Free Synthesizer (FFS) transducer
• Furuno Digital Filter
• Quick Gain Control
• White edge bottom discrimination
• Available Heaving Compensation
• Stable echo presentation
• Waterproof to IP55 when flush mounted

Furuno FCV-1150 12.1″ Fishfinder
Specifications:

• LCD Display: 12.1 inch colour LCD
• Screen Resolution: SVGA 800 x 600
• Echo Presentation Display: 8/16/64 colours (colour assignment
  dependant on the signal strength)
• Display Mode: Single (HF/LF), Dual, Single+Zoom, 2 Custom
  modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode,
  Nav data, A-scope
• Brightness Display: 1100 cd/m2
• Range: 5 to 3000 metres
• Frequency (Dual): 28 to 200 kHz
• Temperature : -15°C to +55°C (IEC60945 tested)
• Power Supply: 12-24V DC
• Power Consumption: less than 50W
• Output Power: 1/2/3 kW
• Size: 345 (H) x 356 (W) x 199 (Depth) mm
• NMEA 0183
• Waterproof Rated: IP55
• Weight:
  Bracket Mount: 8.2 kg
  Flush Mount: 6.8 kg

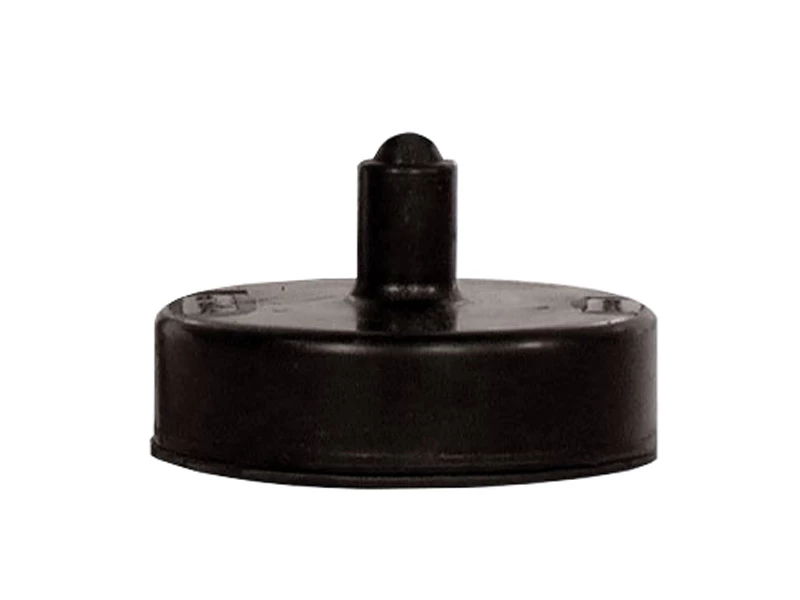

Furuno CA200B-8B Rubber Coated Transducer
Features:

• 2 kW
• Frequency: 200 kHz
• 5.5 degree Beam Angle
• Weight: 5.7 lbs
• Rubber Coated
• Chest or tank mounted
• 15-Metre Cable (no connector)

Furuno CA38BL-9HR FRP Transducer Features:

• Frequency: 38kHz
• Power Rating: 2kW
• Beam angle: 20.5 x 2.05 degree
• Housing type: FRP
• No connector
• Mount type: Tank
• Cable length: 15m
