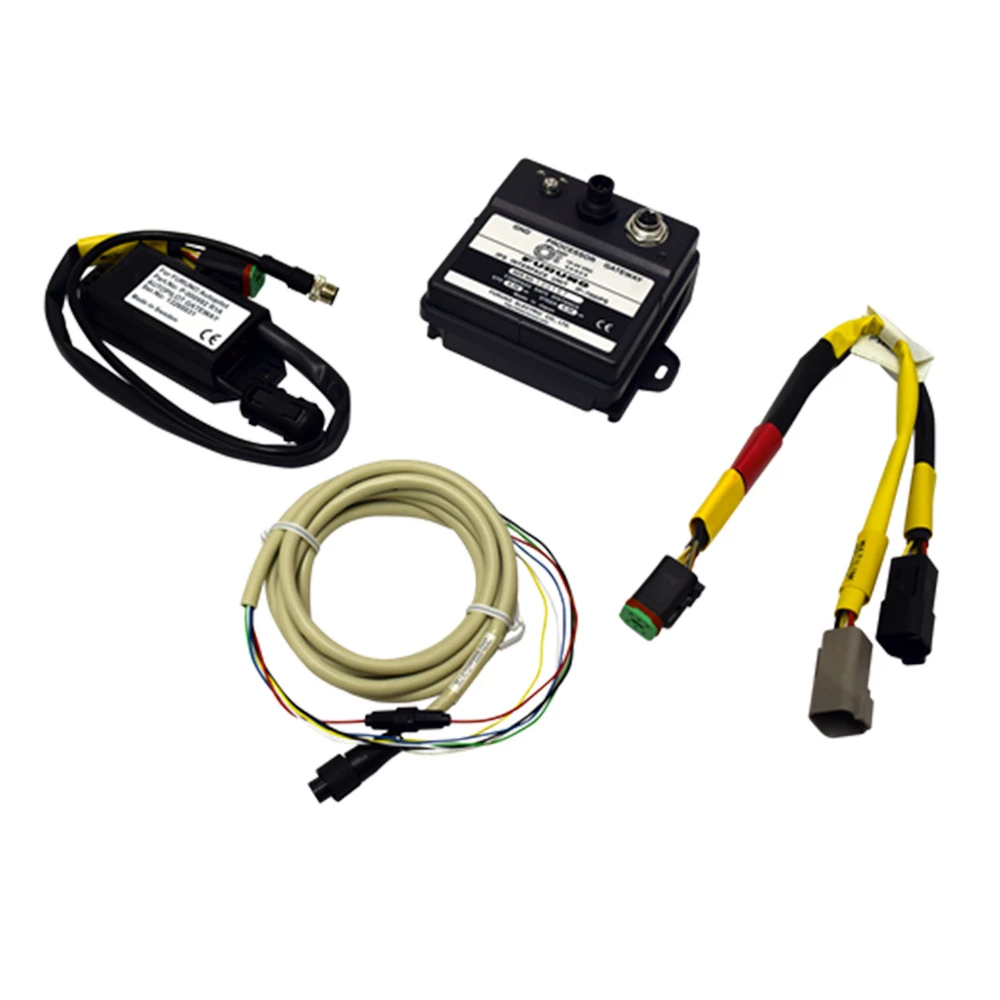

Furuno FAP-6300 Volvo Penta Inboard Performance System Kit

Control the Volovo Penta IPS system

The Furuno FAP-6300 Volvo Penta Inboard Performance
System Kit is a modern inboard steering and throttle
control system with multiple pod drive units, which can rotate 360
degrees. IPS provides easy manoeuvrability, better fuel efficiency,
less CO2 emissions, higher efficiency, speed etc. The IPS Joystick
Controller allows simple lateral or rotational boat movement.

The FAP6300 is an optional interface kit that can be connected
to the NavPilot 700 series, allowing it to control the Volovo Penta
IPS system. The IPS consists of an NMEA2000 based network called
EVC (Electric Vessel Control), and the system is controlled
electrically. The NAVpilot 700 is interfaced with the EVC via two
units: Autopilot Gateway and IPS Interface Unit. The Autopilot
Gateway and the IPS Interface Unit make up the FAP6300 kit. The
FAP6300 is compatible with Volvo Penta (VP) IPS drive versions C,
D, or E types.

Furuno FAP-6300 Volvo Penta Inboard Performance System Kit
Features:

• Part number: FAP-6300
• Modern inboard steering and throttle control system with
  multiple pod drive units
• Allows simple lateral or rotational boat movement
• Can be connected to the NavPilot 700 series
• Easy manoeuvrability
• Better fuel efficiency
• Less CO2 emissions
• Higher efficiency, speed
