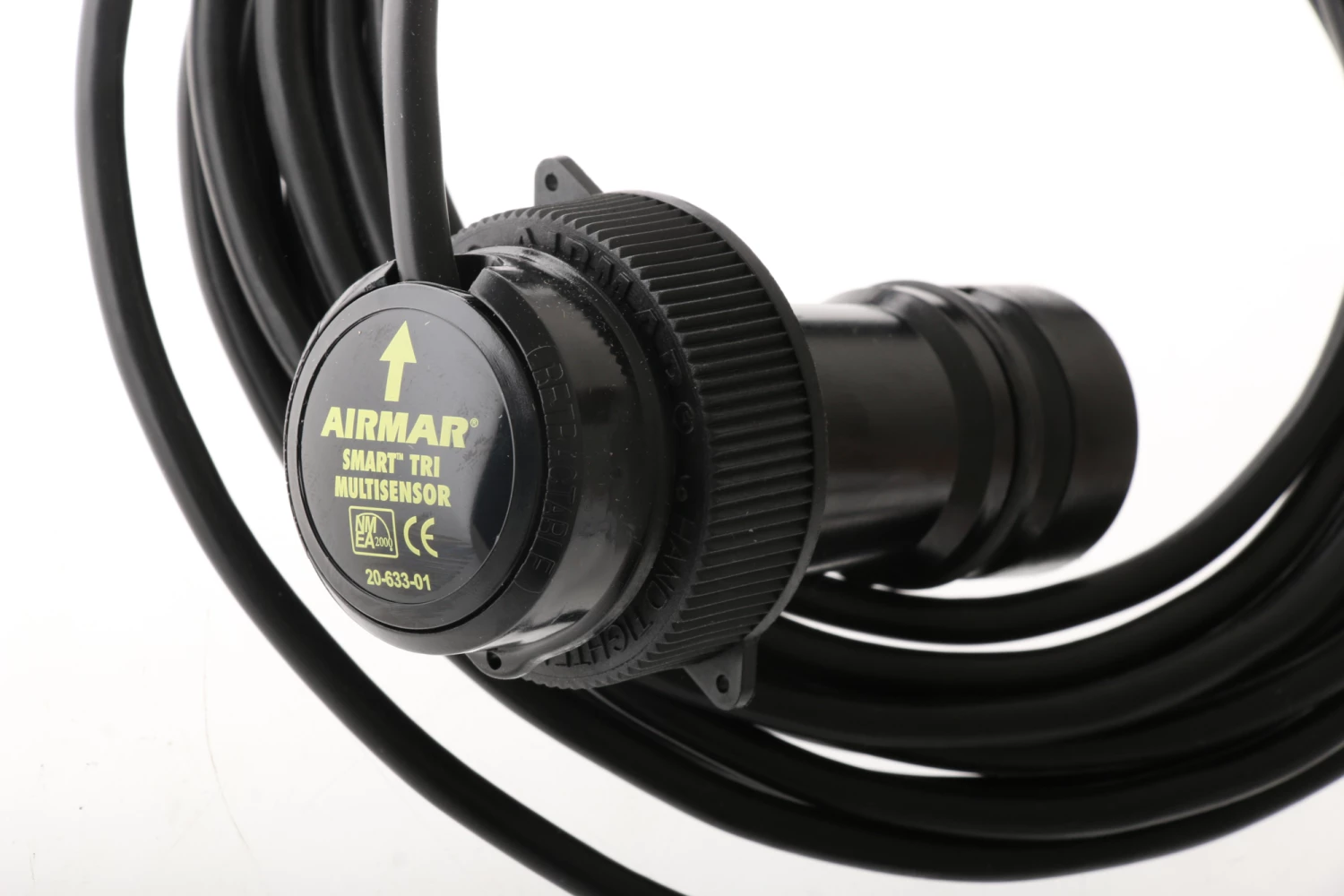

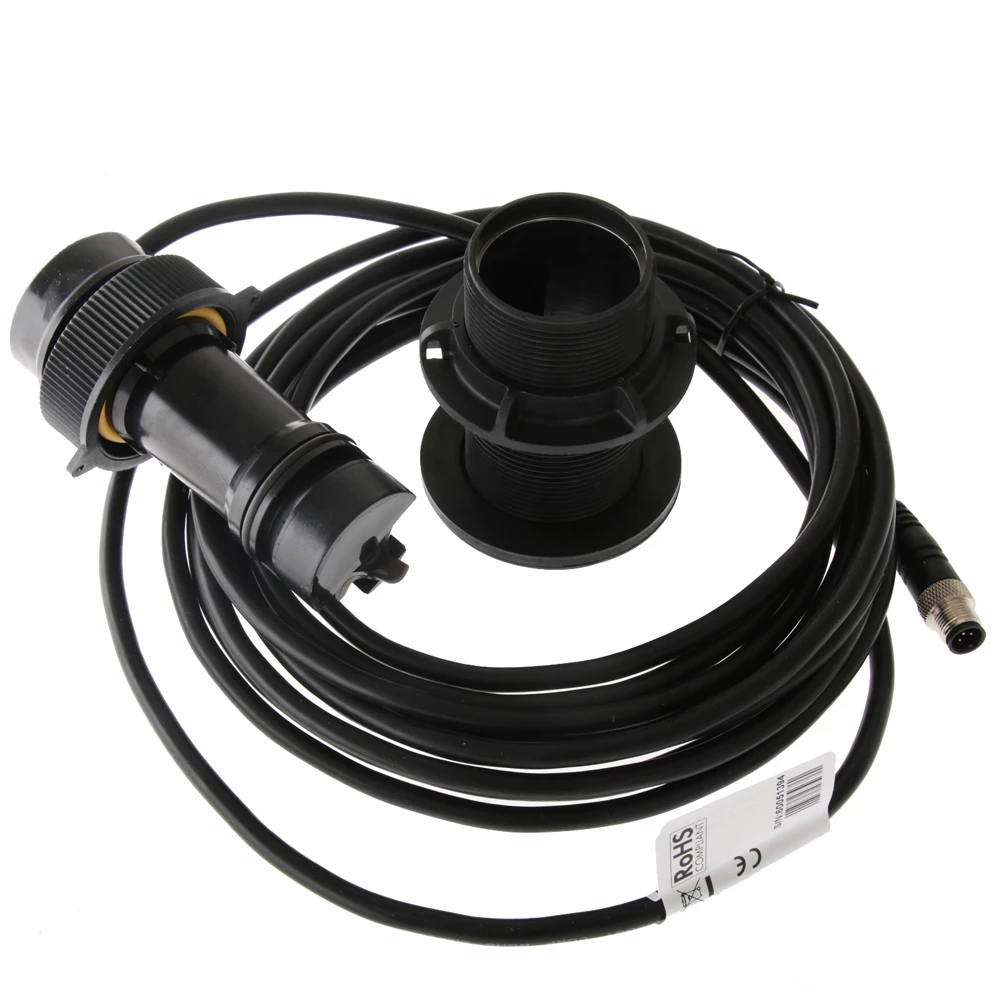

Furuno DST800 Thru-Hull Retractable Smart Sensor

All-in-one smart sensor

The Furuno DST800 Thru-Hull Retractable Smart
Sensor offers depth, speed and temperature functions in
one compact thru-hull fitting. Only one hole in the boat’s hull
makes this multisensor attractive to both boat builders and boat
owners alike. What’s more, this sensor’s wide fore-aft, fan shaped
beam is able to find the bottom even when installed on high
deadrise hulls or on sailboats.

Furuno DST800 Thru-Hull Retractable Smart Sensor
Features:

• Retractable triducer multisensor offers depth, speed, and
  temperature
• Patented, speed-signal-processing enhancements provide stable
  and high accuracy speed readings from 1-60mph
• Transducer’s wide fore-aft beam is able to find the bottom even
  when installed on steep hulls or heeling sailboats
• Smart sensor with embedded microelectronics, the transducer
  element and signal processor are only millimeters apart
• 235kHz frequency prevents mutual interference with other echo
  sounders on the vessel
• Near-flush housing minimizes drag with only 3/16in extending
  outside hull

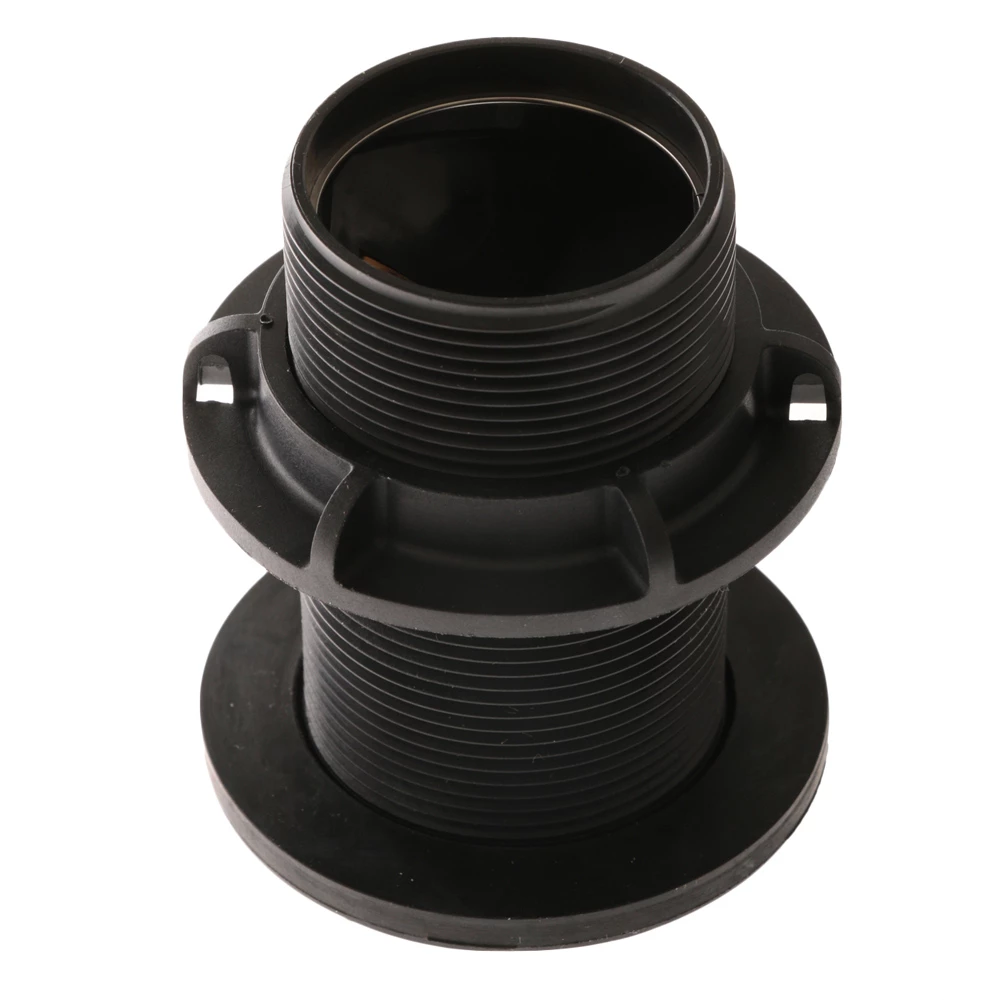

• Retractable housing with self-closing valve minimizes water
  flow into the vessel when transducer is removed
• Depth, speed, and temperature signals are processed inside the
  sensor and can be displayed on any radar, chart plotter, or device
  that accepts NMEA 0183 or NMEA 2000 data

Furuno DST800 Thru-Hull Retractable Smart Sensor
Specifications:

• Mount: Thru-hull
• Housing material: Plastic

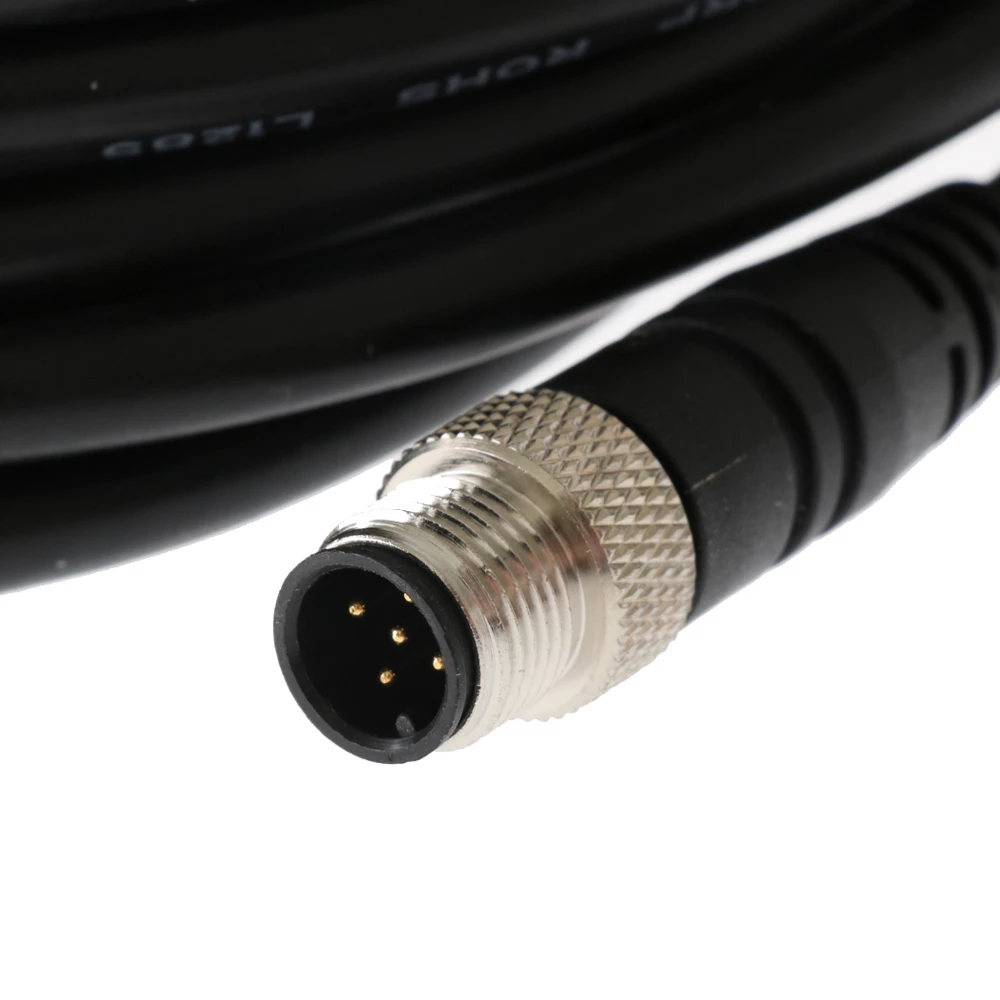

• Connector: 5-pin NMEA 2000
• Cable: 20ft
• Frequency: 235kHz
• Cone: 10° fore / aft x 44° port / starboard
• Power: 100W RMS
• Hull deadrise: 0-22°
• Depth sensor range: 1.6-230ft
• Temperature sensor range: 14-104°F
• Data update rate: (1) per second
• Supply voltage: 9-16vDC
• Supply current: 40mA
• Acoustic window material: Urethane
• Compatible hull materials: Fiberglass or metal
• Hole Diameter for Installation: 2in
• Dimensions: 4.87in x 2.94in (H x D)
