Furuno DRS25AX X-Class Radar Sensor For TZT/TZT2 96NM 25kW

X-Treme radar performance

Pushing the boundaries of what is possible with conventional Radar technology, the Furuno X-Class Radar Sensor marks yet another leap forward for FURUNO. Improved in almost all aspects, this state-of-the-art radar features improved short-range detection, as well as an impressive long-range detection.

Utilizing technology previously only available on rugged commercial-grade radars, the X-Class series offers stunning performance and reliability. For fishos, the new “Bird Mode” on NavNet TZtouch 3, NavNet TZtouch 2, NavNet TZtouch gives you incredible bird detection performance.

Lower noise and lighter gearbox

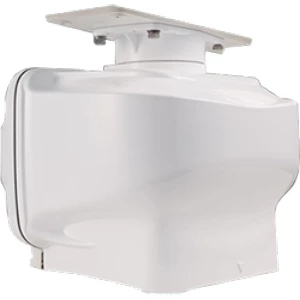

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast target tracking

Fast Target Tracking, a function adopted from Furuno’s commercial Radar FAR3000, is available on the X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Bird mode

Bird echoes can be distinctly and automatically separated from nearby vessels. While a vessel in motion shows a straight and clear echo trail, bird echoes are identifiable by their random motion. With Bird Mode activated, bird echoes are distinct and clear, and can easily be distinguished from other targets. With Echo Trails on, it is even possible to discern the movements of individual birds!

Furuno X-Class Radar Sensor Features:

• Enhanced target detection, both short and long range
• Minimum detection range of 20 m approx.
• Fast Target Tracking display up to 30 targets simultaneously
• Instant target vectors show heading and speed info with Fast Target Tracking
• Bird Mode, track birds to find the best fishing grounds
• Moving targets (vessels and birds) display targets trails for easy identification
• New gearbox pedestal unit is 20% lighter than previous DRS Series unit, updated low noise motor
• No PSU unit required, simple installation

Furuno X-Class Radar Sensor Specifications:

• Model: DRS25AX
• Antenna:
  XN12A : 1255 mm (4ft)

  XN13A : 1795 mm (6ft)
• Peak output power: 25kW
• Antenna rotation speed: 24/36/48 rpm range coupled or 24 rpm fixed
• Beam Width:
  XN10A : Horizontal 2.3° Vertical 22°

  XN12A : Horizontal 1.9° Vertical 22°

  XN13A : Horizontal 1.4° Vertical 22°
• Range scales: 0.0625 to 96NM
• Temperature: -25°C to + 55°C
• Waterproofing: IP56
• Weight: 22 kg (XN12A), 24 kg (XN13A)
• Power Supply: 24 VDC, 5.6 A
