Furuno DFF3D 3D Multi-Beam Sonar Module With TM54 Transom Mount Transducer

Revolutionary 3D multi-beam sonar for deep and wide water
columns

You may think you’ve seen 3D Multi-Beam Sonar in action, but many
of those images begin disappearing as you approach 200 feet. The
Furuno DFF3D 3D Multi-Beam Sonar Module takes 3D
Fish Finding to new depths. We’re talking depths of over 980 feet,
with Side Scanning over 650 feet. See fish and bottom structure as
you’ve never seen them before, at depths previously unfathomable.
Now you can visibly see fish schools and the underwater landscape
at great depths in amazing detail. The DFF3D turns your NavNet
TZtouch or TZTouch2 MFD into a multi-beam sonar that can see
120-degrees port to starboard, allowing you to see the depth and
direction fish schools are moving, while displaying the seabed
condition in real time.

Instantly understand fish distribution at a glance
Cross section displays the real-time sea column echo in 120 degrees
port and starboard. This mode aids in instantly understanding the
distribution of bait fish and the water column condition, with a
detection range of over 650 feet, depending on bottom, water and
installation conditions.

Intuitive 3D Sounder History
The 3D sounder history provides an intuitive and easy to understand
3D image of the seafloor, along with fish school icons. This mode
is useful in a variety of situations, such as selecting a fishing
hot spot and assessing the seabed condition.

Better understand the depth of fish targets
A single (directly under boat) or triple direction (middle, left
and right) fish finder image are displayed simultaneously. The
Triple beam display helps to understand the depth of fish targets
and the seabed condition in each direction, as well as the
direction the target fish are moving. Each beam angle and beam
width are selectable.

See the seafloor structure like never before
Side scan clearly displays the shape of structure as a high
definition image in port and starboard direction. It is suitable
for searching the seabed and understanding the sea floor structure.
The sidebar detection range is over 650 feet in a 120-degree swath
port to starboard, a distance you’ve never seen before!

The Transducer
The Furuno 165T-TM54 Multi-Beam Transom Mount
Transducer is a multi-beam transducer for the DFF3D that
affords a 120 degree port-starboard view of the underwater world. A
built-in motion sensor stabilises the display to give clear and
stable images.

Furuno DFF3D 3D Multi-Beam Sonar Module
Features:

• Turn your NavNet TZTouch or TZTouch2 MFD into a multi-beam
  sonar that can see 120-degrees port yo starboard
• Sidebar detection range is up to 200m (over 650ft) in a
  120-degree swath port and starboard direction
• Deep water main beam penetration directly under the boat is
  approx 300m (over 980ft)
• Customise the display according to your needs
• Muti-beam technology
  Cross Section displays the real-time sea column echo in 120 degrees
  port and starboard
  3D Sounder History provides an intuitive and easy to understand 3D
  image of the seafloor, along with fish school and icons
  Triple (middle, left and right)/Single Beam Sounder (directly under
  boat)
  Side Scan clearly displays the shape of structure as a high
  definition image in port and starboard direction

Furuno DFF3D 3D Multi-Beam Sonar Module
Specifications:

General

• TX Frequency: 165kHz
• Output Power: 800W
• Minimum Range: 3m
• Basic Range: 5-1200 m
• Detection Range:
  200 m* (Side Beam Best Performance)
  300 m* (Main Beam Directly Under Boat)
  *Depending on bottom, water and installation
• Beam Angle for Triple Beam Sounder: 20°-50° from right
  under
• Display Mode: Triple/Single Beam Sounder, Side Scan, Cross
  Section,3D Sounder History

Interface

• LAN: 1 port, Ethernet 10/100Base-TX
• External KP: 1 port (optional external KP kit
  required)

Environment

• Temperature: -15°C to + 55°C
• Relative humidity: 93% or less at +40°C
• Waterproofing: IP55

Power Supply

• DFF-3D: 12-24 VDC, 1.4-0.7 A
  Rectifier (PR-62, option): 100/110/220/230 VAC, 1 phase,
  50/60Hz

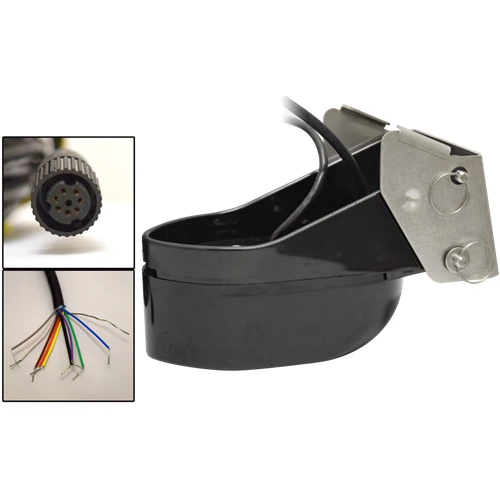

Furuno 165T-TM54 Multi-Beam Transom Mount Transducer
Features:

• Transom mount with stainless steel kick-up bracket
• DFF3D operating frequency: 165 kHz
• 2 x 10M Cables:
  Bare ended cable for DFF3D sonar
  7-pin connector for the motion
• Built-in motion sensor
• Built in temp sensor
