Furuno 525T-LTD/20 (Airmar B60) Thru-hull Transducer 10-Pin

Get a vertical beam without fairing

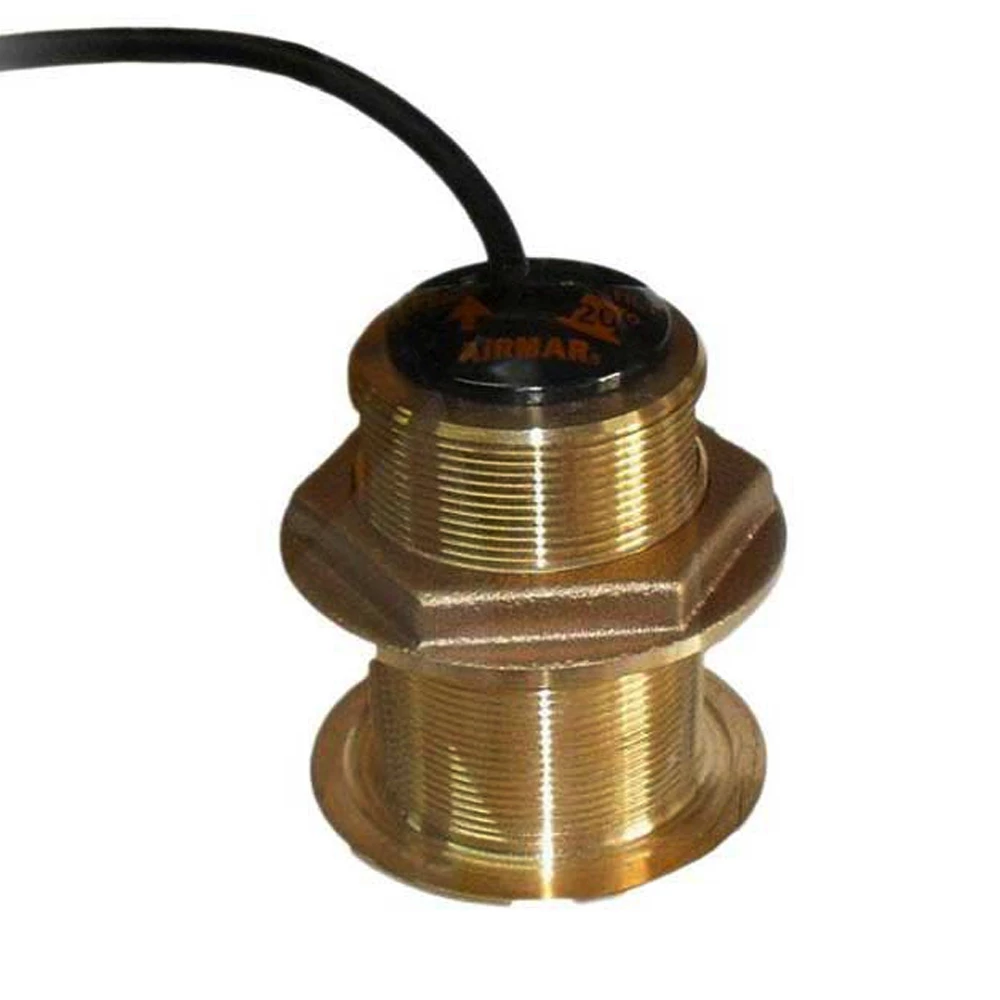

The Furuno 525T-LTD/20 Thru-hull Transducer
provides a vertical beam without a fairing. Inside the Airmar B60
style housing, the ceramic element is tilted for built-in, dead
rise compensation. With built-in deadrise compensation, performance
is never compromised. This unique design offers boaters advantages
similar to using a fairing block, but is installed nearly flush to
the hull. And what’s more the resulting vertical beam gives
excellent echo returns for more accurate depth readings. The
nearly-flush housing minimises drag with only 5 mm extending
outside of the hull.

Furuno 525T-LTD/20 Thru-hull Transducer
Features:

• Depth and temperature
• Mid-Performance
• Engineered for centre-console and trailered boats
• Low-profile protrusion below the hull – no effect on your boats
  running performance

Furuno 525T-LTD/20 Thru-hull Transducer
Specifications:

• Furuno model number: 525T-LTD/20
• Airmar B60 Housing Style Transducer
• Install type: Thru Hull
• Housing type: Bronze
• Power rating: 600 W
• Frequency: 50/200 kHz
• Includes 30ft cable with 10-pin connector

Compatible with:

• Furuno NavNet DDFF1 & BBFF1, GP1850, GP1650, GP7000F, FCV585,
  FCV620, 50/200 kHz, 600 W or 1 kW Dual Frequency, LS4100, LS6100
  300 W
• Furuno GP1600F, GP1610CF, LS4100, LS6100, 300W 50/200 kHz Dual
  Frequency
• Furuno FCV600L, 350W 50/200 kHz Dual Frequency
• Furuno LS6000, 300W 200 kHz (Single frequency echosounder using
  a dual frequency transducer)
• Furuno LS6000, 300W 50 kHz (Single frequency echosounder using
  a dual frequency transducer)
• Furuno GP1800F, 500W 200 kHz (Single frequency echosounder
  using a dual frequency transducer)
• Furuno GP1800F, 500W 50 kHz (Single frequency echosounder using
  a dual frequency transducer)
• Furuno FCV582L, GP1650DF, GP1650F, 600W 50/200 kHz Dual
  Frequency
• Furuno GP1810F 500W 50/200 kHz Dual Frequency
