Furuno 525T-LTD/12 (Airmar B60) Bronze Thru-hull Transducer 10-Pin

Fast and accurate thru-hull transducer

If a thru-hull flush-style transducer is called for, the Tilted
Element Furuno 525T-LTD/12 (Airmar B60) Thru-hull
Transducer will accommodate a deadrise angle between 8°
and 15°. This transducer compensates for deadrise by angling the
element inside the housing.

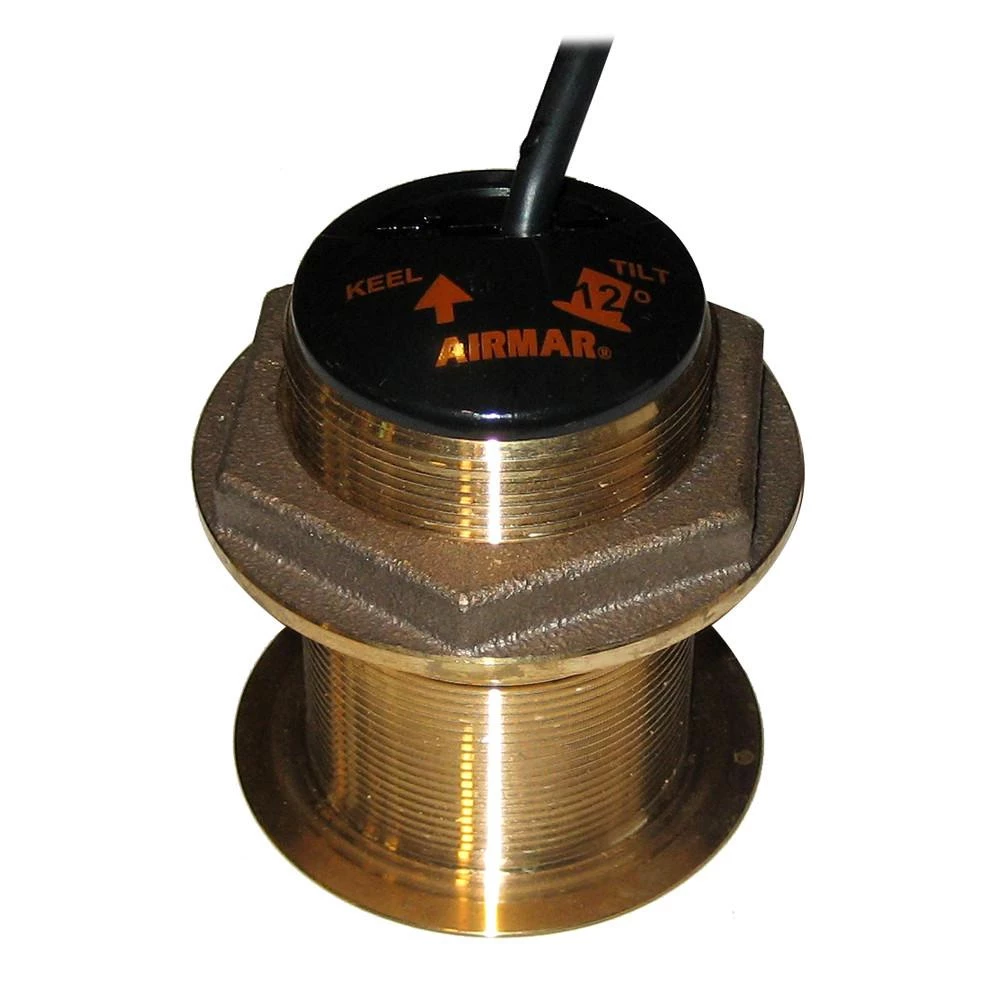

The transducer is labelled with an arrow on top of the housing that
should point towards the keel, whether it is installed to port or
starboard. This ensures that the tilted element within the housing
is given the correct orientation.

Furuno 525T-LTD/12 (Airmar B60) Thru-hull Transducer
Features:

• Furuno model number: 525T-LTD/12
• Airmar B60 Housing Style Transducer
• Bronze Thru Hull with Temperature
• Install type: Thru Hull
• Housing type: Bronze
• Power rating: 600W
• Frequency: 50/200kHz
• Usable shaft length 2.7in (68.5mm) less thickness of
  hull
• No external housing needed to compensate for deadrise, no
  effect on boat performance
• Ideal for centre-console and trailered boats
• Hole size: 2.375in (60mm)
• Housing protrudes 0.19in outside hull (5mm)
• Arrow on cap points toward keel to align during
  installation
• Beam 45° at 50 kHz, 12° at 200kHz
• Maximum depth 800-1200 ft @ 50kHz (235-353m)
• Maximum depth 400-700 ft @ 200kHz (118-206m)
• Includes 30ft cable with 10-pin connector

Furuno 525T-LTD/12 (Airmar B60) Bronze Thru-hull Transducer 10-Pin
Installation Instructions
