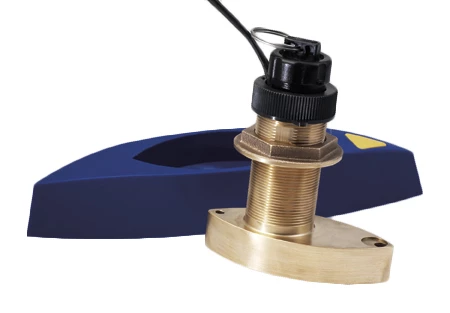

Furuno 525STID-MSD (Airmar B744V) Thru-hull Transducer With High-Speed Fairing

Triducer Multisensor – 3 sensors in one!

The Furuno 525STID-MSD (Airmar B744V) Thru-hull
Transducer provides three sensors – depth, speed, and
temperature all in one thru-hull housing! The B744V’s patented
valve assembly prevents water from rushing into the hull when the
insert is removed for cleaning or storage. The innovative housing
design allows the transducer to be fully recessed into its custom
high-performance Fairing. The end result is a streamlined
installation. At speeds above 30 knots (34 MPH), the Furuno
525STID-MSD will produce clear images and solid bottom tracking!
This transducer is ideal for inshore or coastal fishing in shallow
to medium depths, slow trolling, structure fishing, drifting, and
deep water lake fishing. This unit is ideal for all 600W
fishfinders and requires only a single hole in the hull.

Furuno 525STID-MSD (Airmar B744V) Thru-hull Transducer
Features:

• Furuno Model No. 525STID-MSD
• Airmar B744V Housing Style Transducer
• Function: Speed/Temperature
• Material: Bronze
• Frequency: 50/200kHz
• Cone: 45° (50 kHz) / 12° (200 kHz)
• Power: 600W RMS
• Connector: 10-pin
• Mount: thru-hull
• Connector: 10-pin
• Hull deadrise: up to 24°
• Depth range: 800 – 1200 ft. (50 kHz) / 400 – 700 ft. (200
  kHz)
• Speed operating range: 1 – 45 kts
• Compatible hull materials: fibreglass or wood
• Hole diameter for installation: 2in
• Dimensions including fairing (LxWxH): 13.73in x 3.05in x
  6.57in

Furuno 525STID-MSD (Airmar B744V) Thru-hull Transducer with
High-Speed Fairing Installation Instructions
