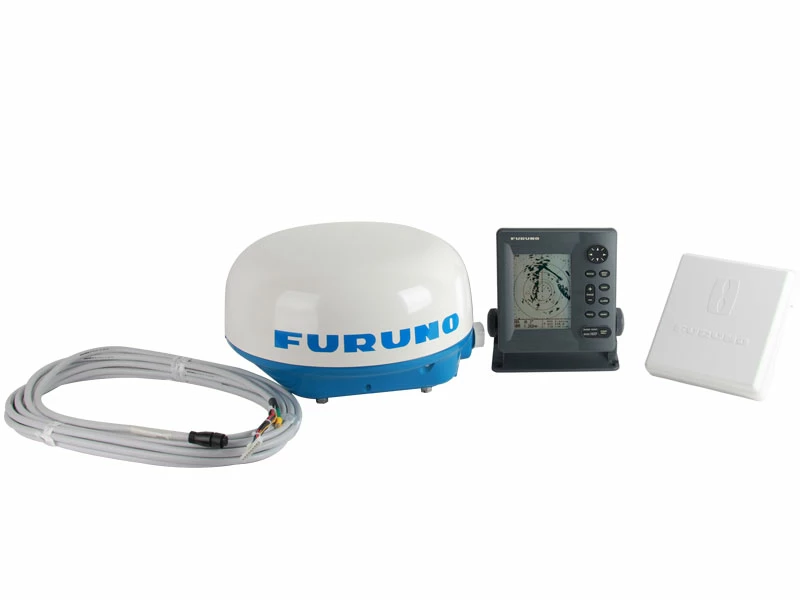

Furuno 1623 Radar 2.2kW

Powerful Radar suitable for small and large boats

The Furuno 1623 Radar 2.2kW replaces the very
popular Model 1622, it incorporates a powerful 2.2kW transmitter
with 13 range scales up to 16 nautical miles. Yet it will let you
zoom down to 1/8 nautical miles for tight navigation in harbours or
inlets. The hardware interface of the Furuno 1623 has been
simplified to resemble and operate much like the popular Furuno
NavNet Series.

This radar uses a 6’’ Silver Bright, slim-line LCD display, which
enhances the display so that you can view it clearly in direct
sunlight. It also has a reverse video feature for effective use at
night. This packages also features an optimized lightweight 15’’
Radome antenna making it suitable for boats as small as 17 feet.
Whether you want to chase down work ups or navigate your way in
dark conditions the Furuno 1623 Radar 2.2KW is up
to the task.

Furuno 1623 Radar 2.2kW Features:

• Waterproof, 6 Inch Silver Bright Monochrome LCD
  Display
• 13 User Selectable Range Scales from 1/8 to 16 N.M.
• Ergonomic design with predictable menu
• Display Resolution of 240(H) X 320(V) Dots
• Targets Displayed in up to 4 Levels of Gray Tones
• 2.2 Kilowatt Transmitter Unit
• Tri-speed 15″ radome antenna, increases RPM at short ranges for
  better target accuracy
• 3 Transmitter Pulse lengths and Repetition Rates
• Linear Receiver with 10 dB Noise Figure
• Automatic Receiver Tuning
• Automatic or Manual Sea-Clutter (STC) Adjustment
• Automatic or Manual Receiver Gain Adjustment
• Sector Blanking
• Rain Clutter (FTC) Control
• Echo Stretch and Interference Rejection Modes
• Watchman Mode to control the Radar system for Vessel
  Safety
• Reverse Video Display (White Targets and Marks on a Black
  Background)
• Full Screen Navigation Data Display in the Standby
  Mode
• Omni Pad Control for rapid Cursor and Menu Operation
• Picture Off-Centre Shift
• Electronic Bearing Line and Variable Range Marker
• Target or Echo Trails with Selectable Time Intervals
• Waypoint Lollipop On-Screen to aid in Vessel
  Navigation
• Adjustable Duplex (In or Out) Radar Guard Zone Alarm
• TLL (Target Lat/Lon) output for use with plotter (must accept
  TLL sentence info)
• Time offset adjustment
• User programmable Nav Data Screens
• Ability to connect BBWGPS GPS/WAAS receiver
• Power Requirements: 12 or 24 VDC Only, 36 Watts
• Power Requirements on Standby Mode: Approximately 8 Watts
